Checking Battery Status

Charging Status

Once the battery charging starts, the Dot LED indicates the charging status.

Dot LED

LED Status / Battery Status


Turns on green for 15 seconds. / Charging is complete.

Turns on in green. / The battery level is above 70 %. / Charging is in progress.


Turns on in amber. / The battery level is between 20~70 %. / Charging is in progress.


Turns on in red. / The battery level is below 20 %. / Charging is in progress.


129418.png Note
  • Playing tracks while charging may lengthen the charging time.
  • When the speaker’s battery is fully charged with the power off, the Dot LED lights up green for 15 seconds and then off.
  • When connecting to Party Link, the Party Link connection status indicator takes precedence over the battery indicator.
  • If you charge the speaker while it is powered off, the Dot LED may light up late depending on the adapter.


> CAUTION
  • Charge the battery at an ambient temperature of 5 °C to 35 °C. When the battery is out of the chargeable temperature range, the Dot LED alternates between red and amber, and charging stops.
  • If you charge while using the speaker, the battery temperature may become high and charging may stop. In this case, turn off the power and charge the speaker.

Use Status

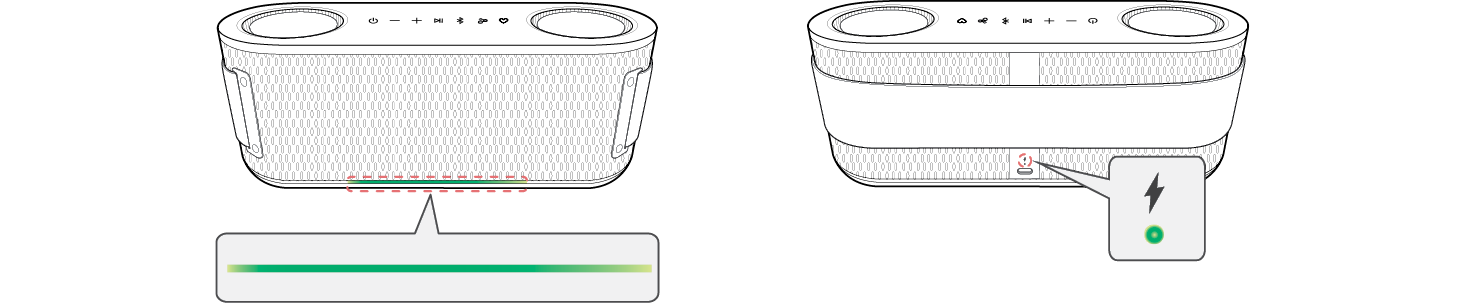

When you turn on the speaker or press and hold the Power139016.png button for 2 seconds, the Dot LED and the lighting Indicator are turned on for 3 seconds according to the battery status.



When the power cable is not connected (Battery mode)

Lighting Indicator

Indicator Status / Battery Status


Turns on green for 3 seconds. / The battery level is above 70 %.


Turns on amber for 3 seconds. / The battery level is between 20~70 %.


Turns on red for 3 seconds. You can hear a notification sound once. / The battery level is below 20 %.


Turns on in light red for 3 seconds. You can hear a notification sound once. / The battery level is below 10 %, and the battery needs to be charged.

Dot LED

LED Status / Battery Status


Turns on green for 3 seconds. / The battery level is above 70 %.


Turns on amber for 3 seconds. / The battery level is between 20~70 %.


It blinks red continuously. You can hear a notification sound once. / The battery level is below 20 %.

It blinks red continuously. You can hear a notification sound once. / The battery level is below 10 %, and the battery needs to be charged.


129396.png Note

When the amount of battery decreases, the length of the lighting Indicator is also shortended.

When the power cable is connected

Lighting Indicator

Indicator Status / Battery Status

143013.png 143005.png

It blinks green for 3 seconds. / The battery level is above 70 %.

142993.png 142985.png

It blinks amber for 3 seconds. / The battery level is between 20~70 %.

142977.png 142969.png

It blinks red for 3 seconds. / The battery level is below 20 %.

142960.png 142950.png

It blinks alternately light red and red for 3 seconds. / The battery level is below 10 %, and the battery needs to be charged.

Dot LED

LED Status / Battery Status


Turns on in white. / Charging is complete.

(When you press and hold the Power139763.png button for 2 seconds, turns on green for 3 seconds.)


Turns on in green. / The battery level is above 70 %.


Turns on in amber. / The battery level is between 20~70 %.


Turns on in red. / The battery level is below 20 %.


139366.png Note

When the amount of battery decreases, the length of the lighting Indicator is also shortended.
