Portable Bluetooth Speaker
Portable Bluetooth Speaker Quick Guide

Sound Bar Quick Guide

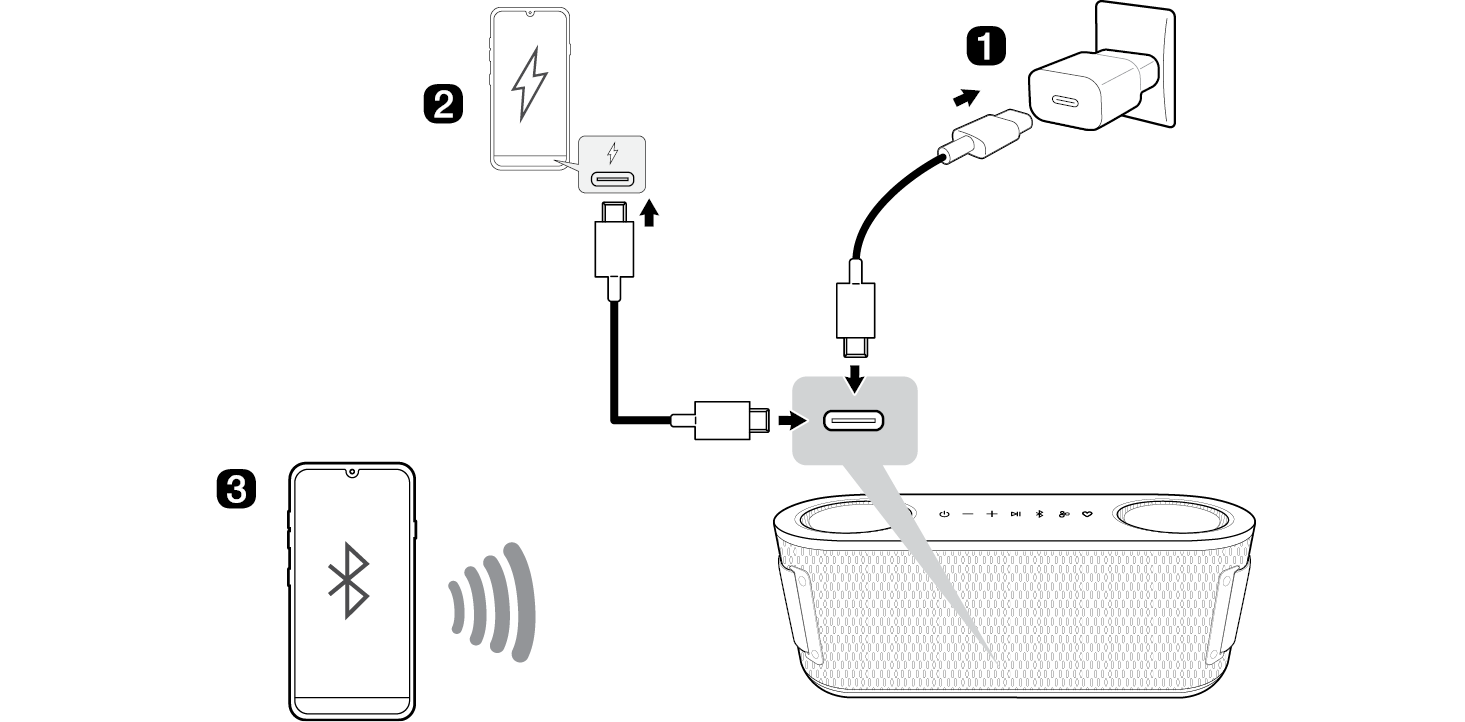

Connecting and Using the Speaker



  1. a Charge the speaker before using it and connect the speaker to an AC adapter (not supplied).
  2. b Charging a smartphone ([ See “Charging a smartphone” on page 27.)
  3. A Press the Power143622.png button on the speaker to turn it on.
  4. B Connect the smartphone to the DC IN terminal via the USB cable. The smartphone starts to be charged.
  5. c Connect the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 14.)
  6. A Press the Power129959.png button on the speaker to turn it on. The lighting Indicator blinks.
  7. B Press the Settings128687.png button on the smartphone and select Bluetooth. Turn on the Bluetooth function. (Off128730.png > On128740.png)
  8. C Find “xboom Bounce” on the device list on the smartphone and connect to it. Once the smartphone is connected via Bluetooth, the lighting Indicator will turn on.
  9. D On the smartphone, play a music of your choice.
  10. d Connecting the LG ThinQ app ([ See “Installing app” on page 20.)
  11. A Find the LG ThinQ app on the Google Play or App Store and install it on your smartphone.
  12. B Run the LG ThinQ app and use more features. (EQ, Party Link, Lighting, Sleep Timer, Setting etc.)

Table of Contents

Portable Bluetooth Speaker Quick Guide

2 Connecting and Using the Speaker

Exploring the Product

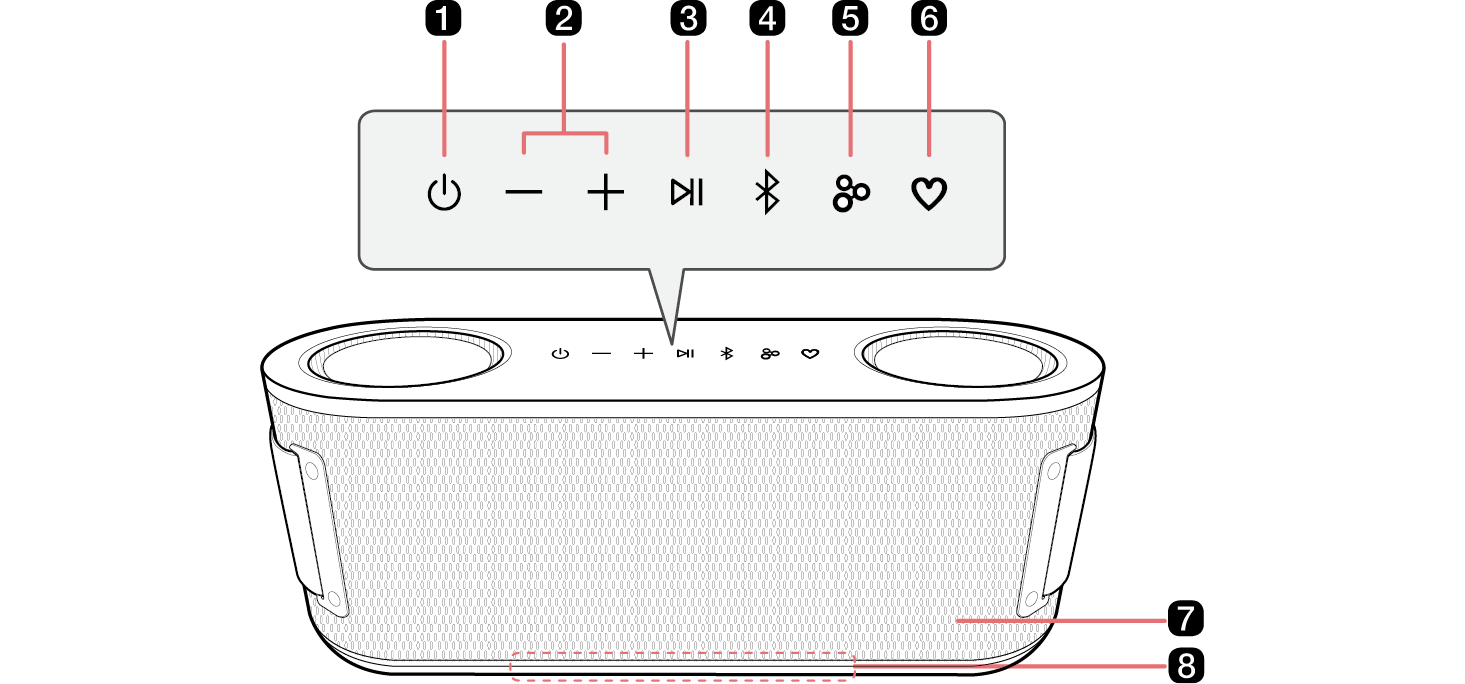

5 Top

7 Back

8 Carrying the unit

Charge

9 Charging the Battery

11 Checking Battery Status

Connecting to Bluetooth

14 Connecting Smartphone to the Speaker via Bluetooth

17 Connecting Two Bluetooth Devices to the Speaker

18 Talking on the Phone Hands-free

19 Using Voice command

Connecting to the LG ThinQ app

20 Installing app

21 Using MY function

22 Using the Party Link

26 Listening Auracast™ broadcast

Additional Functions

27 Charging a smartphone

28 Force the Speaker power off

28 Initializing the speaker

29 Using Auto Power Management

30 Using Power On via Bluetooth

30 Voice feedback function

Safety Precautions

31 Safety and Regulatory

34 Prevention of product misuse

Before Reporting Product Malfunction

38 Troubleshooting

Appendix

39 Specifications

40 Registered Trademarks and Licenses

40 Open Source Software Notice Information

41 Handling the Product

Exploring the Product
