Product
> Exploring the Product > Back & Side

Back & Side - LG xboom Stage501 Portable Bluetooth Speaker

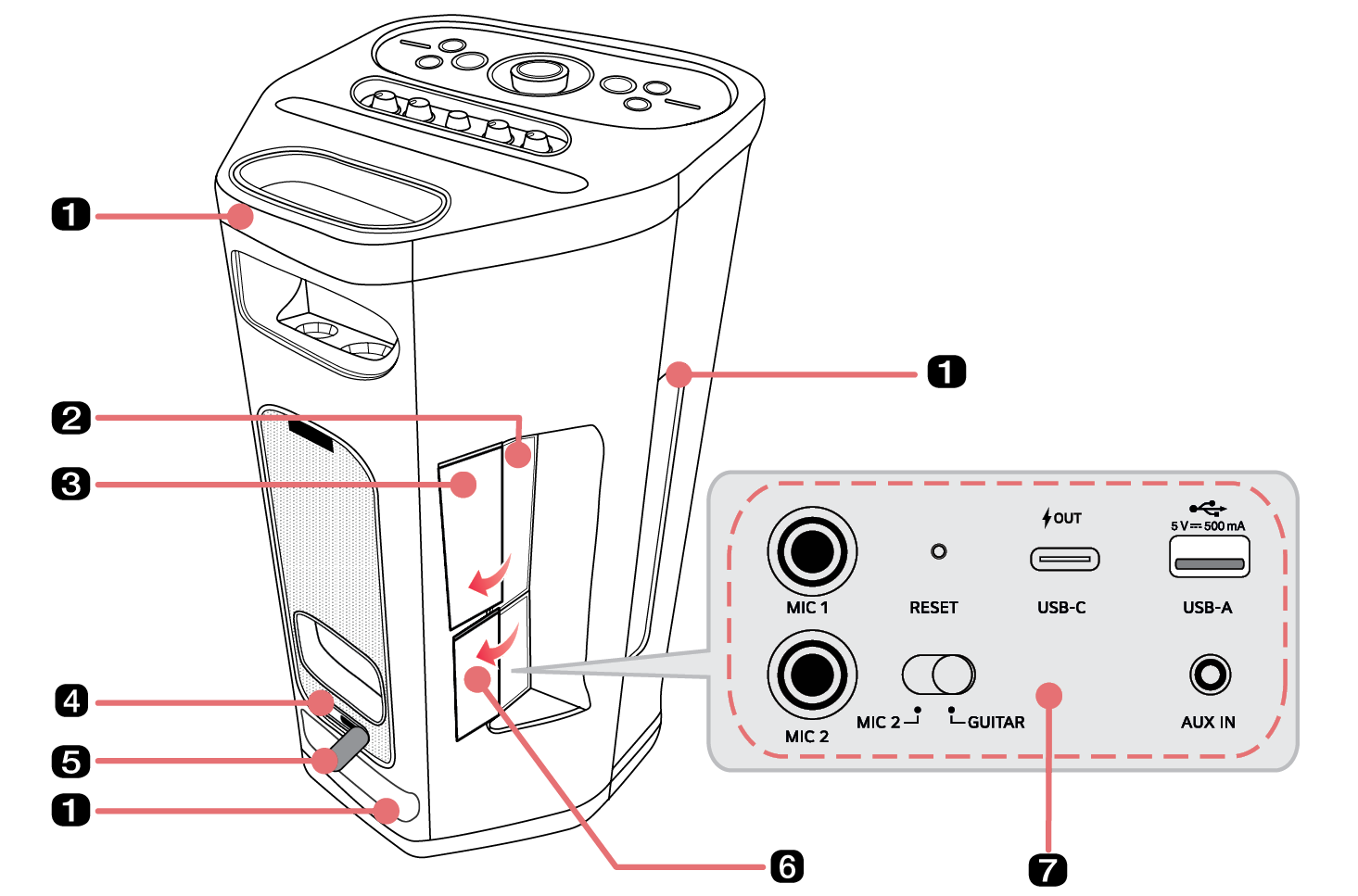

2026 LG XBOOM STAGE501 Portable Bluetooth Speaker Product Back and Side

a

Handle

Use it when carrying the product.

b

Battery

If you want to use it without a power cord, charge it sufficiently before use.

Discharged batteries can be replaced by purchasing new one.

c

Battery cover

Make sure to fully close the cover after use.

  • • Ingress Protection: IPX4
  • - Liquid: Protected against splashing water.

d

Power input

Plug in the power cord to use the product.

You can connect the power cord to charge the battery of the product.

e

Power supply cover

Close the cover when using only the battery without connecting the power cord.

Make sure to fully close the cover after use.

  • • Ingress Protection: IPX4
  • - Liquid: Protected against splashing water.

f

Jack cover

Make sure to fully close the cover after use.

  • • Ingress Protection: IPX4
  • - Liquid: Protected against splashing water.

g

MIC 1 jack

Connect a microphone to the MIC jack.

RESET

When the product does not function properly, use a sharp object such as a pin to press the hole.

USB Audio Port

  • • Plug in a USB (Type-C) cable to charge the external devices.
  • • Plug in a USB (Type-C) audio cable to connect the product to your PC and play music through it.

USB port

Plug in a USB storage device to enjoy music with the product.

MIC 2 / GUITAR jack

Connect a microphone or guitar to the MIC 2 / GUITAR jack.

MIC 2 / GUITAR Switch

You can change to the guitar function.

AUX IN

You can connect the product to a portable external device with a 3.5 mm stereo cable and start enjoying music.

Note Above line 1

> CAUTION
  • • Be careful not to drop the product when you carry it.
  • • Disconnect the connected cable before carrying the product.
  • • Do not step or sit on the product. Otherwise this product may fall down and cause personal injury.
  • • Be careful that the product does not fall. Otherwise it may result in malfunction and cause personal injury and/ or property damage.
  • • Be careful not to expose the product to sunlight for a long time to prevent discoloration.
  • • Be careful not to drop the speaker. Mechanical shock may cause deterioration of water-resistant performance.


Note icon Note

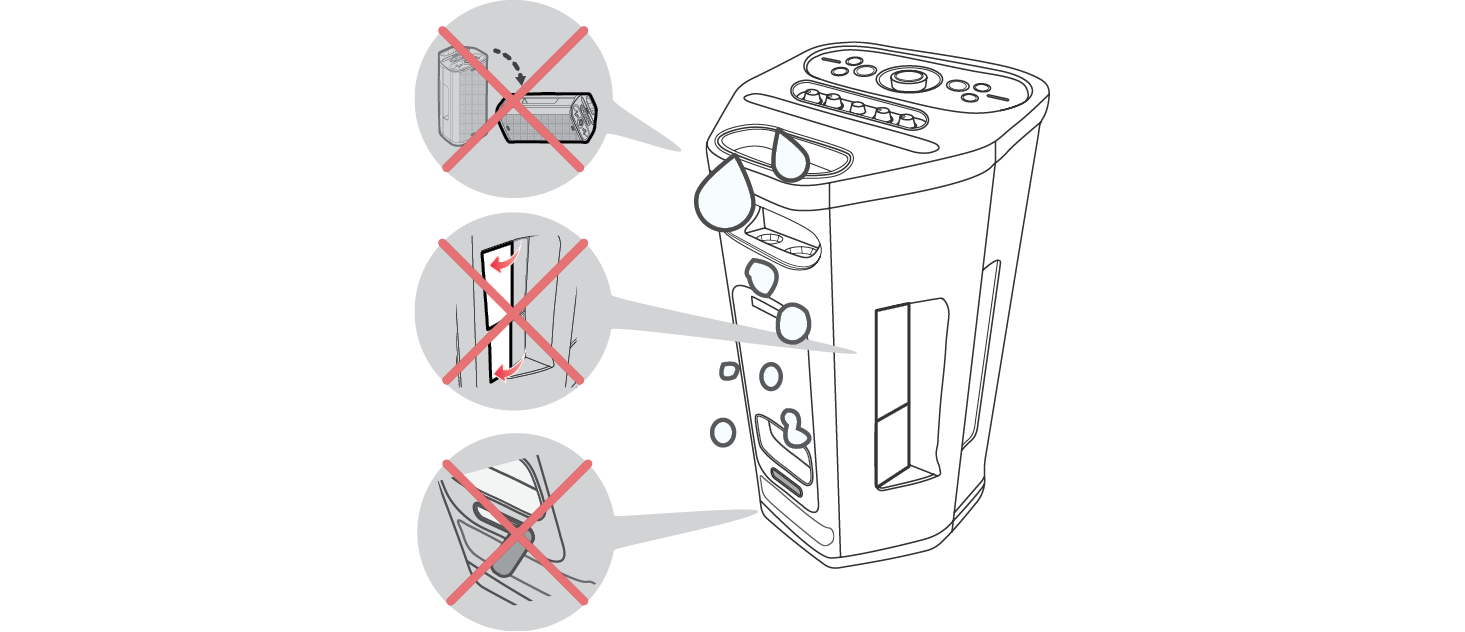

The water-resistant function is limited in the following cases. Do not use in Horizontal mode or with the cover open.

2026 LG XBOOM STAGE501 Portable Bluetooth Speaker Product Water resistant function
