Sound Bar Quick Guide

Connecting the product to a USB storage device

You can enjoy sound by connecting a USB storage device with music files to the speaker.

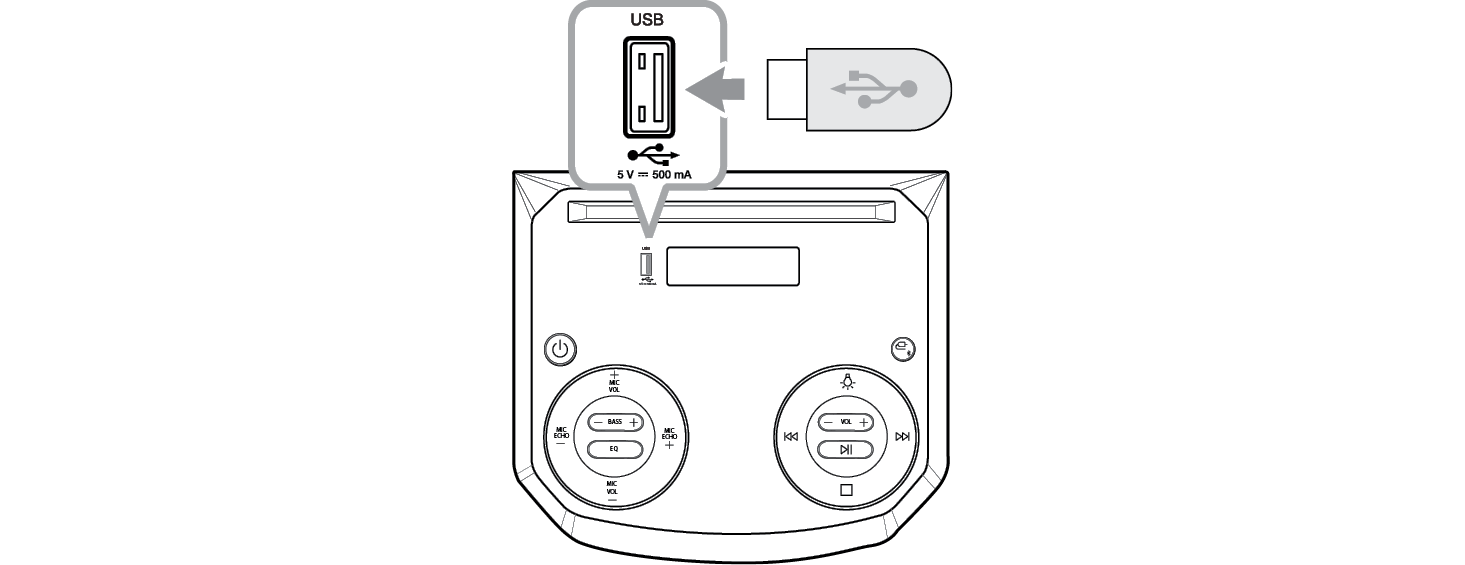

1. a Plug the USB storage into the USB terminal of the speaker.

• The speaker cannot play any devices connected with a USB storage device hub or a USB storage device cable.
• The speaker cannot be connected to a USB storage device, USB type MP3 player or card reader that requires a separate device drive to be installed.

1. b Press the Power button to the turn on the speaker.

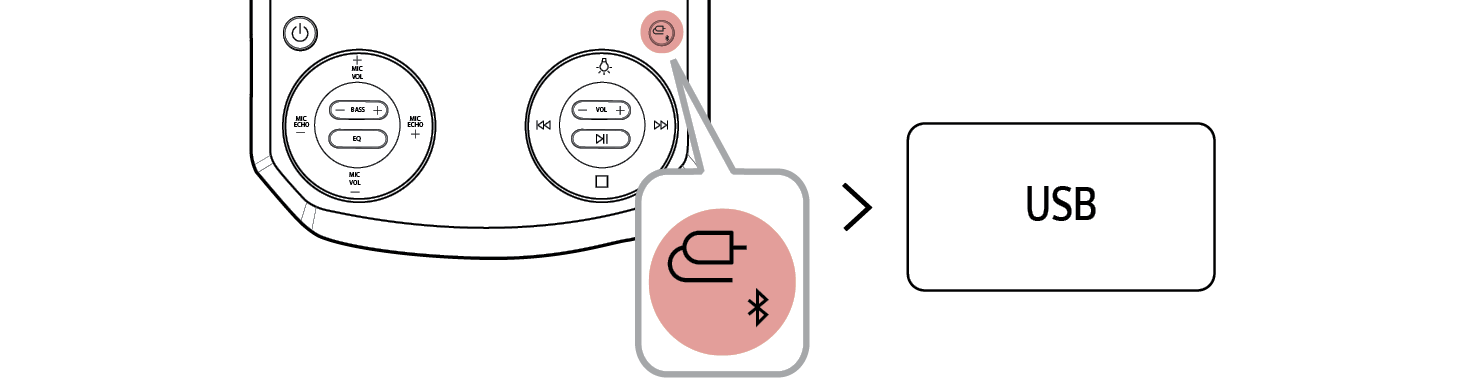

2. c Press the Function button repeatedly until “USB” appears on the status display.

1. d Press the Play/Pause button to enjoy the music.

Note

USB devices with large storage volume can take several minutes or more to browse files. LG Electronics is not responsible for any data loss. Please always back up the data to minimise damage caused by data loss. Only FAT16/FAT32 formats are supported. exFAT/NTFS format is not supported. Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

• USB flash device
• USB 2.0 or USB 1.1

This product may not recognise some USB storage devices.

Playable file specifications

File extension	Sampling frequency / Bitrate
MP3	32 kHz - 48 kHz / 32 kbps - 320 kbps

• Number of playable files: 999 or less
• Maximum number of directories: 99 or less
• The product cannot play the files protected by DRM (Digital Rights Management).
• The product cannot play video files in a USB storage device.
