Sound Bar Quick Guide

Connecting to a USB Storage Device

Enjoy high-quality sound by connecting a USB storage device containing music files to the product.

Connecting the product to a USB storage device

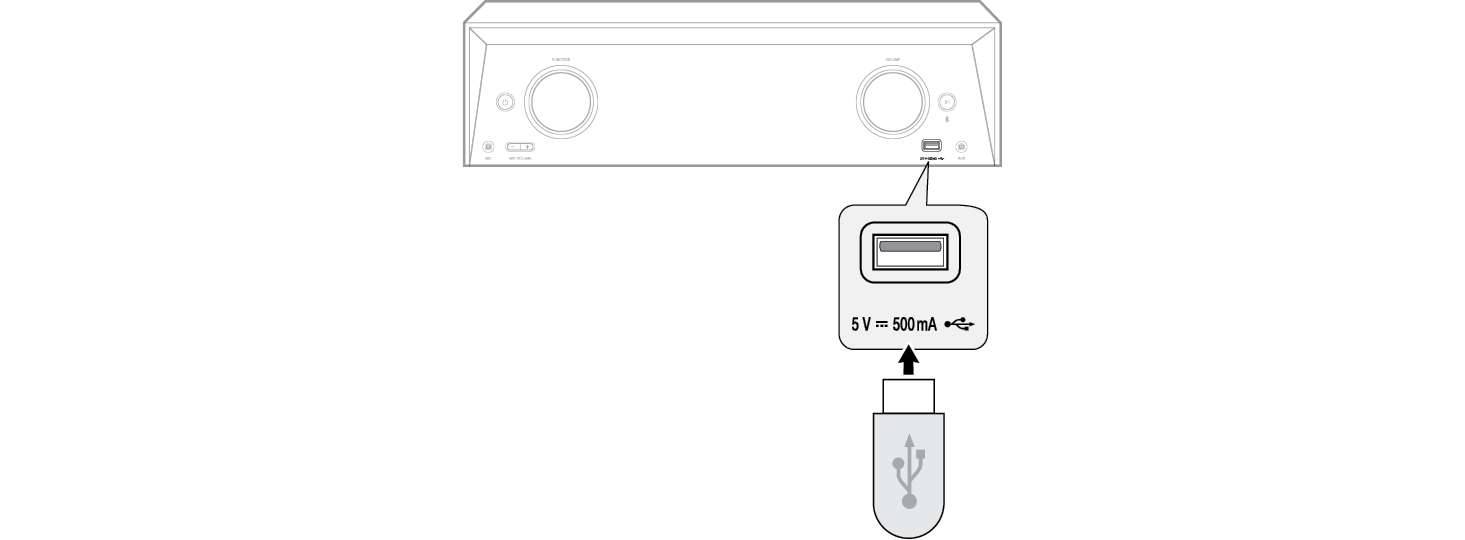

1. a Plug the USB storage device into the USB port on the front of the receiver.

• The product cannot play any devices connected via a USB storage device hub or a USB storage device cable.
• The product cannot be connected to any USB storage device, USB type MP3 player, or card reader that requires a separate device drive to be installed.

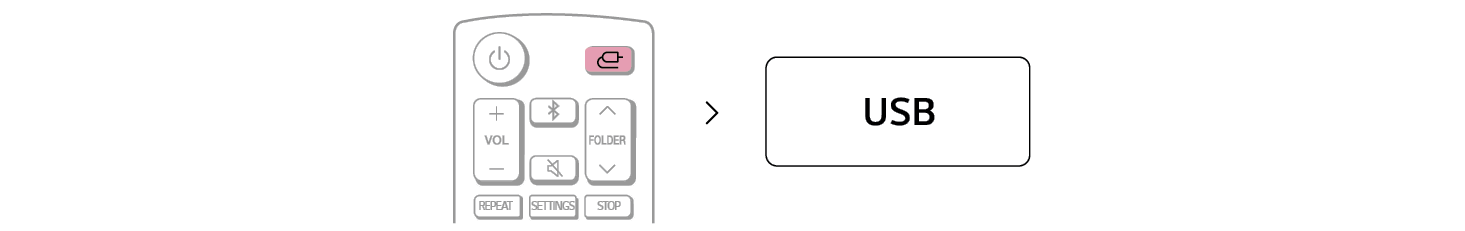

1. b Press the Function button repeatedly until “USB” appears on the status display.

1. c When the product is properly connected to a USB storage device, the number of music files in the USB device will appear on the status display. Press the OK (Play/Pause) button to enjoy the music.

Note

It is recommended that you purchase a separate USB gender changer to make it easier to plug in and out USB storage devices. Purchase a USB gender changer with a USB 2.0 extension cable. USB devices with a large storage volume may take several minutes to browse through files. LG Electronics is not responsible for any data loss. Please always back up the data on your USB storage device to minimise damage caused by data loss. Only FAT16/FAT32/NTFS formats are supported. exFAT format is not supported. Only FAT16/FAT32 formats are supported during USB recording. NTFS format is not supported during USB recording. Only FAT16/FAT32 formats are supported deleting a file/folder or format. NTFS format is not supported deleting a file/folder or format. Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

• MP3 player
• Flash MP3 player
• USB flash device
• USB 2.0

This product may not recognise some USB storage devices.

Playable file specifications

File extension	Sampling frequency / Bitrate
MP3	16 kHz - 48 kHz / 8 kbps - 320 kbps
WMA	16 kHz - 48 kHz / 5 kbps - 320 kbps

• Number of playable files: Up to 2,000
• Maximum number of directories: Up to 512
• This product cannot play files protected by DRM (Digital Rights Management).
• This product cannot play video files from a USB storage device.
