Installation

Sound Bar Quick Guide

Setting up the speakers

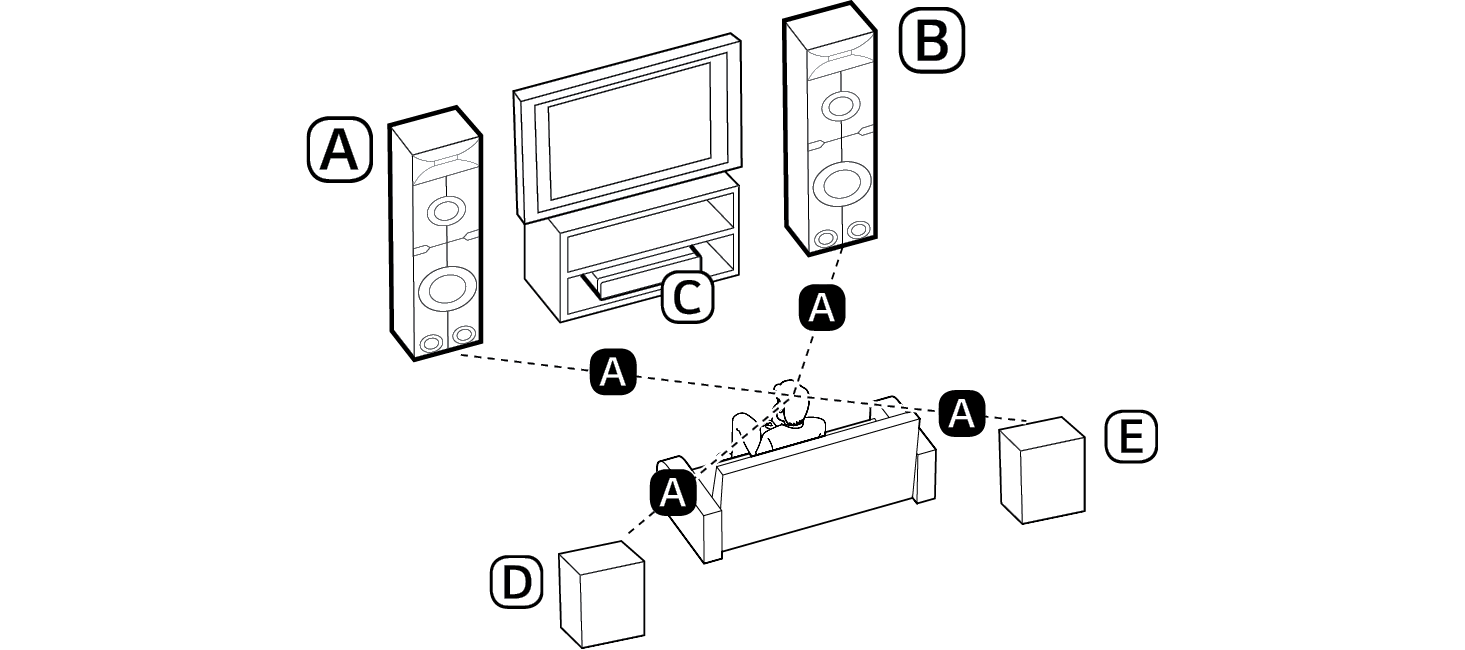

The following illustration shows an example of positioning the speakers. Note that the illustrations in these instructions differ from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (a).




144088.png Note
  • Speaker positions are as follows.

    A Front speaker with built in subwoofer (L)

    B Front speaker with built in subwoofer (R)

    C Receiver

    D Surround (Rear) speaker (L)

    E Surround (Rear) speaker (R)

  • Do not stack the speakers and be careful that the speaker should not fall down. Otherwise it may result in the speaker malfunction and causing personal injury and/or property damage.
  • Make sure to install the speaker with other people in order to prevent it from falling and causing injuries to the installer.
  • Please ensure there are no obstacles between the receiver and the speakers.
