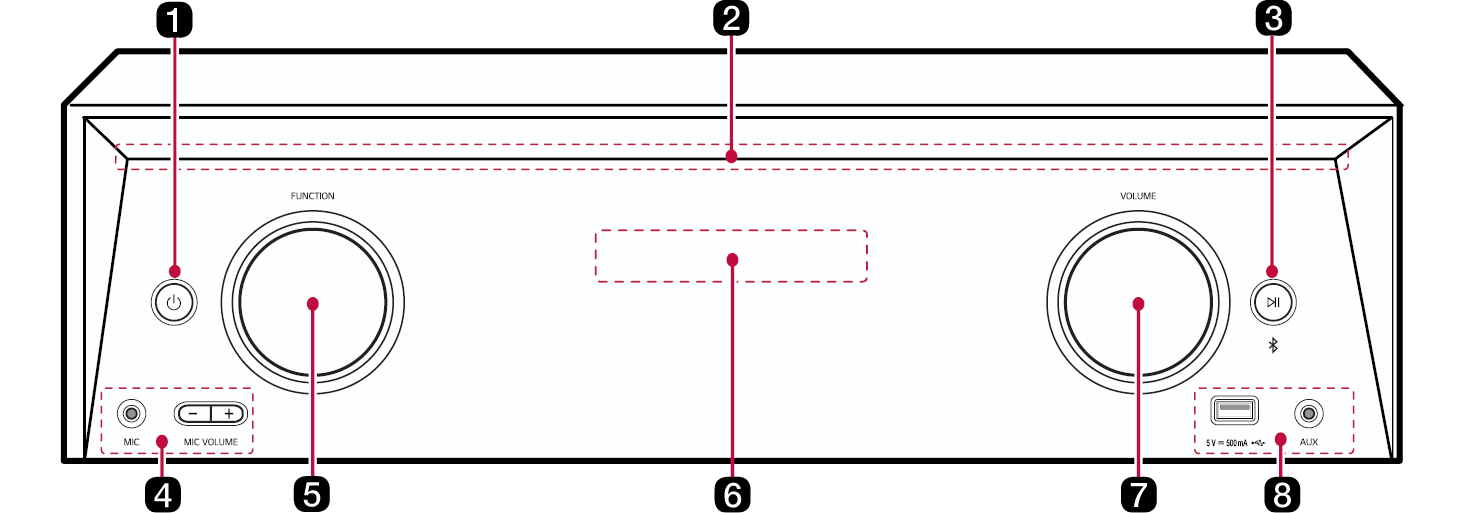

Power

This turns the product on/off.

LIGHTING

Enjoy a light on the front of the receiver..

Play/Pause

Starts or pauses playback

Press the button to select Mono/Stereo in FM mode.

Bluetooth pair

Press and hold the button for 3 seconds or longer.

It allows you to pair your Bluetooth device such as a smartphone to this product for three minutes. ([ See “Connecting via Bluetooth” on page 42.)

MIC

Connect a microphone to the MIC jack.

MIC Volume

This adjusts the Microphone sound volume with levels 0 to 15.

Function

Turns the knob to the right or left repeatedly to select the desired function or input mode.

• OPT/HDMI ARC: Connects the product to a TV that supports an optical cable, ARC or LG Sound Sync
• BT: Connects the product via Bluetooth.
• FM: You can listen to FM radio.
• USB: Connects the product to a USB storage device.
• AUX: Connects a portable device (MP3 player, etc).
• HDMI1/2/3: Connects the product to an HDMI input port.

Status display

Options such as input mode and volume are displayed in text.

• If there is no active input for 15 seconds, the status display will automatically dim. When you press the button, the status display will light up again. You can change the display setting.([ See “DISPLAY menu” on page 39.)

Remote Control Receiver

• This receives wireless signals from the remote control.

VOLUME (Volume knob)

Turns the knob to the right or left repeatedly to adjusts the speaker volume with levels 0 to 100.

USB port

Plug in a USB storage device to play music with the product.

AUX

Connects a portable device (MP3 player, etc) to AUX connector.
