Sound Bar Quick Guide

Setting up surround sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects, you can hear the following difference.

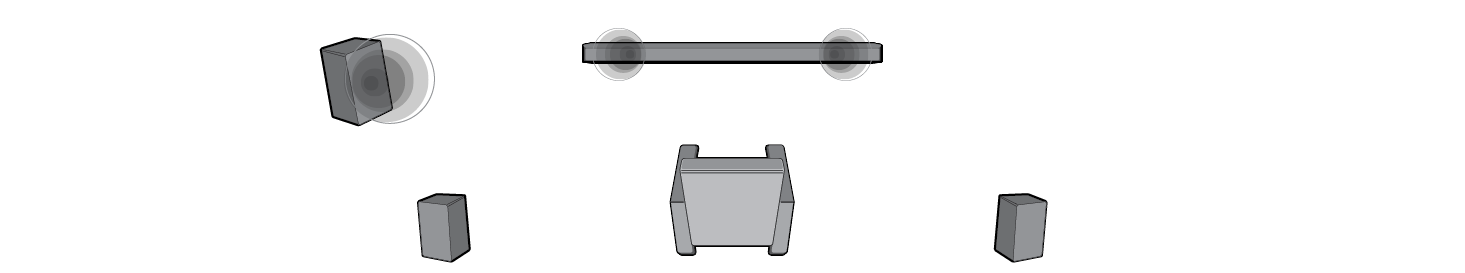

When the surround sound is off

When the surround sound is on

Note

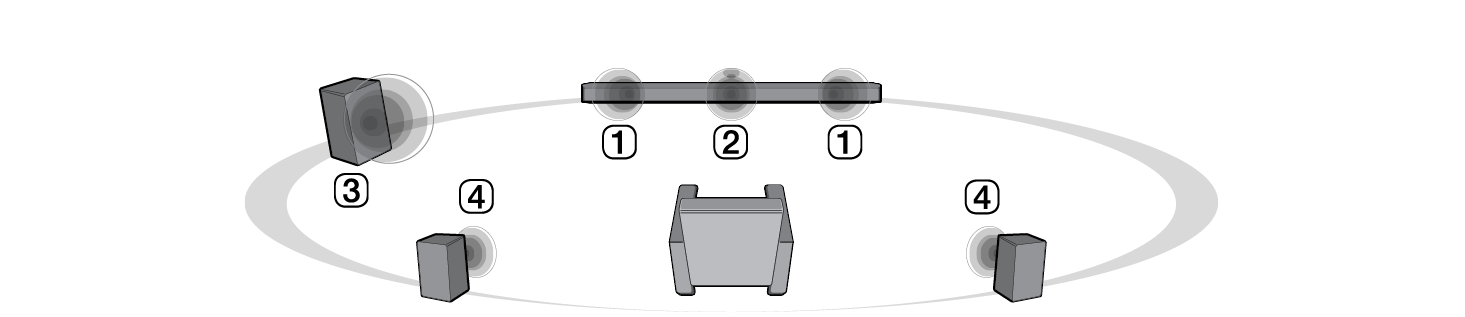

Speaker positions are as follows. A Front speakers B Center speaker C Subwoofer D Rear speakers

Turning surround sound on/off

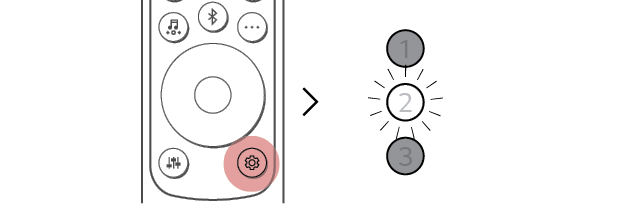

1. a Press Settings button. LED2 blinks white.

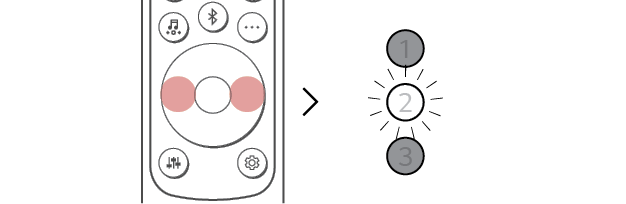

1. b While the LED2 is blinking, press Left/Right button to choose the surround sound setting.

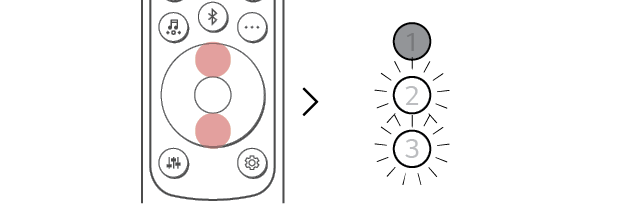

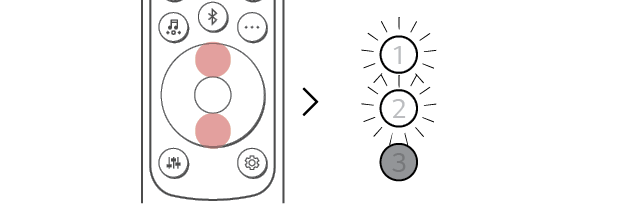

1. c While the LED2 is blinking, press Up/Down button. If the surround sound setting is on, LED1 blinks white. If the surround setting is off, LED3 blinks white.

(On)

(Off)

Speaker sound based on input channels

Sound Effects
Input	Output
	Rear speakers not connected	Rear speakers connected
AI SOUND PRO Sound customized with artificial intelligence
2.0 channels
5.1 channels
STANDARD You can enjoy optimized sound
2.0 channels
5.1 channels
MUSIC You can enjoy better sound optimized for music
2.0 channels
5.1 channels
CINEMA Cinematic 3D sound
2.0 channels
5.1 channels
CLEAR VOICE PRO Improves the clarity of voices
2.0 channels
5.1 channels
SPORTS Realistic sound like in a stadium
2.0 channels
5.1 channels
GAME Optimized sound for game
2.0 channels
5.1 channels
BASS BLAST (BASS BLAST+) Sound with reinforced bass
2.0 channels
5.1 channels
