Wireless Soundbar
Soundbar Quick Guide

Sound Bar Quick Guide

Installing and using the Product

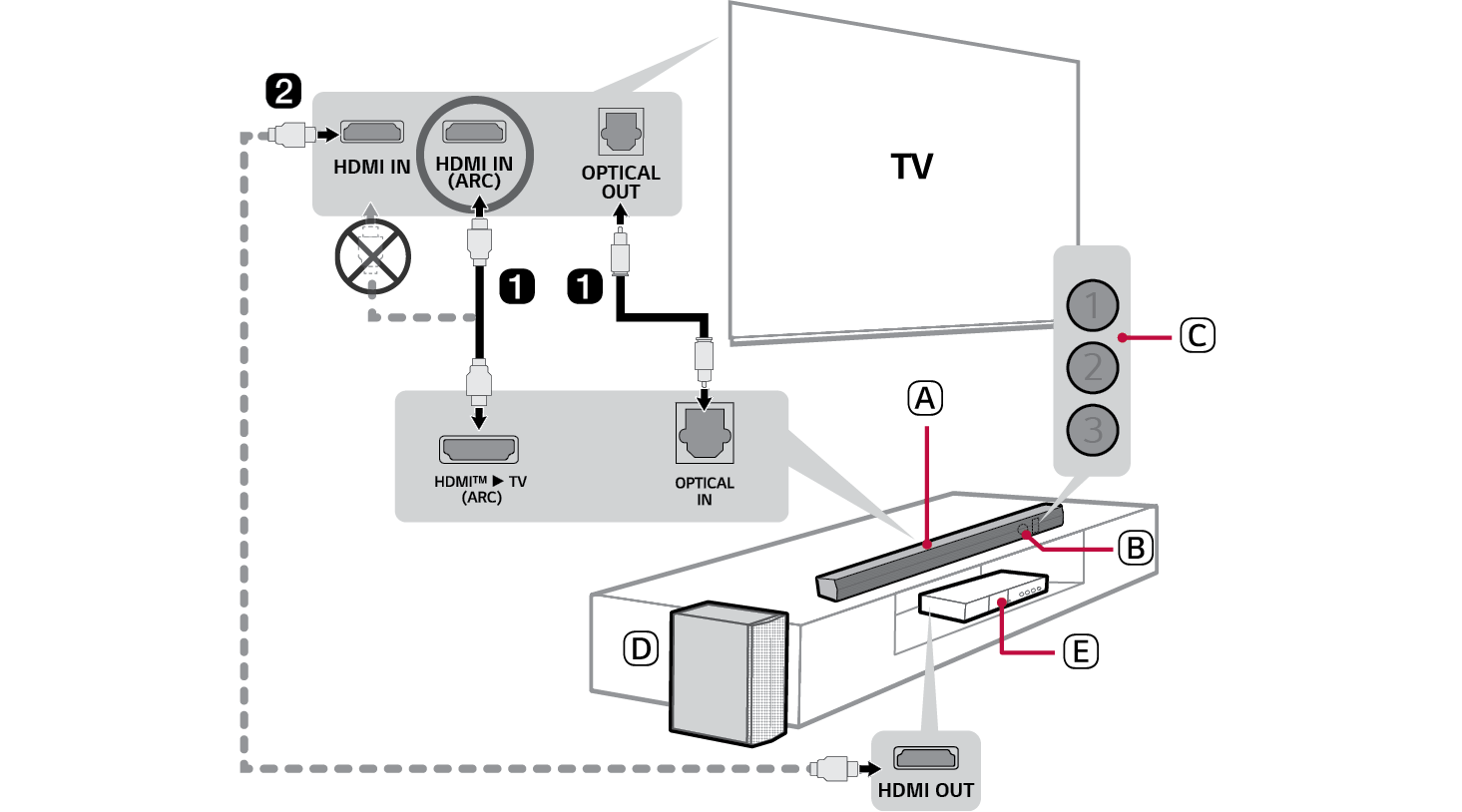

  1. a Connect the soundbar to your TV via an optical cable or an HDMI cable.



  1. A Soundbar
  2. B Remote Control Receiver
  3. C Status LED (ABC)
  4. D Wireless Subwoofer - Install it close to the soundbar.
  5. E External Device - (Blu-ray player, game console, etc.)
  6. b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the TV via an HDMI cable.
  7. c Connect to power in the following order: wireless subwoofer [ soundbar. Then, turn on the soundbar. When the connection is automatically established with the soundbar, the LED on the wireless subwoofer will light up green. ([ See “Connecting the Product” on page 6.)
  8. d Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 34.)
  9. A Tap the Settings147141.png button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (147129.pngOff > 147124.pngOn)
  10. B Press the Bluetooth pair147117.png button. After a moment, LED1 and LED2 blink white.
  11. C Find and select the product on your smartphone. The product appears as “LG NS60T(XX)”.
  12. D When the product is connected to your smartphone via Bluetooth, LED1 and LED2 light up white.
  13. e Connecting to the LG ThinQ app ([ See “Connecting with the product via LG ThinQ app” on page 37.)
  14. A Find and install the LG ThinQ app on Google Play or App Store from your smartphone.
  15. B You can get more information regarding its use by selecting [Help] in [Setting].

Manually connecting the soundbar to the wireless subwoofer ([ See “Connecting the wireless subwoofer manually” on page 8.)

If you see a red LED on the wireless subwoofer, it means that the soundbar is not connected to the subwoofer. If this is the case, connect them in the following order.

  1. A Press the Power147242.png button on the soundbar to turn it off.
  2. B Press the PAIRING button on the back of the wireless subwoofer. Check if LED blinks green.
  • If you still see a red LED on the wireless subwoofer, press and hold the button on the back of the subwoofer again.
  1. C Press the Power147234.png button on the soundbar to turn it on.
  2. D When the connection is established, you will see a green LED light on the wireless subwoofer light up.

Table of Contents

Soundbar Quick Guide

2 Installing and using the Product

Installation

6 Connecting the Product

Exploring the Product

13 Front

18 Back

19 Exploring Remote Control

Various settings for convenience

22 Convenient functions

23 How to change the settings

24 Sound tuning

25 Voice feedback function

Connecting to the TV

26 Connecting with an Optical Cable

28 Connecting via Bluetooth

29 Connecting with an HDMI Cable

Connecting to an External Device

31 Connecting with an HDMI Cable

33 Connecting with an Optical Cable

Using the Product as an Audio System

34 Connecting via Bluetooth

37 Connecting with the product via LG ThinQ app

37 Installing the LG ThinQ app and registering the product

Mounting the Product to a Wall

39 Checking before mounting to a wall

41 Mounting the Product to a Wall

Safety Precautions

43 Safety and Regulatory

46 Prevention of product misuse

Before Reporting Product Malfunction

50 Troubleshooting

Appendix

53 Specifications

55 Registered Trademarks and Licenses

56 Open Source Software Notice Information

57 Handling the Product
