Connecting and Using the Speaker - LG XBOOM GRAB

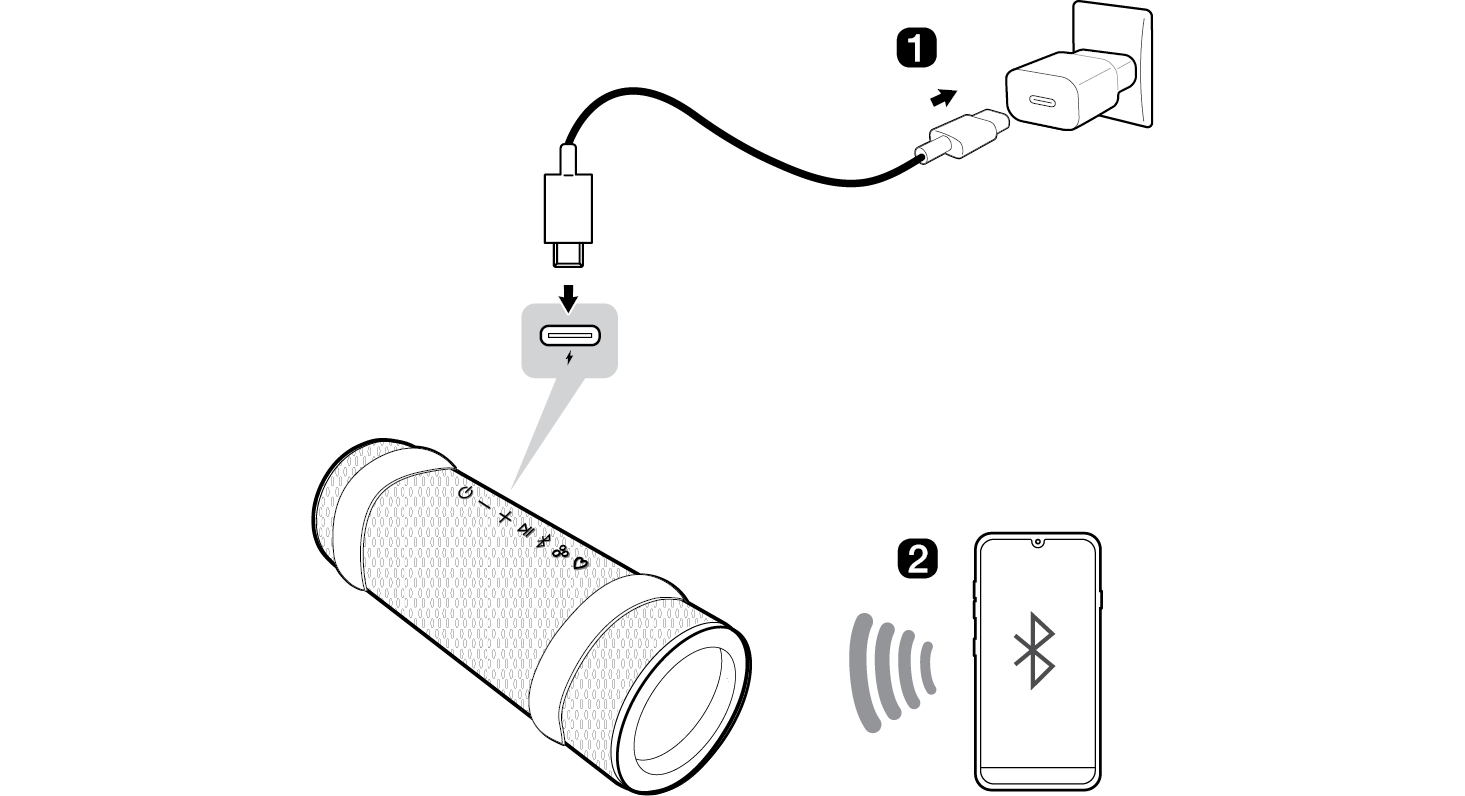

- a Charge the speaker before using it and connect the speaker to an AC adapter (not supplied).
- b Connect the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 14.)
-
A Press the Power
button on the speaker to turn it on. The lighting Indicator blinks. -
B Press the Settings
button on the smartphone and select Bluetooth. Turn on the Bluetooth function. (Off
> On
) - C Find “xboom Grab” on the device list on the smartphone and connect to it. Once the smartphone is connected via Bluetooth, the lighting Indicator will turn on.
- D On the smartphone, play a music of your choice.
- c Connecting the LG ThinQ app ([ See “Installing app” on page 21.)
- A Find the LG ThinQ app on the Google Play or App Store and install it on your smartphone.
- B Run the LG ThinQ app and use more features. (EQ, Party Link, Lighting, Sleep Timer, Setting etc.)
Table of Contents
Portable Bluetooth Speaker Quick Guide
2 Connecting and Using the Speaker
Exploring the Product

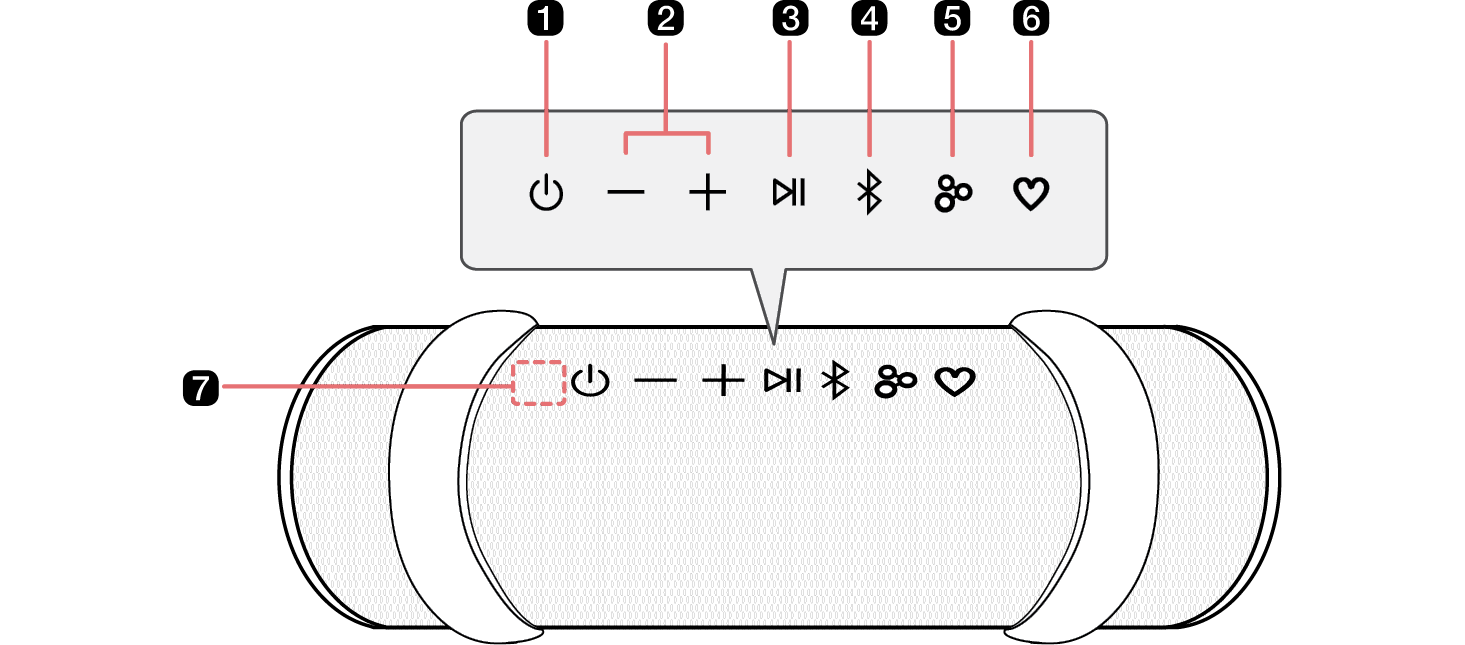

5 Top
7 Back
8 Carrying the unit
Charge
9 Charging the Battery
11 Checking Battery Status
Connecting to Bluetooth
14 Connecting Smartphone to the Speaker via Bluetooth
18 Connecting Two Bluetooth Devices to the Speaker
19 Talking on the Phone Hands-free
20 Using Voice command
Connecting to the LG ThinQ app
21 Installing app
22 Using MY function
23 Using the Party Link
27 Listening Auracast™ broadcast
Additional Functions
28 Force the Speaker power off
28 Initializing the speaker
29 Using Auto Power Management
30 Using Power On via Bluetooth
30 Voice feedback function
Safety Precautions
31 Safety and Regulatory
34 Prevention of product misuse
Before Reporting Product Malfunction
38 Troubleshooting
Appendix
39 Specifications
40 Registered Trademarks and Licenses
40 Open Source Software Notice Information
41 Handling the Product
Exploring the Product
