Sound Bar Quick Guide

Connecting with an HDMI Cable

You can transmit TV audio to the product by connecting the TV to the product with an HDMI cable. Add a variety of 3D effects to the original audio to fill the room with a deep, rich sound.

Watching TV after connecting with an HDMI cable

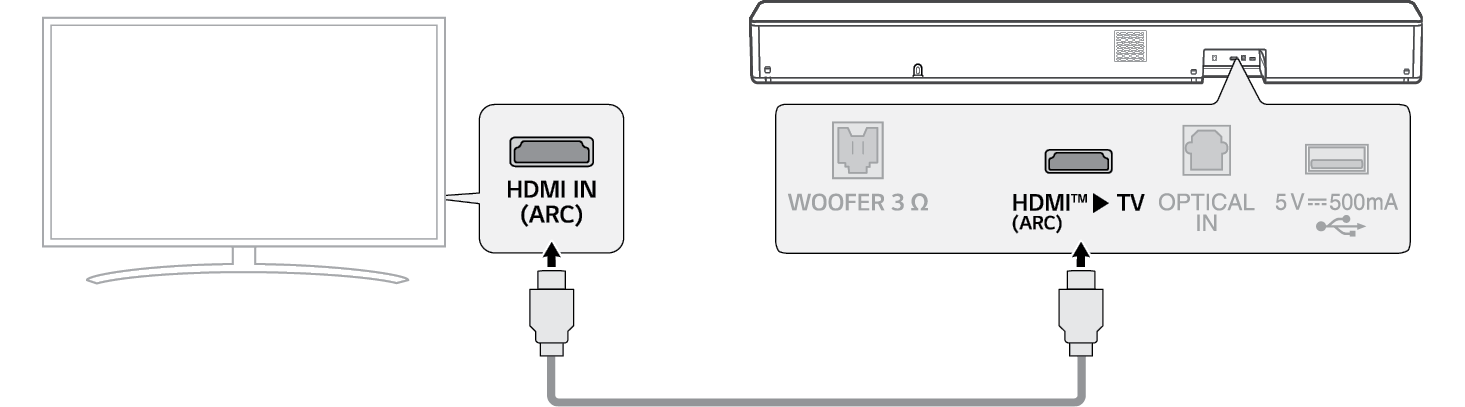

1. a Using the HDMI cable, connect the HDMI™ d TV (ARC) terminal on the back of the product to the HDMI IN (ARC) terminal on the TV as shown in the picture.

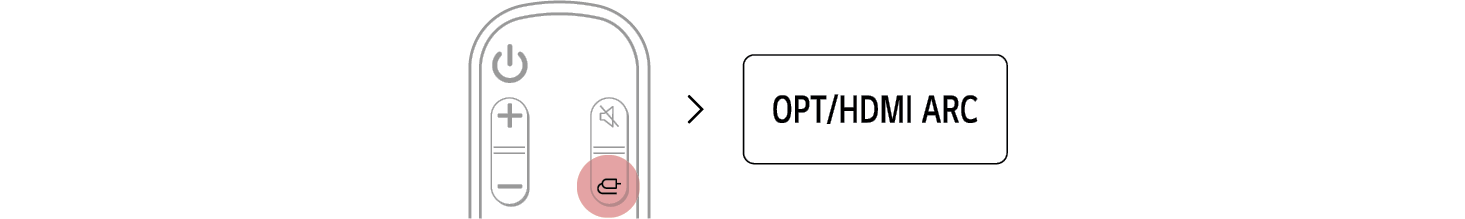

1. b Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.

1. c Press the Settings button on the TV remote control to enter the [Speaker] menu and set the output speaker to [HDMI ARC]. Settings and menu items may vary depending on the TV manufacturer.
2. d When the TV is properly connected to the product, “ARC” will appear on the status display.

Note

Make sure that your TV supports the ARC function before you press the Setting button on the TV remote control and turn on ARC. For more information on how to set the function, refer to the TV user manual as it may differ depending on the TV. Use a certified cable with the HDMI logo.

SIMPLINK

• SIMPLINK refers to the HDMI-CEC function that allows you to use a single TV remote control to easily operate an audio device or player connected to an LG TV via HDMI.
• Functions controllable with a SIMPLINK-compatible LG TV remote control: Power on/off, volume control, mute on/off, etc.
• For more information on how to set up SIMPLINK, consult your LG TV’s user manual.

Note

The SIMPLINK function may not work properly depending on the status of the product or other connected devices. HDMI-CEC features by TV manufacturer: LG SIMPLINK, Sony BRAVIA Sync/Link, Philips EasyLink, Samsung Anynet+, etc.

Using WOW Orchestra with LG TV

The combination of the LG soundbar and the LG TV gives you the best listening experience to output sound simultaneously through both of them.

This function is automatically activated when the soundbar is connected to the TV and you can choose it on the sound out menu on the TV.

Note

Available on some LG TV and soundbar models. It operates according to the audio codec supported by the TV. This function can only operate with an HDMI cable connection. The messages displayed on the TV may differ depending on the model. Refer to the TV's instruction manual for more details on settings.

Using PSW mode with WOW Orchestra

PSW (Personalized Sound Wizard) mode is a personalized sound mode provided by LG TV and can be enjoyed in the WOW Orchestra function.

With the personalized sound mode provided by LG TV, the user-selected sound source is analyzed with artificial intelligence deep learning technology to set it as the preferred optimal sound.

Note

Refer to the TV's instruction manual for more details on settings.
