Sound Bar Quick Guide

Installing and using the Product

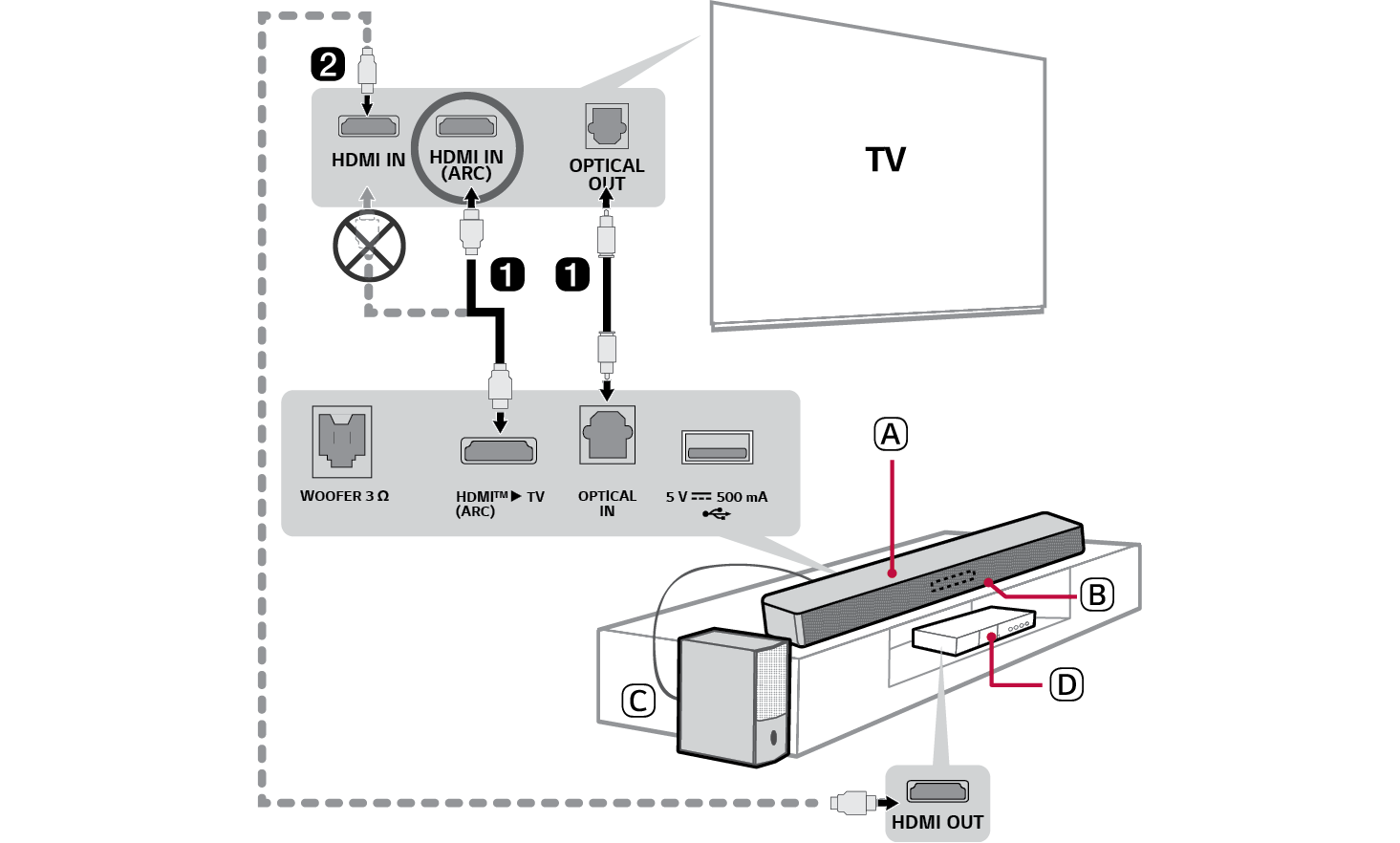

1. a Connect the soundbar to your TV via an optical cable or an HDMI cable.

1. A Soundbar
2. B Remote Control Receiver / Status Display
3. C Subwoofer
4. D External Device - (Blu-ray player, game console, etc.)
5. b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the TV via an HDMI cable.
6. c Connect in the following order: subwoofer [ soundbar. Then, turn on the soundbar. ([ See “Connecting the Product” on page 6.)
7. d Using the product with your TV ([ See “Connecting with an Optical Cable”, “Connecting via Bluetooth”, “Connecting with an HDMI Cable” on page 20, 22, 23.)
8. A Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
9. B On your TV’s settings, set the output speaker to [HDMI ARC], [Optical] or [External Speaker].
10. C When the TV is properly connected to the product, “OPT” or “ARC” will appear on the status display with a sound.
11. e Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 28.)
12. A Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
13. B Press the Bluetooth pair button. After a moment, you will see “BT READY” on the status display.
14. C Find and select “LG SH5A(XX)”.
15. D When the product is connected to your smartphone via Bluetooth, you can see the status display change from “PAIRED” [ “Connected Bluetooth device name” [ “BT”.
16. f Connecting to the LG ThinQ app ([ See “Connecting with the product via LG ThinQ app” on page 33.)
17. A Install the LG ThinQ app on Google Play or the App Store.
18. B Run the LG ThinQ app and follow the instructions.
19. C The product will connect to your smartphone and you can control the product with LG ThinQ app.

Table of Contents

Soundbar Quick Guide

2 Installing and using the Product

Installation

5 Installing the soundbar

6 Connecting the Product

7 Setting up surround sound

Exploring the Product

11 Front

12 Back

13 Exploring Remote Control

Connecting to the TV

20 Connecting with an Optical Cable

22 Connecting via Bluetooth

23 Connecting with an HDMI Cable

Connecting to an External Device

25 Connecting with an HDMI Cable

27 Connecting with an Optical Cable

Using the Product as an Audio System

28 Connecting via Bluetooth

31 Connecting to a USB Storage Device

33 Connecting with the product via LG ThinQ app

33 Installing the LG ThinQ app and registering the product

Safety Precautions

35 Safety and Regulatory

38 Prevention of product misuse

Before Reporting Product Malfunction

42 Troubleshooting

Appendix

45 Specifications

47 Registered Trademarks and Licenses

48 Open Source Software Notice Information

49 Handling the Product
