Omnidirectional portable speaker
Omnidirectional portable speaker Quick Guide

Sound Bar Quick Guide

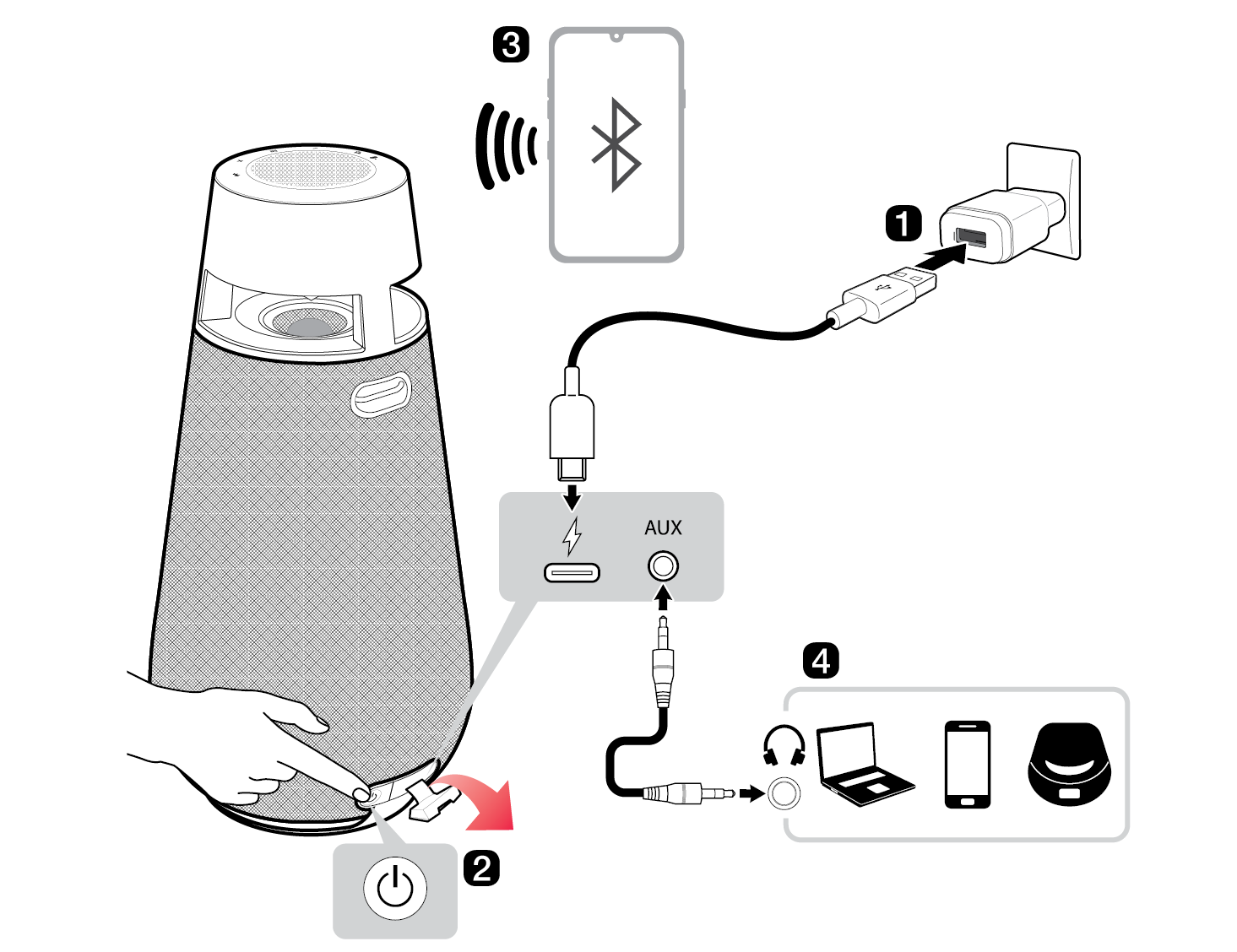

Using Easily in Order



  1. a Charge the speaker before using it by opening the rear cover and connect the speaker to an AC adapter (not provided).
  2. b To use this speaker, turn it on by pressing the power 19553.png button.
  3. c Connecting the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 11.)
  4. A Press the Power4909.png button to turn on the product. Bluetooth LED blinks blue.
  5. B Tap the Settings5308.png button on your smartphone and select 5385.pngBluetooth. Turn on the Bluetooth function. (5371.pngOff > 5359.pngOn)
  6. C From the list of smartphone devices, find and tap on “LG-XO3Q(XX).”
  7. D Once the smartphone is connected to the product via Bluetooth, the Bluetooth LED will turn on blue. Play a desired track in the music app on your smartphone.
  8. d Connecting to an External Device ([ See “Connecting via 3.5 mm Stereo Cable” on page 22.)
  9. A Press the Power11309.png button to turn on the product.
  10. B Open the back cover of the product and connect the external device to the AUX terminal via a 3.5 mm stereo cable.
  11. C Turn the external device on and start playing.
  12. e Connecting the LG XBOOM App ([ See “Installing app” on page 16.)
  13. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
  14. B Run the LG XBOOM app and use its functions. (EQ, Wireless Party Link, Lighting, Sleep Timer, Setting etc.)
  15. f Power Saving ([ See “Power Saving Mode” on page 23.)

If there is no playback or button input for 15 minutes, the product turns off automatically. On the LG XBOOM app, you can enable or disable [Auto Power Management].

Table of Contents

Omnidirectional portable speaker Quick Guide

2 Using Easily in Order

Exploring the Product

5 Top

7 Back

Charge

9 Charging the Battery

10 Checking Battery Status

Connecting to Bluetooth

11 Connecting Smartphone to the Speaker via Bluetooth

14 Connecting with two smartphones

Connecting to the LG XBOOM App

16 Installing app

18 Using the Wireless Party Link

Connecting to an External Device

22 Connecting via 3.5 mm Stereo Cable

Additional Functions

23 Initialising the Software

23 Power Saving Mode

24 Using Auto power - on.

24 Voice feedback function

Safety Precautions

25 Safety and Regulatory

Things to Check before Reporting Malfunction

28 Troubleshooting

Appendix

29 Product Specifications

30 Registered Trademarks and Licenses

31 Handling the Product

Exploring the Product
