Portable Bluetooth Speaker
Portable Bluetooth Speaker Quick Guide

Sound Bar Quick Guide

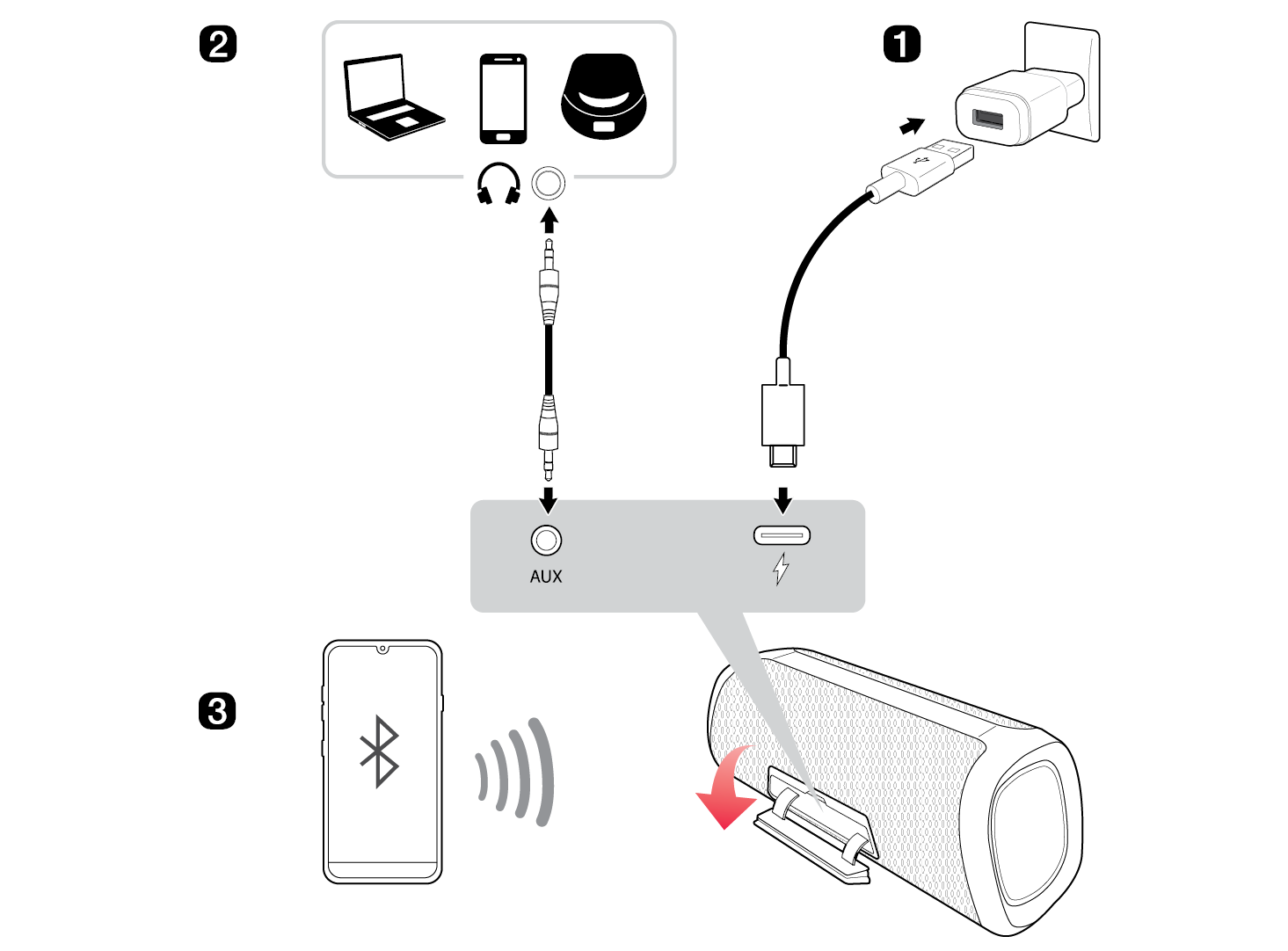

Connecting and Using the Speaker



  1. a Charge the speaker before using it by opening the rear cover and connect the speaker to an AC adapter (not supplied).
  2. b Connecting to an External Device ([ See “Connecting via 3.5 mm Stereo Cable” on page 22.)
  3. A Press the Power129969.png button on the speaker to turn it on.
  4. B Open the back cover of the speaker and connect the external device to the AUX terminal via a 3.5 mm stereo cable.
  5. C Turn the external device on and start playing.
  6. c Connect the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 10.)
  7. A Press the Power129959.png button on the speaker to turn it on. Bluetooth LED blinks.
  8. B Press the Settings128687.png button on the smartphone and select 136883.pngBluetooth. Turn on the Bluetooth function. (Off128730.png > On128740.png)
  9. C Find "LG-XG5Q (XX)" on the device list on the smartphone and connect to it. Once the smartphone is connected via Bluetooth, the Bluetooth LED will turn on.
  10. D On the smartphone, play a music of your choice.
  11. d Connecting the LG XBOOM App ([ See “Installing app”, “Using the Wireless Party Link” on page 16, 18.)
  12. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
  13. B Run the LG XBOOM app and use more features. (EQ, Wireless Party Link, Lighting, Sleep Timer, Setting etc.)

Table of Contents

Portable Bluetooth Speaker Quick Guide

2 Connecting and Using the Speaker

Exploring the Product

5 Top

7 Back

Charge

8 Charging the Battery

9 Checking Battery Status

Connecting to Bluetooth

10 Connecting Smartphone to the Speaker via Bluetooth

13 Connecting Two Bluetooth Devices to the Speaker

14 Talking on the Phone Hands-free

15 Using Voice command

Connecting to the LG XBOOM App

16 Installing app

18 Using the Wireless Party Link

Connecting to an External Device

22 Connecting via 3.5 mm Stereo Cable

Additional Functions

23 Setting Sound Effects

24 Resetting the Speaker

24 Resetting Bluetooth

25 Using Auto Power Management

26 Using Auto power - on.

26 Voice feedback function

Safety Precautions

27 Safety and Regulatory

Before Reporting Product Malfunction

30 Troubleshooting

Appendix

31 Specifications

32 Registered Trademarks and Licenses

33 Handling the Product

Exploring the Product
