Wi-Fi SOUND BAR
Mounting the Product to a Wall

Sound Bar Quick Guide

Checking before mounting to a wall

You can mount this product onto a wall.

When mounting the product to the wall, follow the instructions below.

Please check the following first.

  • It may be difficult to connect external devices and cables after wall-mounting. First, connect an external device with the proper connection cable to the product before mounting it to the wall.
  • Please note the following when you mount the product to the wall. Product damage or injury may occur during the process.
  • Do not put objects on top of the wall-mounted product.
  • Secure the product firmly to the wall using the fixing screws so that it does not fall off.
  • Ensure it is out of the reach of children. Pulling or shaking the mounted product may cause it to fall.
  • There are also speakers on the top of the product. When installing the product under the TV, install it 10 cm away from the bottom of the TV.

Components for mounting the product

Sound bar

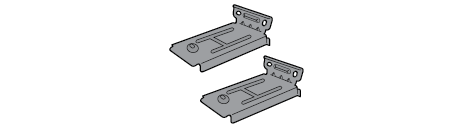

Wall bracket


Sound bar screws

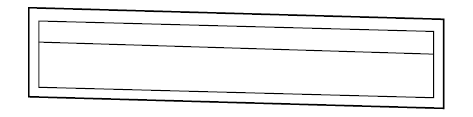

Wall bracket installation guide


Sold separately

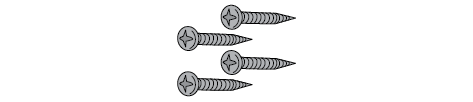

Bracket screws

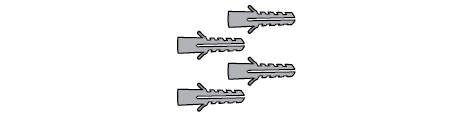

Wall plugs



120207.png Note

  • Screws and Wall Plugs are not supplied for mounting the product. We recommend the Hilti (HUD-1 6 x 30) for the mounting.
