Sound Bar Quick Guide

Enjoying enhanced sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects while the rear speakers are connected, you can hear the following difference.

When the surround sound is off

When the surround sound is on

Note

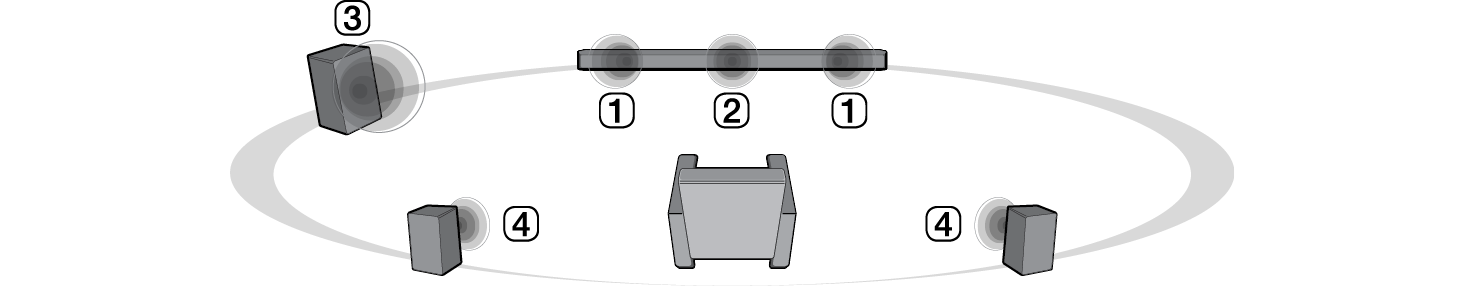

Speaker positions are as follows. A Front speakers B Center speaker C Subwoofer D Rear speakers

Turning surround sound on/off

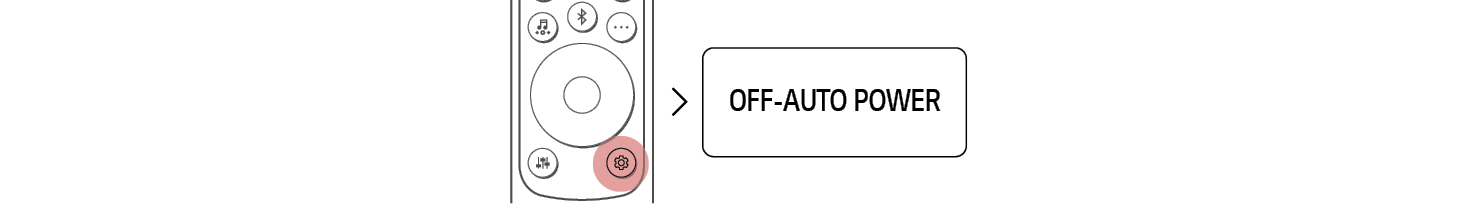

1. a Press Settings button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.

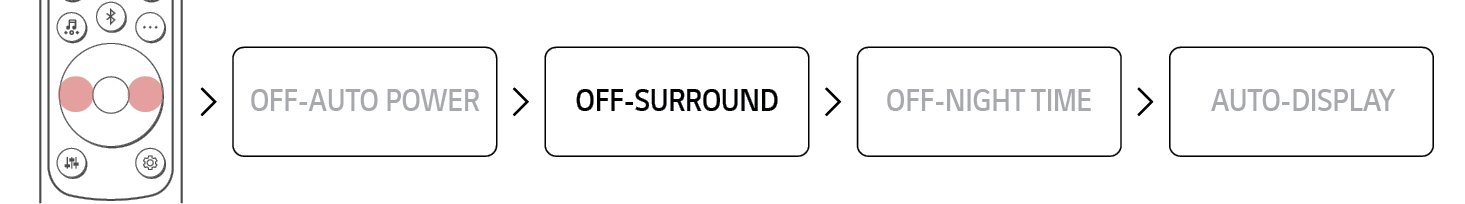

1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the surround sound setting. You can see the status of the surround sound, “OFF-SURROUND” or “ON-SURROUND”.

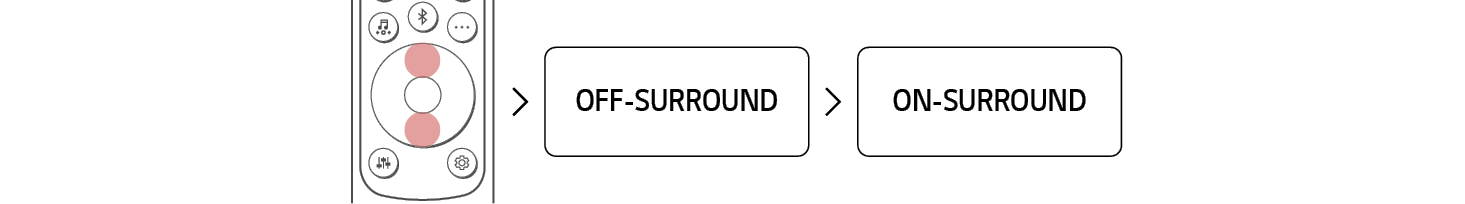

1. c While the “OFF-SURROUND” or “ON-SURROUND” is scrolling in the status display, press Up/Down button to turn on or off the surround sound.

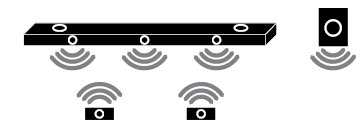

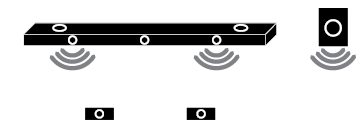

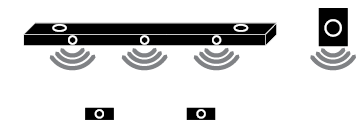

Speaker sound based on input channels

Sound Effects
Input	Output
	Rear speakers not connected	Rear speakers connected
AI SOUND PRO Sound customized with artificial intelligence
2.0 channels
5.1 channels
7.1 channels or more
STANDARD You can enjoy optimized sound
2.0 channels
5.1 channels
7.1 channels or more
CINEMA Cinematic 3D sound
2.0 channels
5.1 channels
7.1 channels or more
CLEAR VOICE PRO Improves the clarity of voices
2.0 channels
5.1 channels
7.1 channels or more
SPORTS Realistic sound like in a stadium
2.0 channels
5.1 channels
7.1 channels or more
MUSIC You can enjoy better sound optimized for music
2.0 channels
5.1 channels
7.1 channels or more
GAME Optimized sound for game
2.0 channels
5.1 channels
7.1 channels or more
BASS BLAST (BASS BLAST+) Sound with reinforced bass
2.0 channels
5.1 channels
7.1 channels or more
