Sound Bar Quick Guide

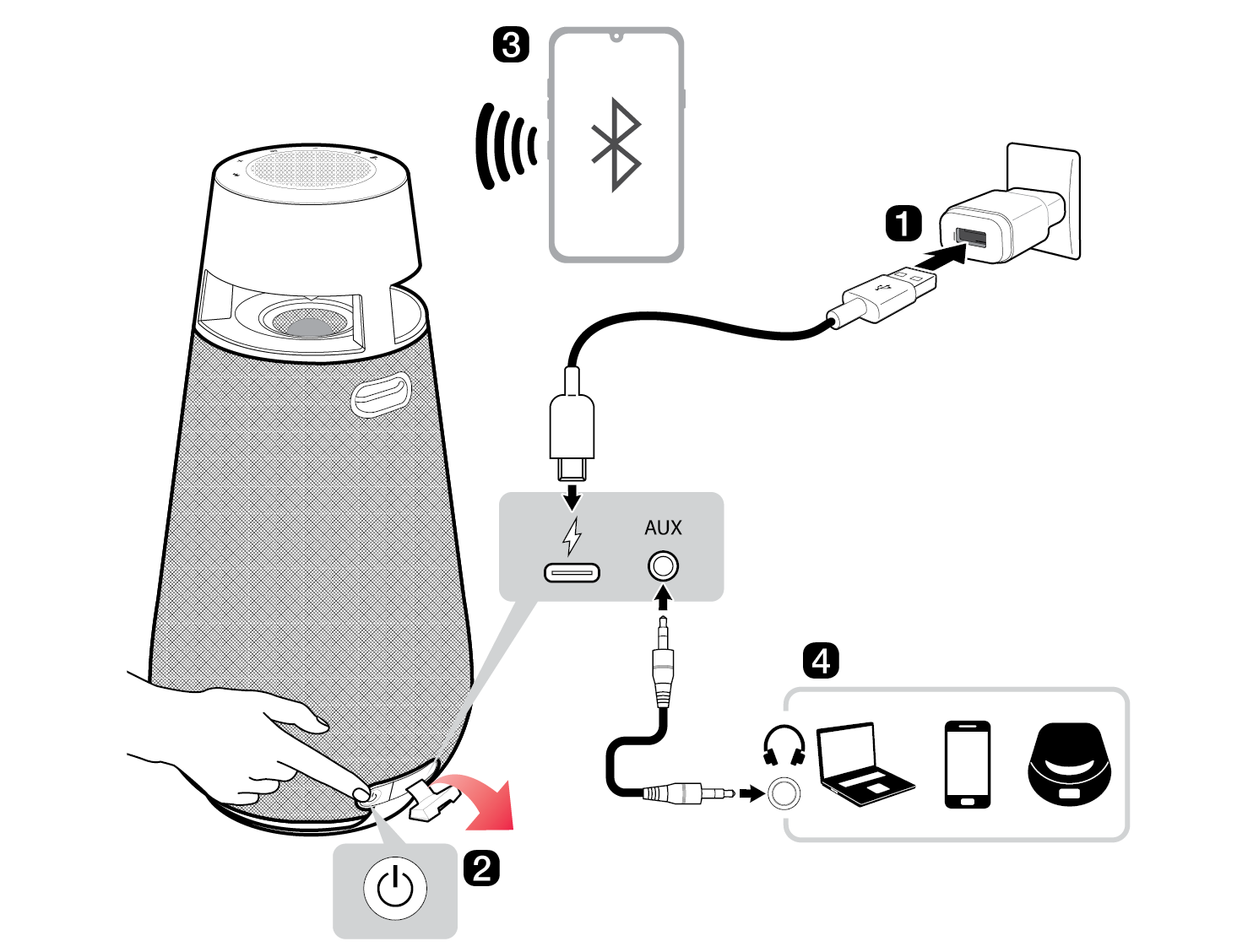

Using Easily in Order

1. a Charge the speaker before using it by opening the rear cover and connecting the speaker to an AC adapter (not provided) by using the provided USB (Type C to A) cable.
2. b To use this speaker, turn it on by pressing the power button.
3. c Connecting the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 12.)
4. A Press the Power button to turn on the product. Bluetooth LED blinks blue.
5. B Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
6. C From the list of smartphone devices, find and tap on “LG-XO3Q(XX).”
7. D Once the smartphone is connected to the product via Bluetooth, the Bluetooth LED will turn on blue. Play a desired track in the music app on your smartphone.
8. d Connecting to an External Device ([ See “Connecting via 3.5 mm Stereo Cable” on page 23.)
9. A Press the Power button to turn on the product.
10. B Open the back cover of the product and connect the external device to the AUX terminal via a 3.5 mm stereo cable.
11. C Turn the external device on and start playing.
12. e Connecting the LG XBOOM App ([ See “Installing app” on page 17.)
13. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
14. B Run the LG XBOOM app and use its functions. (EQ, Wireless Party Link, Lighting, Sleep Timer, Setting etc.)
15. f Power Saving ([ See “Power Saving Mode” on page 24.)

If there is no playback or button input for 15 minutes, the product turns off automatically. On the LG XBOOM app, you can enable or disable [Auto Power Management].

Table of Contents

Omnidirectional portable speaker Quick Guide

2 Using Easily in Order

Exploring the Product

5 Top

7 Back

Charge

10 Charging the Battery

11 Checking Battery Status

Connecting to Bluetooth

12 Connecting Smartphone to the Speaker via Bluetooth

15 Connecting with two smartphones

Connecting to the LG XBOOM App

17 Installing app

19 Using the Wireless Party Link

Connecting to an External Device

23 Connecting via 3.5 mm Stereo Cable

Additional Functions

24 Initialising the Software

24 Power Saving Mode

25 Using Auto power - on.

25 Voice feedback function

Safety Precautions

26 Safety and Regulatory

Things to Check before Reporting Malfunction

29 Troubleshooting

Appendix

30 Product Specifications

31 Registered Trademarks and Licenses

32 Handling the Product

Exploring the Product
