Sound Bar Quick Guide

Connecting the Product

You can enjoy a richer sound by connecting the sound bar to the wireless subwoofer and wireless rear speakers.

Connecting the wireless subwoofer and wireless rear speakers automatically

After completing installation, the wireless subwoofer and wireless rear speakers will automatically be connected to the sound bar. Connect the sound bar to the subwoofer and wireless rear speakers in the following order.

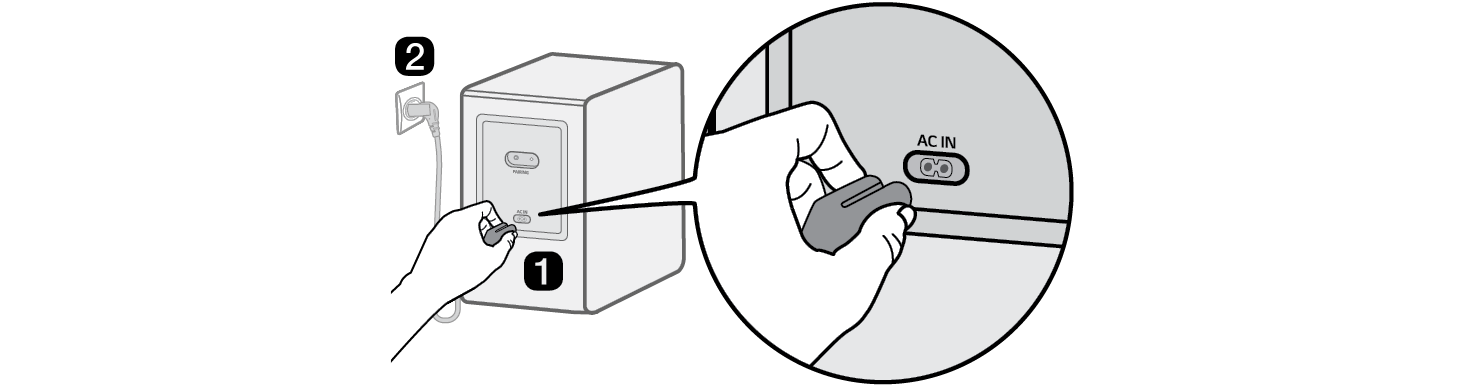

1. a Plug the power cable into the wireless subwoofer.
2. b Plug the power cable connected to the wireless subwoofer into an outlet.

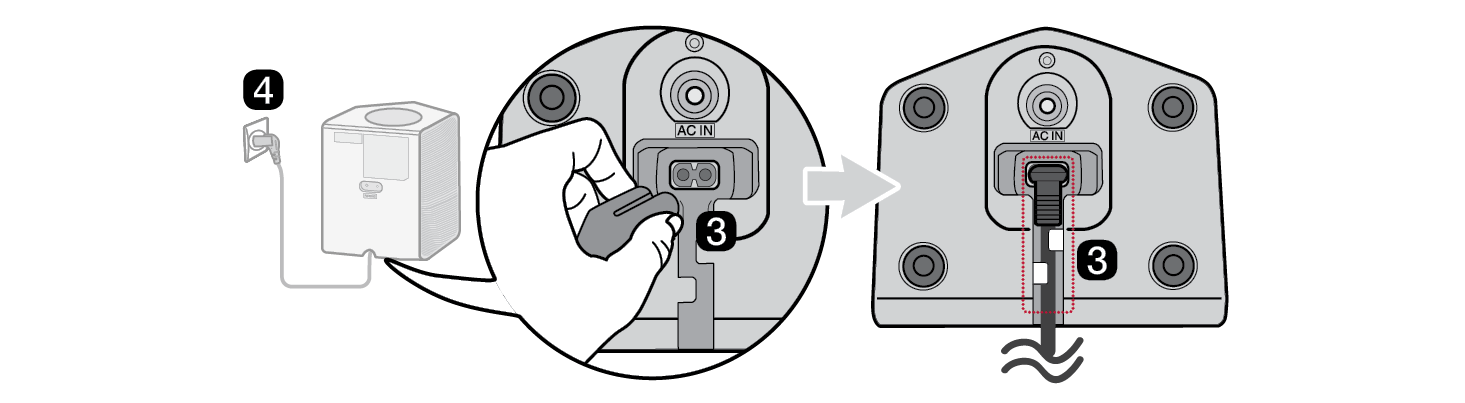

3. c Plug the power cables into the wireless rear speakers and arrange the power cables.
4. d Plug the power cables connected to the wireless rear speakers into outlets.

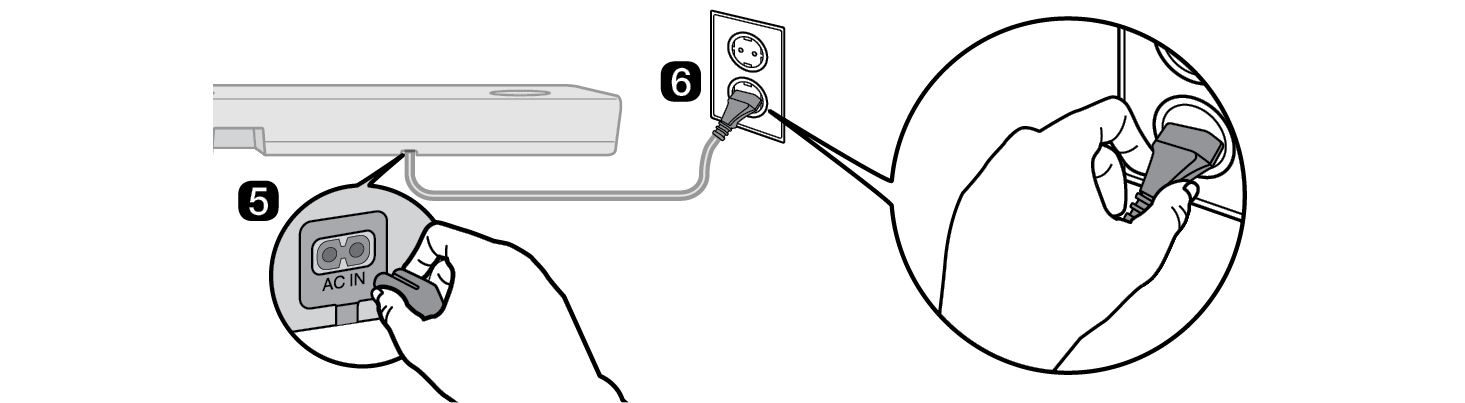

1. e Plug the power cable into the sound bar.
2. f Plug the power cable connected to the sound bar into an outlet.

1. g When the connection is automatically established, you will see the LEDs on the back of the wireless subwoofer and wireless rear speakers light up in green.

Checking the connection with the LEDs on the back of the wireless subwoofer and wireless rear speakers

You can check the connection status by looking at the LEDs on the back of the wireless subwoofer and wireless rear speakers.

LED Color	Status
Blinking green	Connecting in progress
Green	Connected successfully
Red	Bad connection, or the subwoofer or wireless rear speakers are in standby
Off	Power cable not connected

Connecting the wireless subwoofer and wireless rear speakers manually

If you see a red LED on the back of the wireless subwoofer or wireless rear speakers, it means that the sound bar is not connected to the subwoofer or wireless rear speakers. If this is the case, connect them in the following order.

1. a Press the Power button on the sound bar to turn it off.

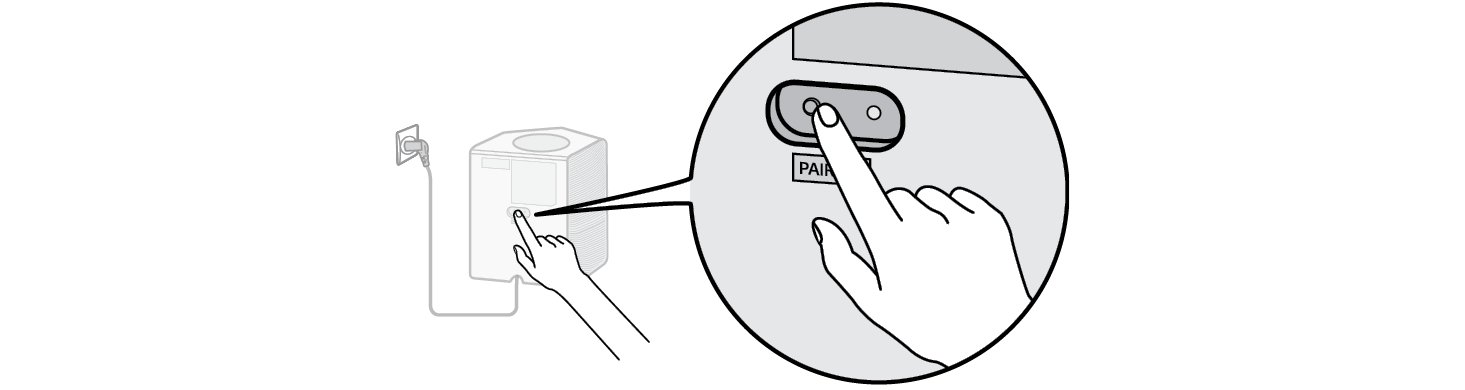

2. b Press the PAIRING button on the back of the wireless subwoofer or wireless rear speakers. Check if the LED on the back of the subwoofer or wireless rear speakers is blinking green. If you still see a red LED on the wireless subwoofer or wireless rear speakers, press and hold the button on the back of the subwoofer or wireless rear speakers again.

Connecting the wireless subwoofer manually

Connecting the wireless rear speakers manually

1. c Press the Power button on the sound bar to turn it on.
2. d When the connection is established, you will see the LED light on the back of the wireless subwoofer or wireless rear speakers light up in green.

Note

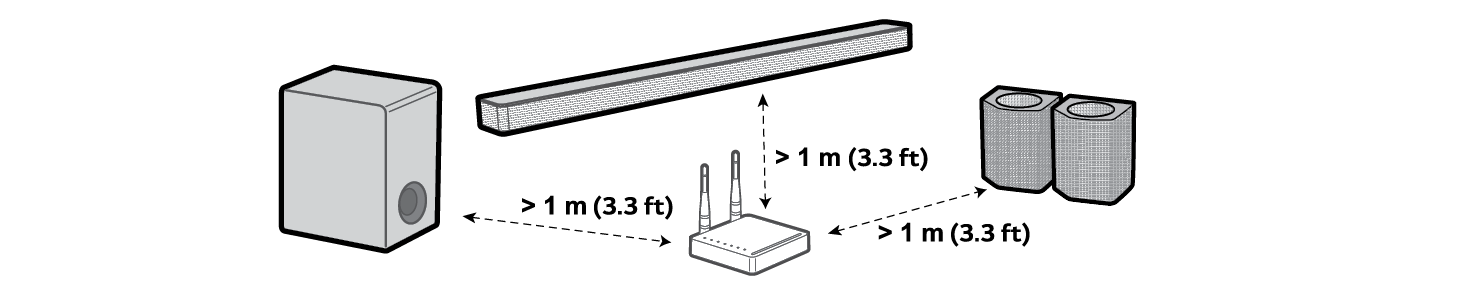

Install the sound bar as close to the wireless subwoofer as possible. The closer the distance between the sound bar and the wireless subwoofer, the better the sound quality. Please ensure there are no obstacles between the sound bar and the wireless subwoofer. Keep the rear speakers at least 30 cm (11.8 inch) away from the TV or monitor. To prevent wireless interference, maintain a distance of at least 1 m (3.3 ft) between the sound bar or the wireless subwoofer, wireless rear speakers and any peripheral devices that generate strong electromagnetic waves (ex. wireless routers, microwave ovens, etc.).

Setting up surround sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects while the wireless rear speakers are connected, you can hear the following difference.

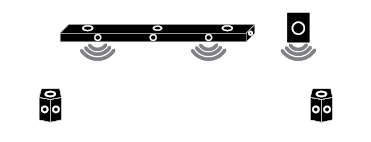

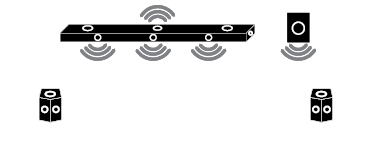

When the surround sound is off

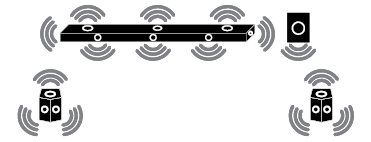

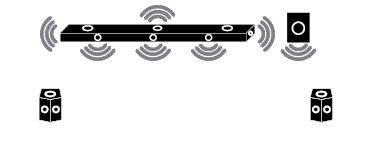

When the surround sound is on

Note

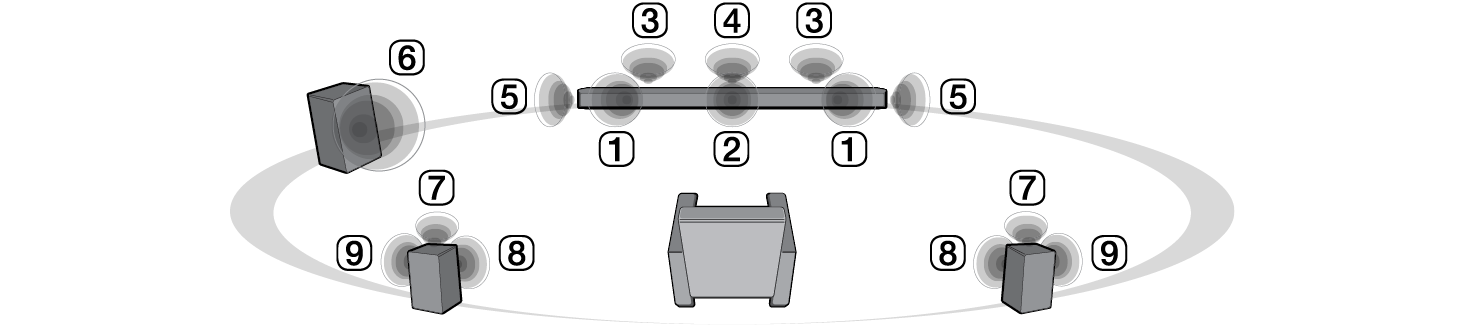

Speaker positions are as follows. A Front speakers B Center speaker C Top speakers D Top center speaker E Surround (Side) speakers F Subwoofer G Rear top speakers H Rear speakers I Rear Surround (Side) speakers

Turning surround sound on/off

1. a Press Settings button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.

1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the surround sound setting. You can see the status of the surround sound, “OFF-SURROUND” or “ON-SURROUND”.

1. c While the “OFF-SURROUND” or “ON-SURROUND” is scrolling in the status display, press Up/Down button to turn on or off the surround sound.

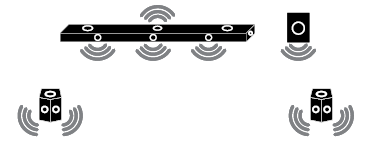

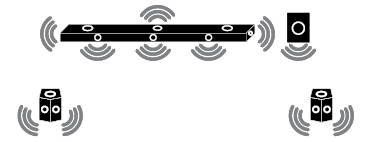

Speaker sound based on input channels

Sound Effects
Input		Output
		Rear speakers not connected	Rear speakers connected
AI SOUND PRO Sound customized with artificial intelligence
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
STANDARD You can enjoy optimized sound.
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
MUSIC Sound enriched with MERIDIAN technology
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
CINEMA Cinematic 3D sound
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
CLEAR VOICE Voice sound clear, improving the quality of voice sound
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
SPORTS Realistic sound like in a stadium
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
GAME Optimized sound for game
2.0 channels
5.1 channels	DTS
	Other
7.1 channels or more
7.1.4 channels
BASS BLAST (BASS BLAST+) Sound with reinforced bass
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
