Connecting Smartphone to the Speaker via Bluetooth

You can play tracks or run a music app on a Bluetooth device and enjoy the sounds through the speaker.

Please check the following first.

  • The speaker’s Bluetooth specifications are as follows:
  • Bluetooth version: 5.1
  • Bluetooth codec: SBC, AAC
  • This product supports Bluetooth devices such as smartphones and laptops. How to connect the devices to the speaker may differ depending on device types and models. For information on how to connect the device, refer to the user manual of the external device to be connected.

Select the [Bluetooth] menu on the smartphone's Settings screen. The menu access method may differ depending on the smartphone manufacturer and model.

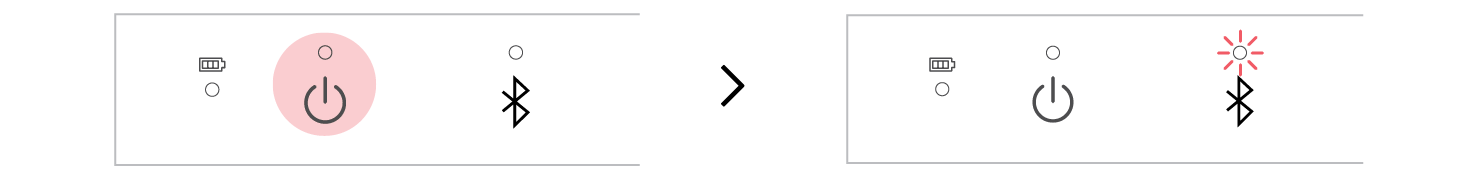

  1. a Press the Power114342.png button on the speaker to turn it on. Bluetooth LED blinks.

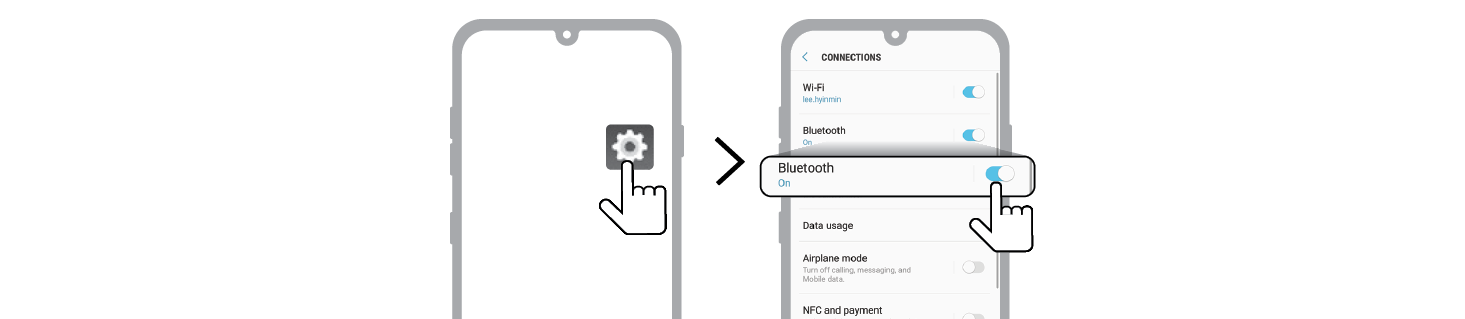

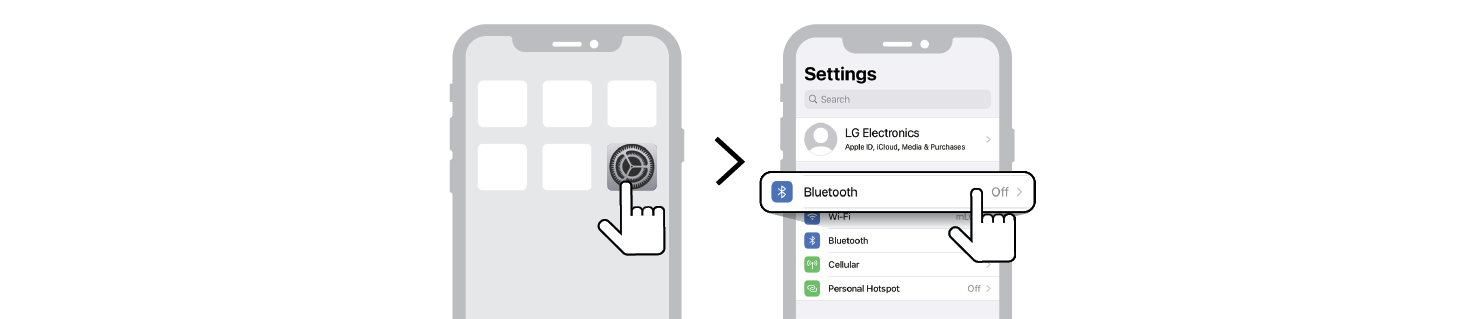

  1. b Tap the Setting (114299.png / 114289.png) button on your smartphone and select 137774.pngBluetooth.


(Android Phone)


(iPhone)

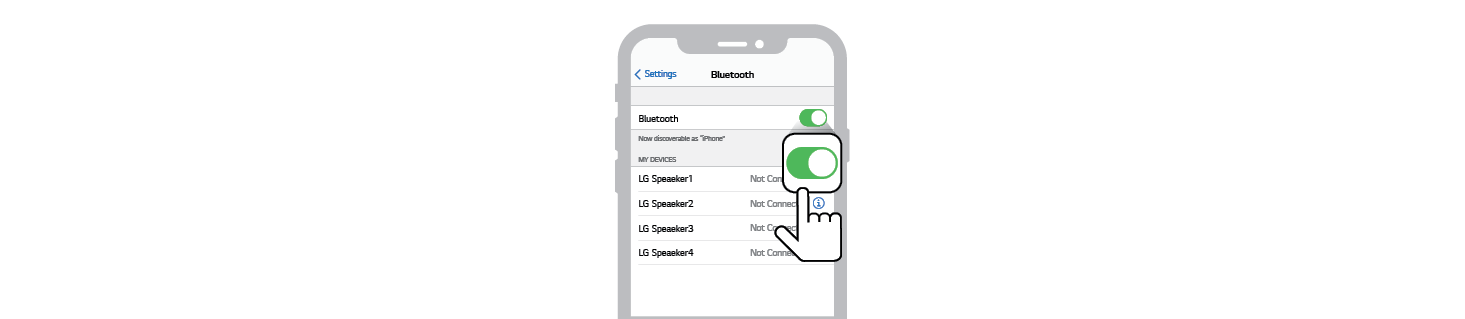

  1. c Turn on the Bluetooth function. (Off134129.png > On134134.png)

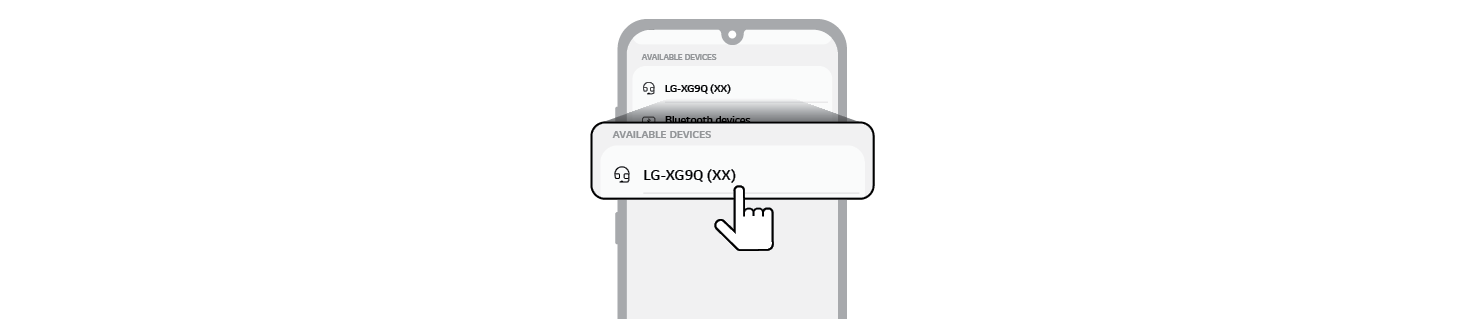

  2. d You will see a list of connectable devices on the smartphone screen. Find and tap “LG-XG9Q (XX)".

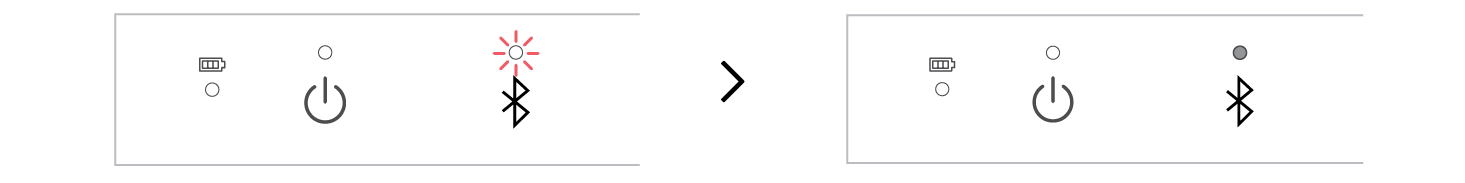

  1. e Once the speaker and the smartphone are connected via Bluetooth, Bluetooth LED will turn on with the sound.

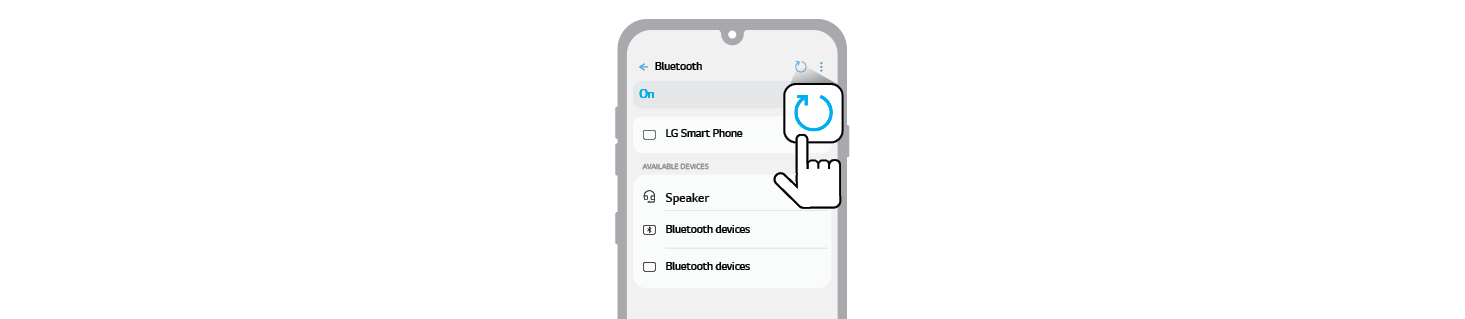

  1. f If "LG-XG9Q (XX)" does not appear on the list, tap on the Refresh114150.png icon on an Android phone or restart Bluetooth on an iPhone.


(Android Phone)


(iPhone)


  1. g Select and play a track on the smartphone.




129442.png Note
  • XX are the last two digits of the Bluetooth address. An example would be “LG-XG9Q (08)”.
  • The closer the Bluetooth device is to the speaker, the better connection you will get.
  • If no Bluetooth device is connected to the speaker, the Bluetooth LED blink. Connect the device again.
  • Adjust the volume of the Bluetooth device to an appropriate level when using it.
  • When the product is charging, if you try to connect to the product via the Bluetooth device with a connection history, the product will automatically turn on and connect to the Bluetooth device. You can control this function in the LG XBOOM app. ([ See “Using Auto power - on.” on page 29.)
