Sound Bar Quick Guide

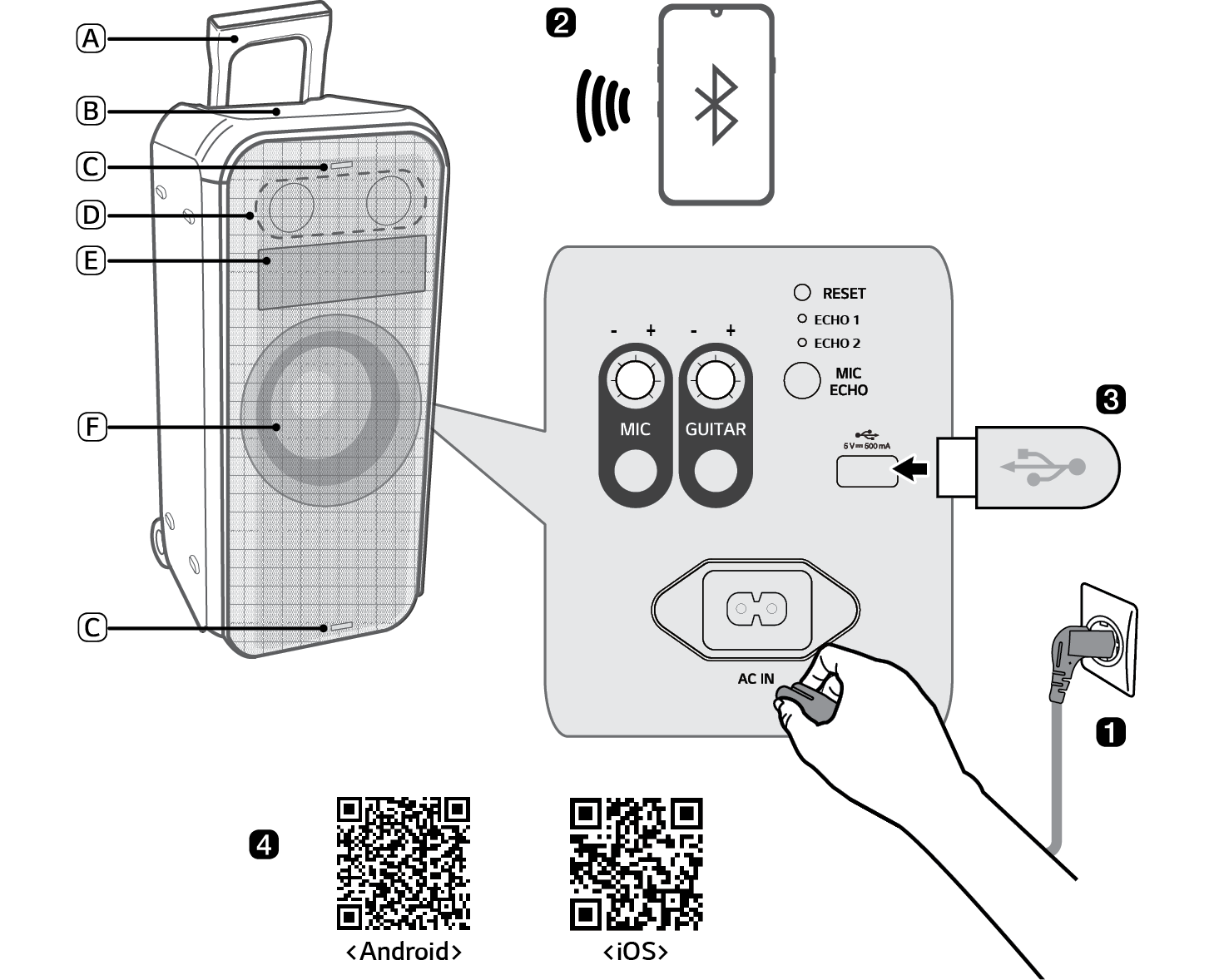

Connecting and Using the Speaker

1. A Handle
2. B Controls
3. C Flash Lighting
4. D Speaker (Tweeter)
5. E Dot Animation
6. F Speaker (Woofer) / Woofer Lighting
7. a Connect the power cord to the product by opening the rear cover and charge it before use
8. b Connecting the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 12.)
9. A Press the Power button to turn on the product.
10. B Press the Function button on the product repeatedly to select the BT function. The BT LED blinks.
11. C Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
12. D From the list of smartphone devices, find and tap on “LG-XL7S(XX).”
13. E Once the smartphone is connected to the product via Bluetooth, the BT LED will turn on. Play a desired track in the music app on your smartphone.
14. c Playing Music from the USB ([ See “Connecting the product to a USB storage device” on page 23.)
15. A Open the back cover of the product and plug the USB storage device into the USB terminal.
16. B Press the Power button to turn on the product.
17. C Press the Function button on the product repeatedly to select the USB function. The USB LED will turn on.
18. D Press the Play/Pause button to enjoy the music.
19. d Connecting to the LG XBOOM App ([ See “Installing app” on page 17.)
20. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
21. B Run the LG XBOOM app and use its functions. (EQ, Wireless Party Link, Dot Animation, Lighting, Setting etc.)
22. e Power Saving ([ See “Power Saving Mode” on page 27.)

If there is no playback or button input for 15 minutes, the product turns off automatically. On the LG XBOOM app, you can enable or disable [Auto Power Management].

Table of Contents

Portable Bluetooth Speaker Quick Guide

2 Connecting and Using the Speaker

Exploring the Product

5 Top & Front

7 Back

Charge

9 Charging the Battery

11 Checking Battery Status

Connecting to Bluetooth

12 Connecting Smartphone to the Speaker via Bluetooth

15 Connecting with two smartphones

Connecting to the LG XBOOM App

17 Installing app

19 Using the Wireless Party Link

Connecting to USB

23 Connecting the product to a USB storage device

Additional Functions

25 Setting Sound Effects

26 Resetting the product

26 Initializing the Software

27 Power Saving Mode

27 Using Auto power - on.

27 Voice feedback function

28 Carrying the product

Safety Precautions

30 Safety and Regulatory

33 Prevention of product misuse

Things to Check before Reporting Malfunction

37 Troubleshooting

Appendix

39 Product Specifications

40 Registered Trademarks and Licenses

41 Handling the Product

Exploring the Product
