Portable Bluetooth Speaker
Additional Functions

Sound Bar Quick Guide

Charging a smartphone

Use the USB cable to charge your smartphone like a spare battery for the speaker.

Please check the following first.

  • The method of charging your smartphone differs depending on the device. Refer to your smartphone's manual.

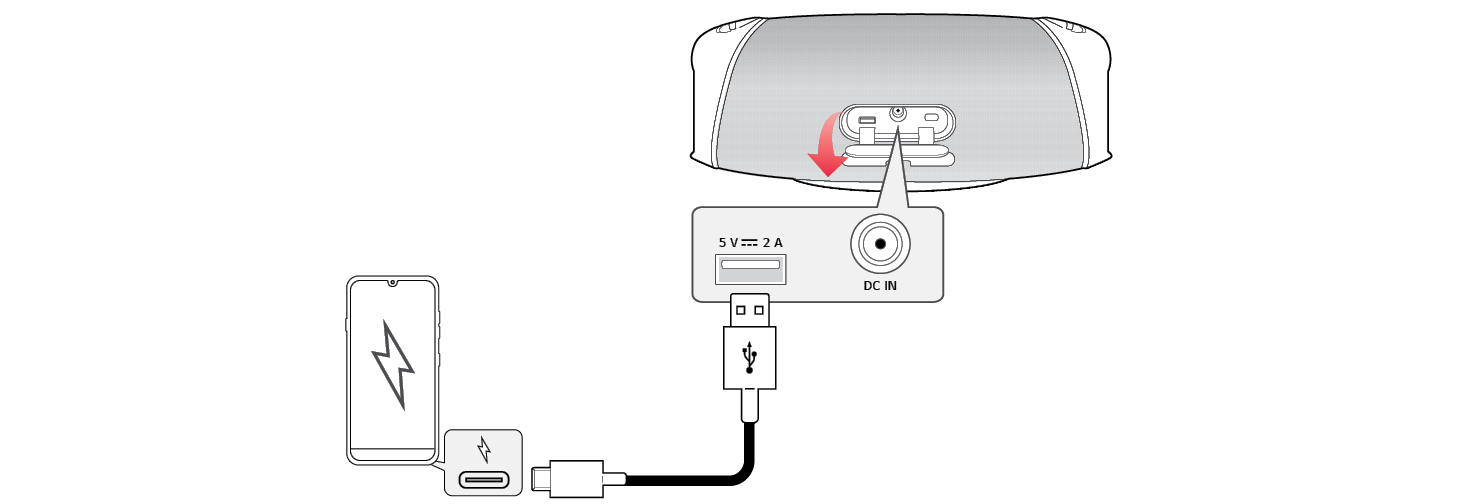

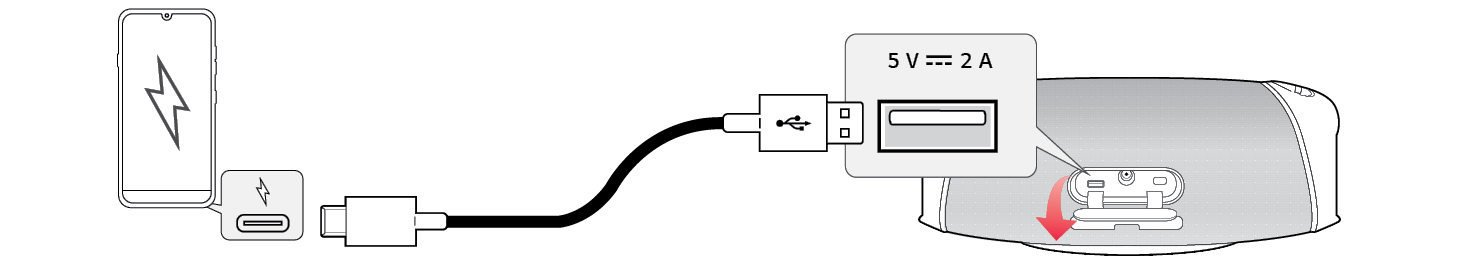

  1. a Open the back cover of the speaker and connect the smartphone to the DC OUT (5 V 0 2 A) terminal via the USB cable. The smartphone starts to be charged.

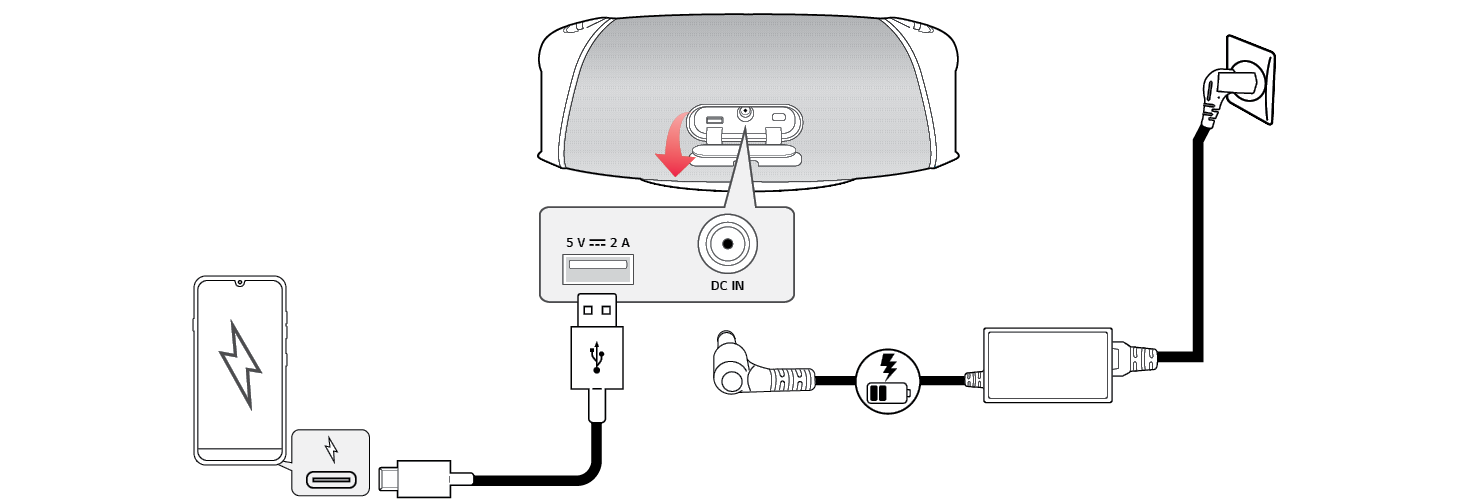

  1. b Depending on whether the speaker is charging or not, the smartphone can be charged.



Power input / Speaker status

Smartphone charging

Connected / Power On

O

Connected / Power Off

O



Power input / Speaker status

Smartphone charging

Disconnected / Power On

O*

Disconnected / Power Off

X


135879.png Note
  • When charging the smartphone by speaker, the battery of speaker is consumed.
  • Charging of devices other than smartphones cannot be guaranteed.
  • *If the Auto Power Management function is enabled when the power input is disconnected, the smartphone is not charged when the speaker is turned off.
