Portable Bluetooth Speaker
Exploring the Product

Sound Bar Quick Guide

Carrying the unit

To use on the shoulder

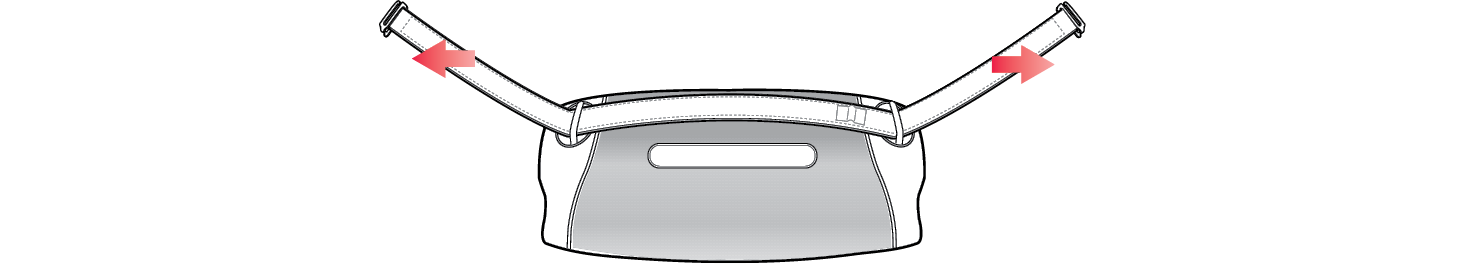

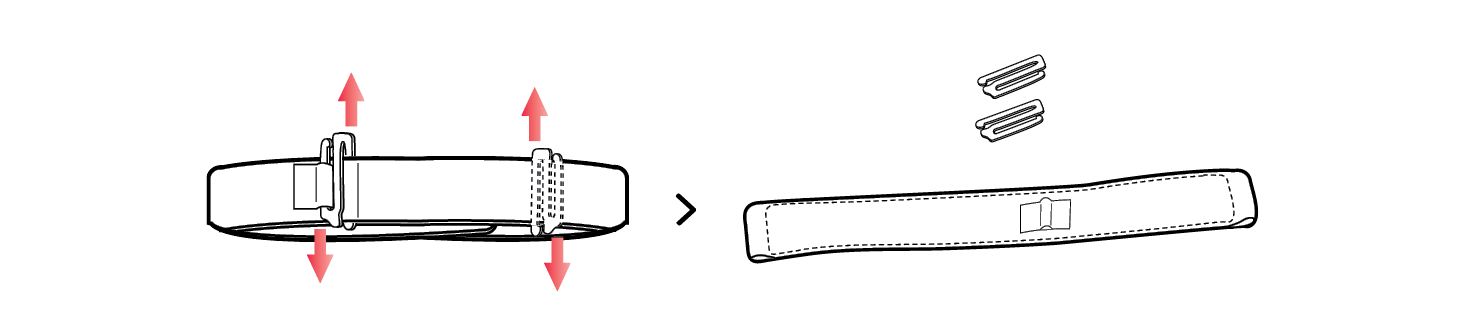

  1. a Remove the hook attached to the provided strap in the direction shown in the picture.

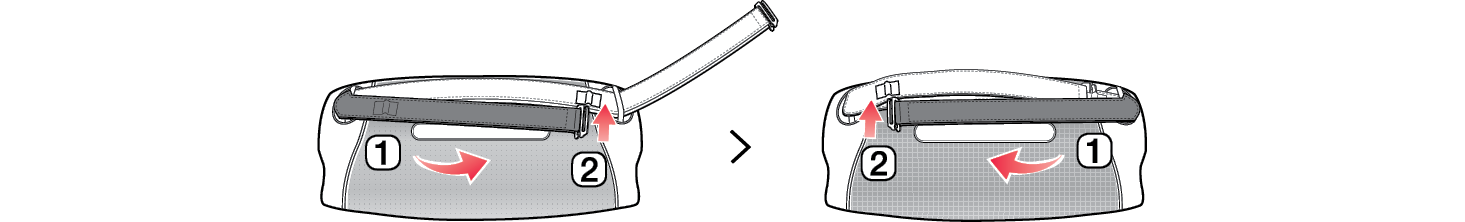

  1. b Place the speaker facing the front as shown in the picture, and insert both straps with the padded part of the strap facing down.

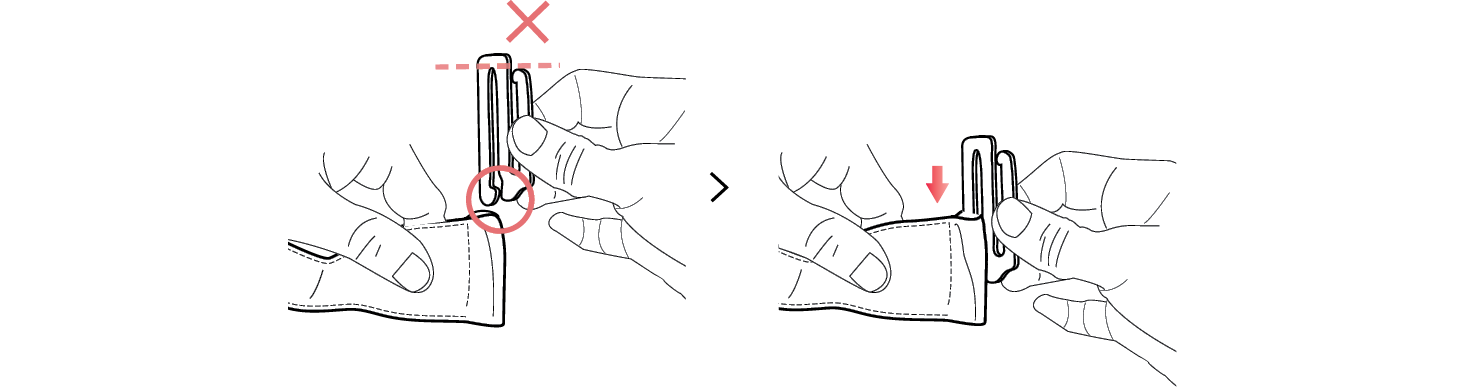

  1. c Insert the long part of the hook into the ends of both straps as shown in the picture.




> CAUTION

If you insert the shorter part of the hook, there is a risk that it will be separated from the strap.

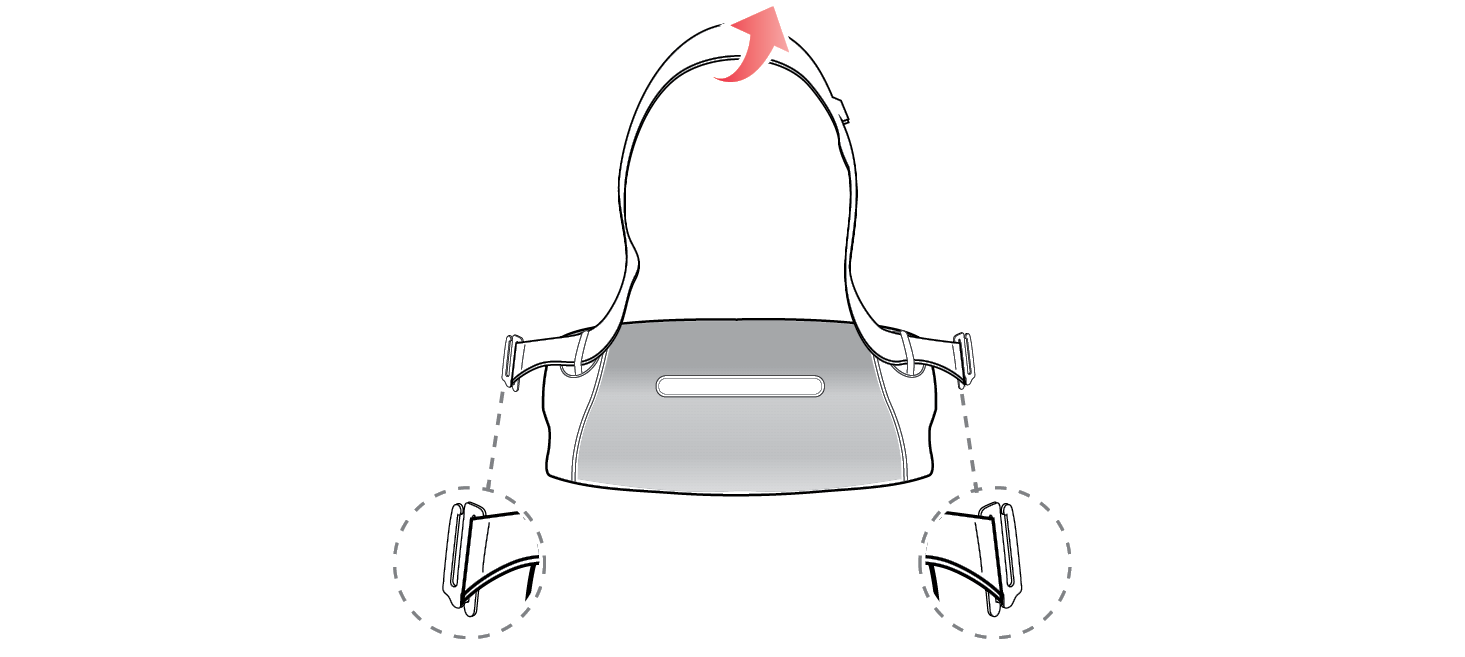

  1. d With the hooks at both ends of the strap fastened, pull the middle part of the strap all the way up.

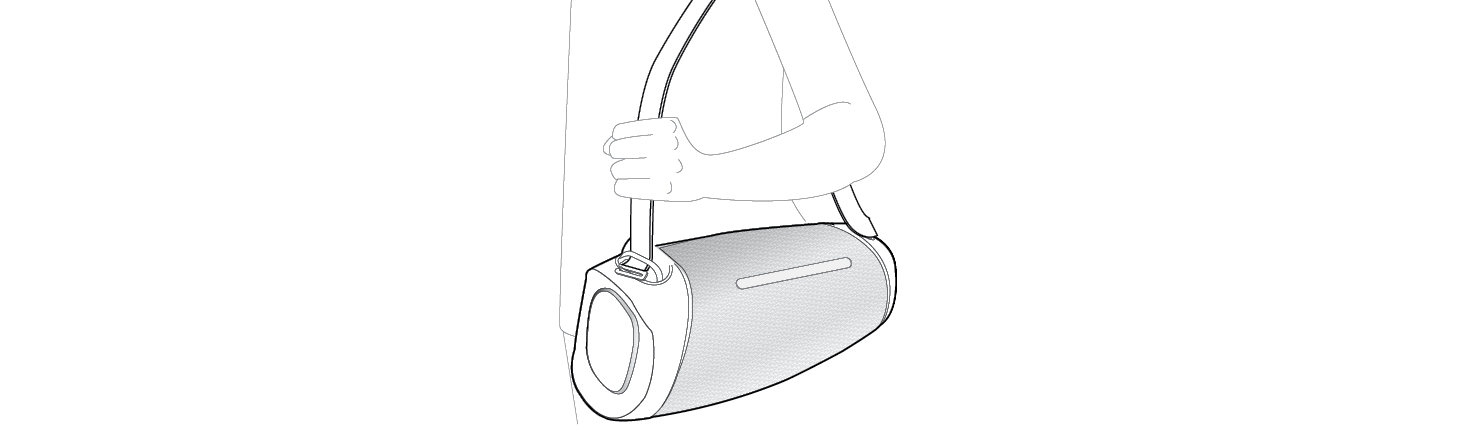

  1. e You can be worn over the shoulder.



To use for handheld

  1. a Remove the hook attached to the provided strap in the direction shown in the picture.



  1. b Place the speaker facing the front as shown in the picture, and insert both straps with the padded part of the strap facing down.



  1. c Insert the long part of the hook into the ends of both straps as shown in the picture.




> CAUTION

If you insert the shorter part of the hook, there is a risk that it will be separated from the strap.
  1. d With the hooks on both ends of the strap, pull both ends of the strap to flatten them.

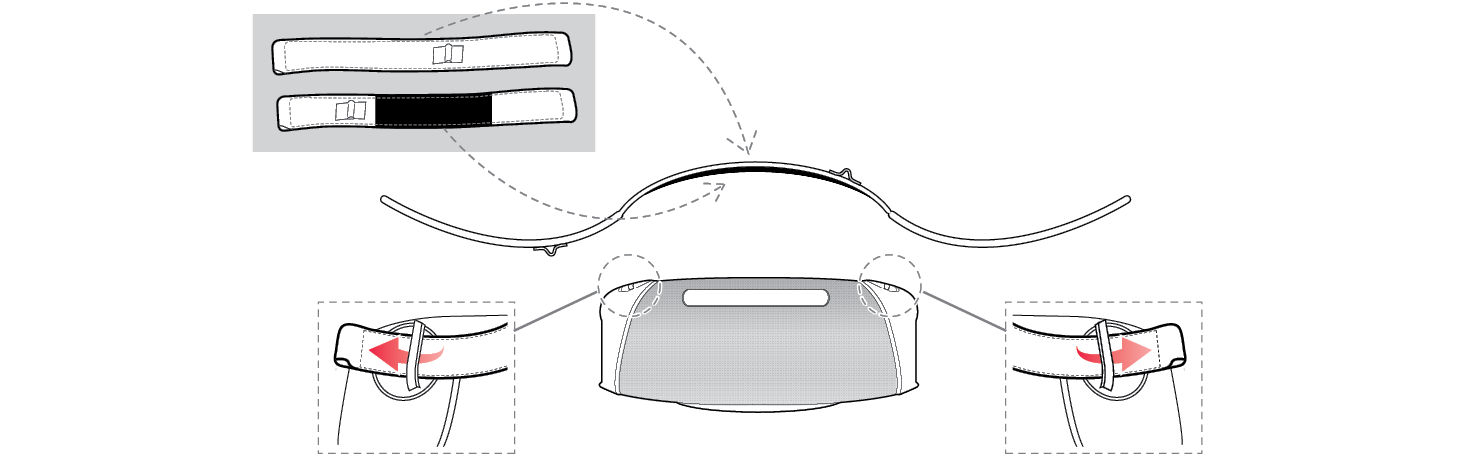

  1. e After facing the strap in the direction shown in the picture, hang each hook.

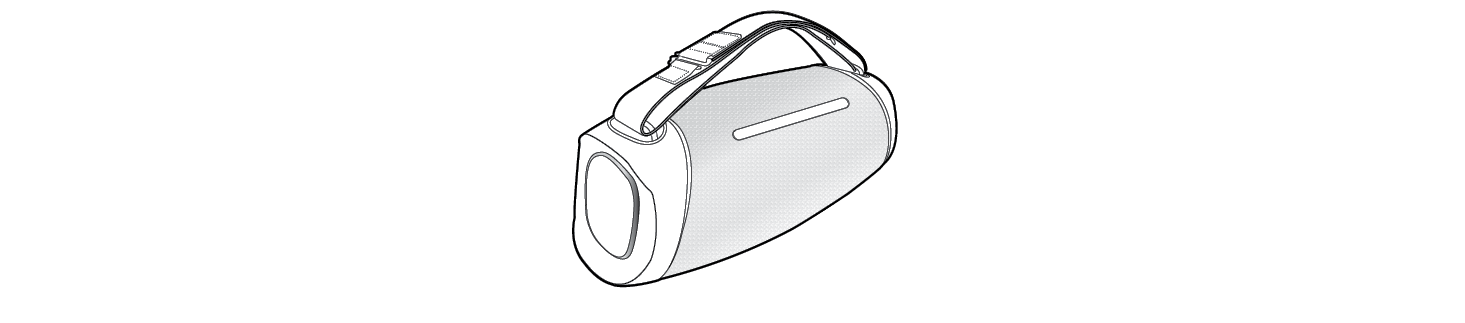

  1. f Once the hook fastening is complete, you can easily carry it by hand and use it.



Charge
