Sound Bar Quick Guide

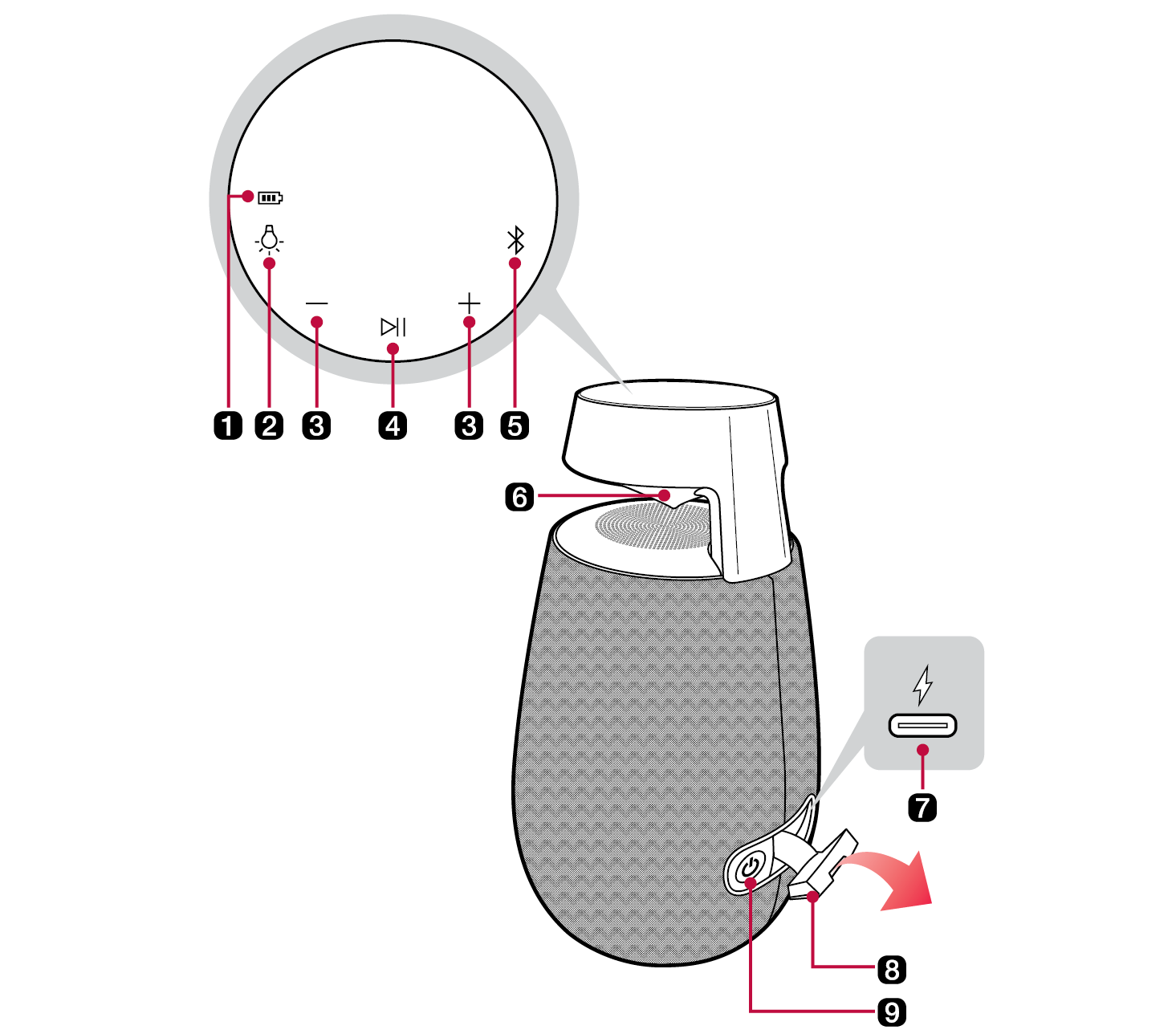

Top and Back

a	Battery LED Please check the battery charging level and battery status. ([ See “Checking Battery Status” on page 9.)
b	Lighting Press the button to select the desired lighting. Lighting: Ambient / Nature / Party / Off One Touch mode Press the button for about 2 seconds to start the One Touch mode. ([ See “Using the One Touch mode” on page 21.)
c	Volume It controls the volume level.
d	Play/Pause Press the button to operate the product. Play/Pause: Press the button. Moving to the next music: Press the button twice quickly. Moving to the previous music: Press the button three times quickly.
e	Bluetooth You can change the Bluetooth settings. Connecting an additional smartphone: Press and hold the button for 2 seconds. ([ See “Connecting with two smartphones” on page 13.) Resetting Bluetooth: Press and hold the button for 7 seconds. ([ See “Initializing the Software” on page 22.) Bluetooth LED Indicates the Bluetooth connection status. Blinks in blue: Ready for Bluetooth device connection. Turns on in blue: Connected to a Bluetooth device. Turns on in white: This speaker is connected to the other speaker via Wireless Party Link.
f	Lighting LED Using the LG XBOOM app, you can fine-tune the lighting effects to your liking.
g	(DC IN) Plug in the provided USB (Type C to A) cable to charge the speaker battery.
h	Back Cover Make sure to fully close the back cover after use. Ingress Protection: IP55 (Tested under controlled laboratory conditions with an IP55 rating under IEC standard 60529.) Dust protected and resistant to low-pressure water jet spray from 2.5 - 3 m away for 3 minutes. Dry before using. Do not charge while wet.
i	Power It turns on/off the product. If you press and hold the Power button for 2 seconds with product turned on, you can see the battery status on the battery LED.

. CAUTION

Place the product at a safe distance from the child’s reach. Otherwise it may result in the product falling down and causing personal injury and/or property damage.
Be careful that the speaker does not fall down. Otherwise it may result in the speaker malfunctioning and causing personal injury and/ or property damage.
Be careful not to expose the product to sunlight for a long time to prevent discolouration.
Be careful not to drop the speaker. Mechanical shock may cause deterioration of water-resistant and dust-resistant performance.
It is not good for the eyes to see the lens while the LED is running, do not see it directly.

Note

The button LEDs are usually off except Bluetooth button. To use the speaker, tap the buttons area on the top panel to activate the buttons. Then tap the button you want.
