Wi-Fi Soundbar
Various settings for convenience

Sound Bar Quick Guide

Convenient functions

Using Auto Power

This function automatically turns the product on or off when the TV or external device is turned on or off.

When the connected device is turned on, the product turns on automatically and selects a function according to the input signal.

Activating/Deactivating the Auto Power function

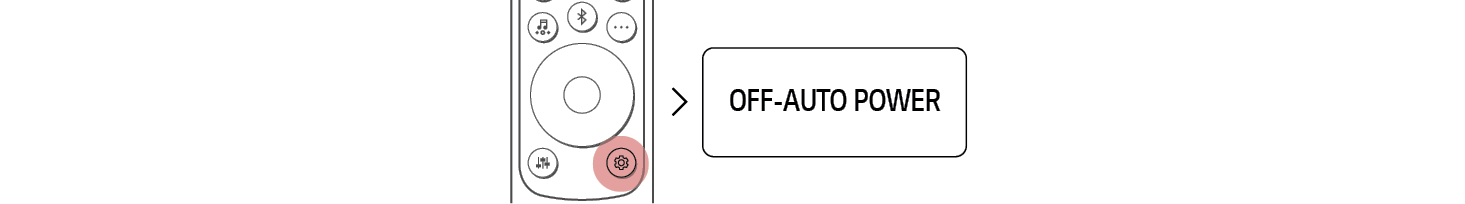

  1. a Press Settings147052.png button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.



  1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Up/Down button to turn on or off the Auto Power function.



Using Night Time

This reduces the general sound volume, but raises the volume of soft and delicate sounds. This is useful when enjoying music or a movie late at night.

Activating/Deactivating the Night Time function

  1. a Press Settings147025.png button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.

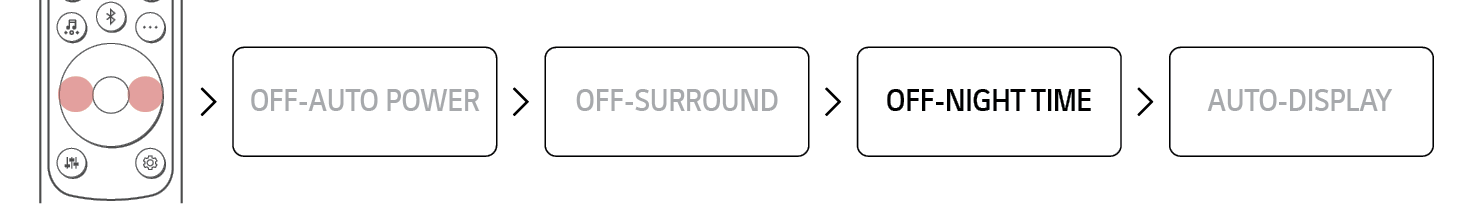

  1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the Night time setting. You can see the status of the Night time, “ON-NIGHT TIME” or “OFF-NIGHT TIME”.

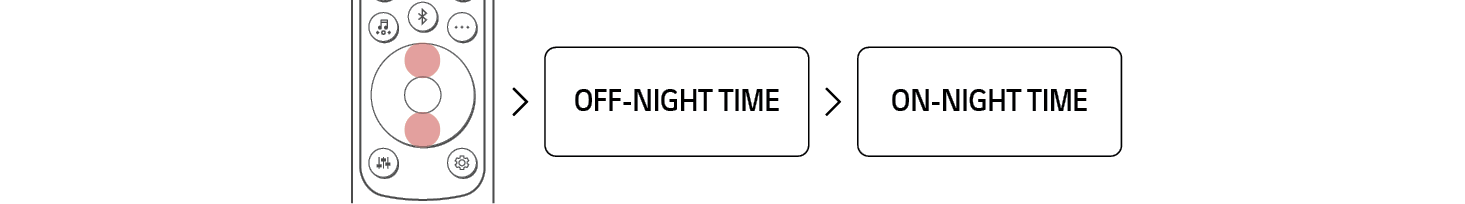

  1. c While the “ON-NIGHT TIME” or “OFF-NIGHT TIME” is scrolling in the status display, press Up/Down button to turn on or off the Night time.



Using Display

The status display can be controlled as auto, on, and off.

Option

Status display

AUTO

Dimmed after 20 seconds of button input.

ON

Always on

OFF

Turned off after 20 seconds of button input.

Activating/Deactivating the Display function

  1. a Press Settings146976.png button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.

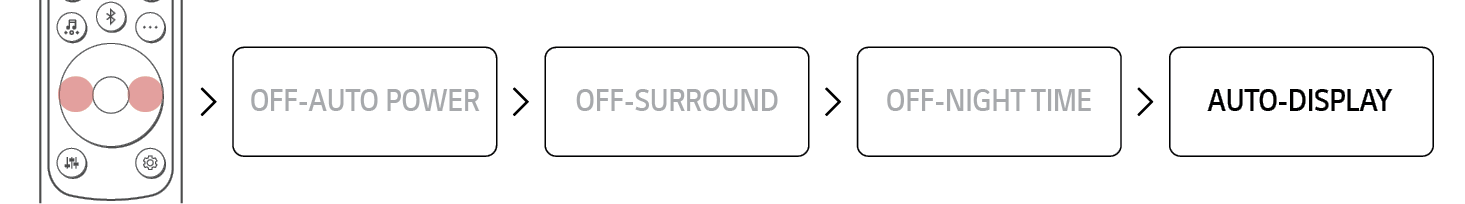

  1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the Display setting. You can see the status of the Display, “AUTO-DISPLAY”, “ON-DISPLAY” or “OFF-DISPLAY”.

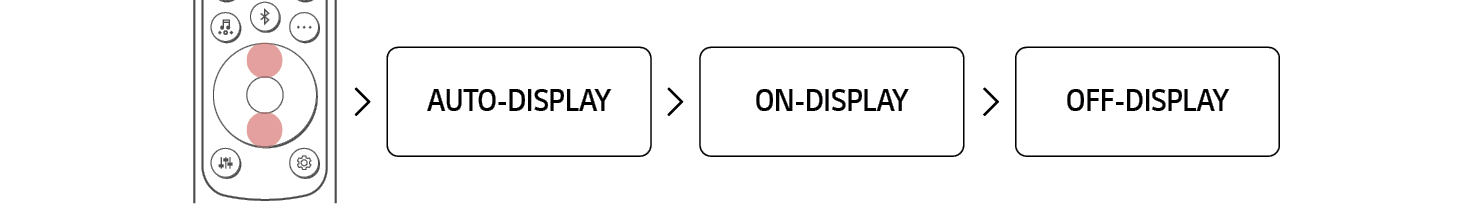

  1. c While the “AUTO-DISPLAY”, “ON-DISPLAY” or “OFF-DISPLAY” is scrolling in the status display, Press Up/Down button to change the Display to “AUTO” or turn it on or off.

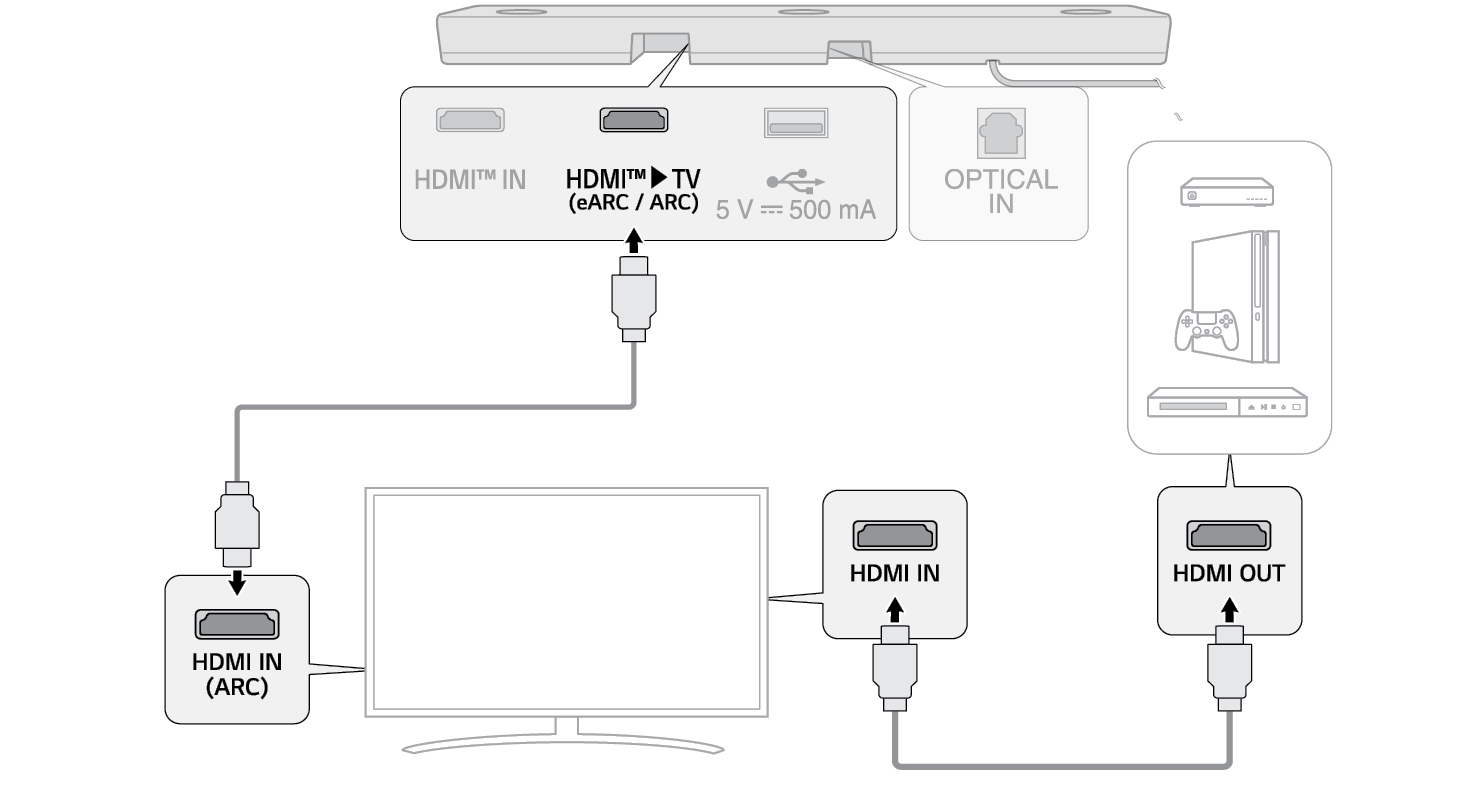

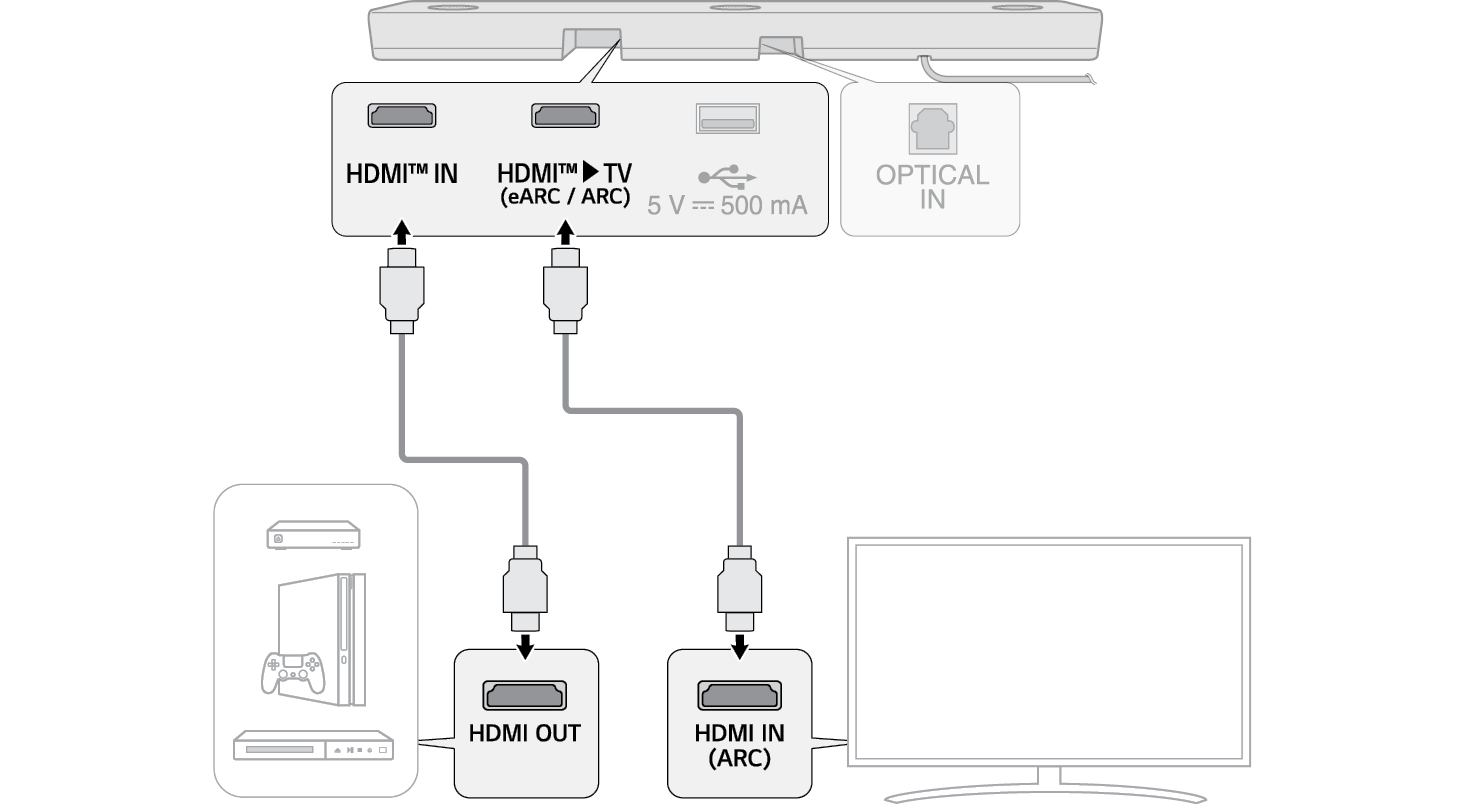

Connecting to the TV
