Sound Bar Quick Guide

Setting up surround sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects while the rear speakers are connected, you can hear the following difference.

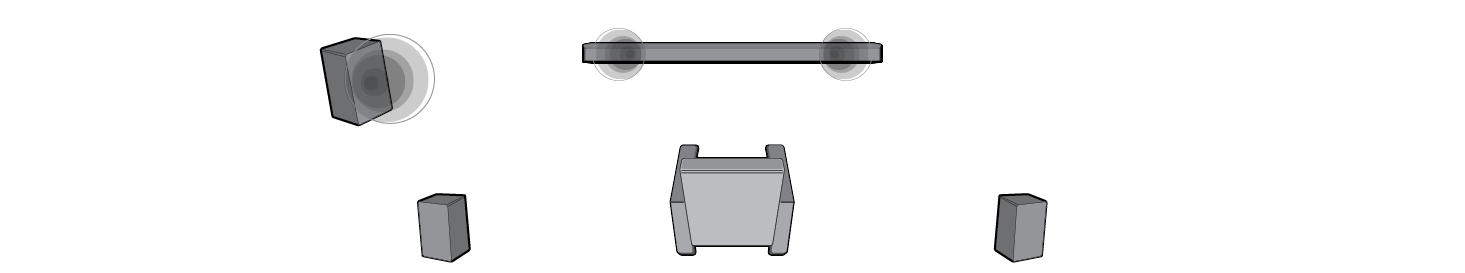

When the surround sound is off

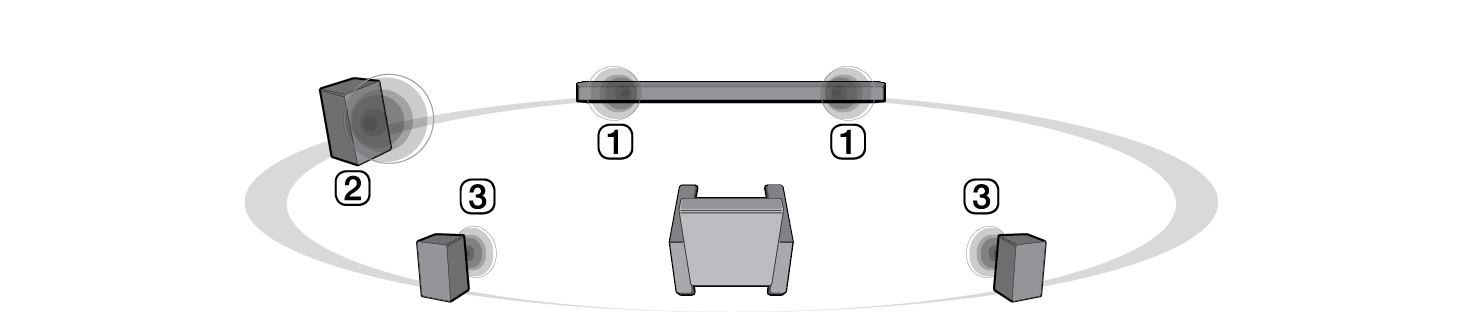

When the surround sound is on



168191.png Note
  • Speaker positions are as follows.
  1. A Front speakers
  2. B Subwoofer
  3. C Rear speakers

Turning surround sound on/off

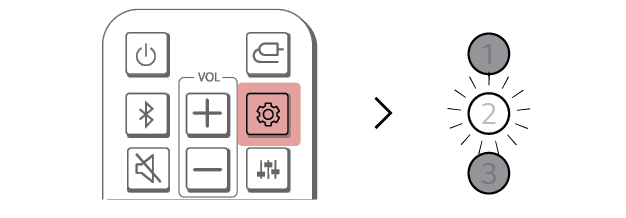

  1. a Press Settings168248.png button. LED2 blinks white.

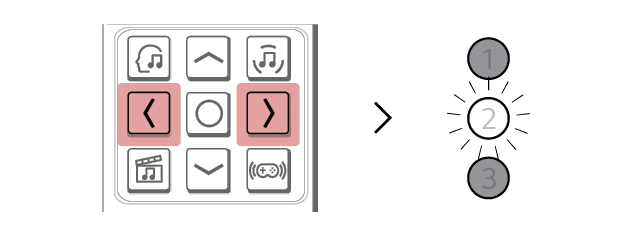

  1. b While the LED2 is blinking, press Left/Right button to choose the surround sound setting.

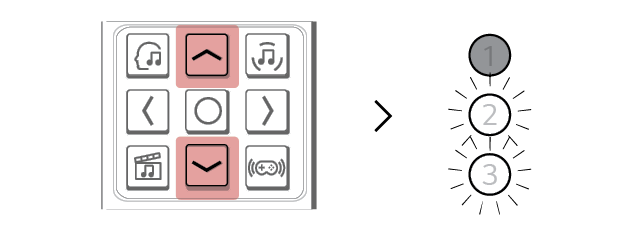

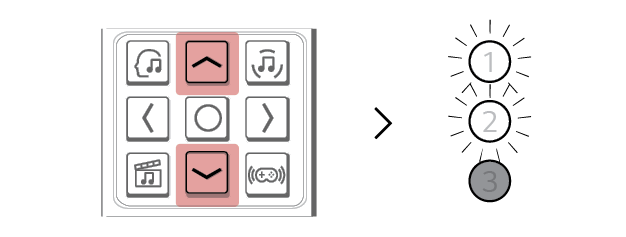

  1. c While the LED2 is blinking, press Up/Down button. If the surround sound setting is on, LED1 blinks white. If the surround setting is off, LED3 blinks white.


(On)


(Off)


Speaker sound based on input channels

Sound Effects

Input

Output

Rear speakers not connected

Rear speakers connected

AI SOUND PRO

Sound customized with artificial intelligence

2.0 channels



5.1 channels

STANDARD

You can enjoy optimized sound.

2.0 channels



5.1 channels


CINEMA

Cinematic 3D sound

2.0 channels



5.1 channels

GAME

Optimized sound for game

2.0 channels



5.1 channels
