Connecting to a USB Storage Device

Enjoy high-quality sound by connecting a USB storage device containing music files to the product.

Connecting the product to a USB storage device

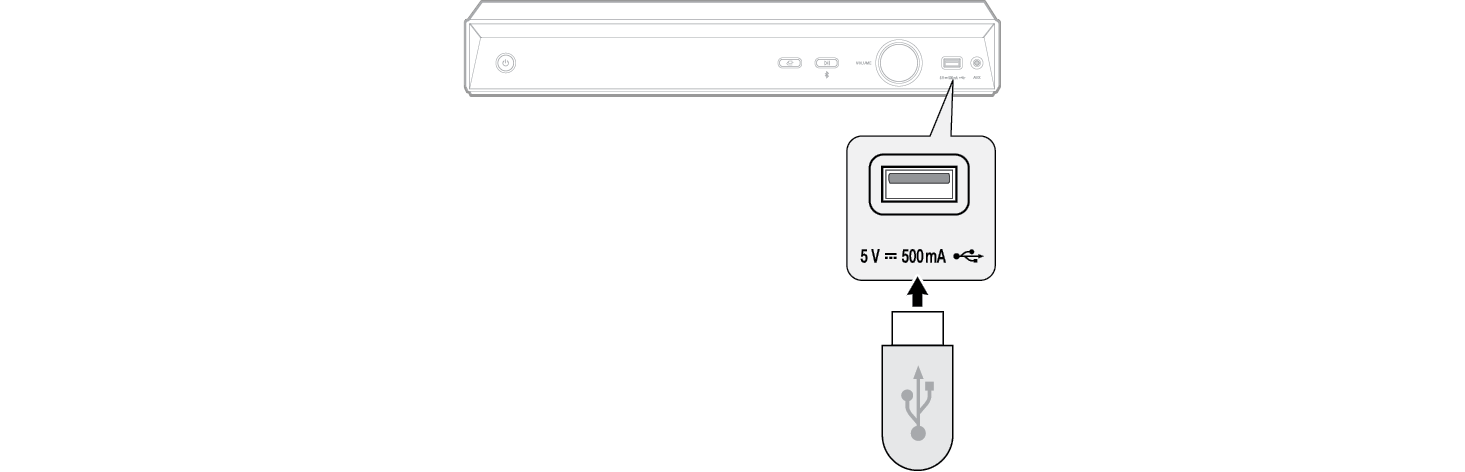

  1. a Plug the USB storage device into the USB port on the front of the receiver.
  • • The product cannot play any devices connected via a USB storage device hub or a USB storage device cable.
  • • The product cannot be connected to any USB storage device, USB type MP3 player, or card reader that requires a separate device drive to be installed.

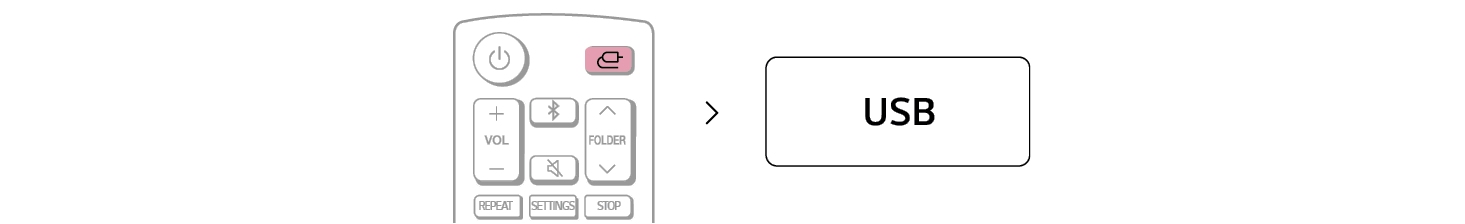

  1. b Press the Function 144654.png button repeatedly until “USB” appears on the status display.



  1. c When the product is properly connected to a USB storage device, the number of music files in the USB device will appear on the status display. Press the OK(Play/Pause) 144638.png button to enjoy the music.


144628.png Note
  • • It is recommended that you purchase a separate USB gender changer to make it easier to plug in and out USB storage devices.
  • • Purchase a USB gender changer with a USB 2.0 extension cable.
  • • USB devices with a large storage volume may take several minutes to browse through files.
  • • LG Electronics is not responsible for any data loss. Please always back up the data on your USB storage device to minimise damage caused by data loss.
  • • Only FAT16/FAT32/NTFS formats are supported. exFAT format is not supported.
  • • Only FAT16/FAT32 formats are supported during USB recording. NTFS format is not supported during USB recording.
  • • Only FAT16/FAT32 formats are supported deleting a file/folder or format. NTFS format is not supported deleting a file/folder or format.
  • • Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

  • • MP3 player
  • • Flash MP3 player
  • • USB flash device
  • • USB 2.0

This product may not recognise some USB storage devices.

Playable file specifications

File extension

Sampling frequency / Bitrate

MP3

16 kHz - 48 kHz / 8 kbps - 320 kbps
  • • Number of playable files: Up to 2,000
  • • Maximum number of directories: Up to 512
  • • This product cannot play files protected by DRM (Digital Rights Management).
  • • This product cannot play video files from a USB storage device.
