Connecting the Product

Please make sure to disconnect the AC power cord before making any connection between the receiver and any other device.

Connecting the speakers

To connect the speakers to the receiver, insert the wires in the following order.

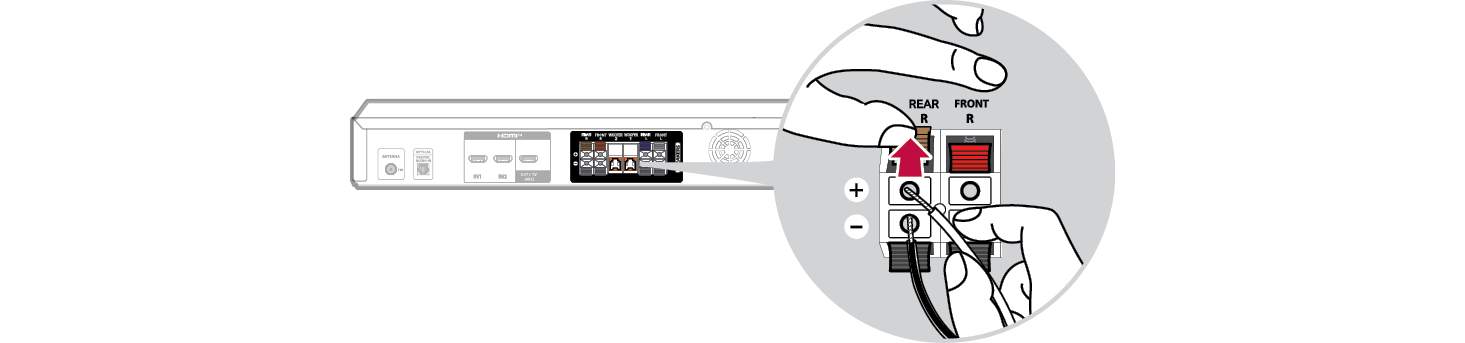

  1. a Press each plastic finger pad to open the connection terminal and insert the wires.

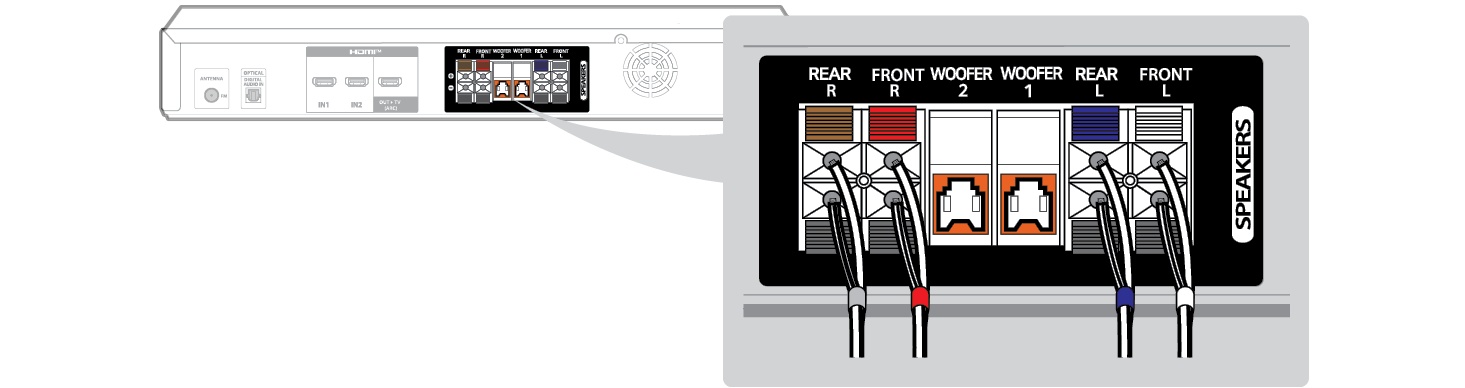

  1. b Match each wire’s coloured band to the same coloured connection terminal on the receiver. Connect the black striped cable to the negative terminal and the other cable to the positive terminal.



Colour

Speaker

Grey

REAR R

Red

FRONT R

Orange

WOOFER 1

Orange

WOOFER 2

Blue

REAR L

White

FRONT L

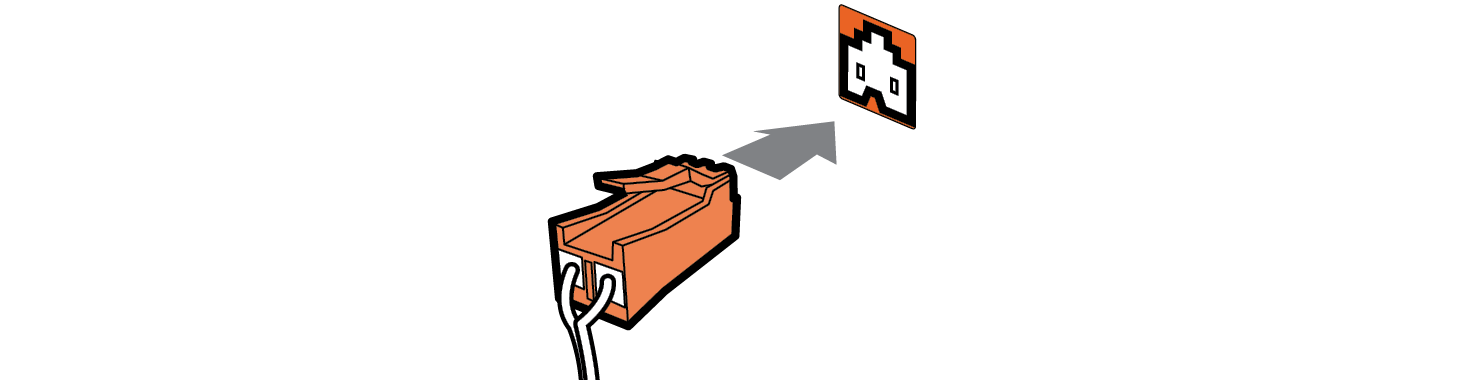

  1. c Connect a woofer cord to the receiver. When connecting a woofer cord to the receiver, insert the connector until it clicks.



  1. d Plug the power cable into an outlet.




125943.png Note
  • • Do not try to lift the speaker alone. It needs two persons to lift the speaker. Otherwise it may result in the speaker malfunction and cause personal injury and/or property damage.
  • • Check the volume level before playing music to prevent infirm, child, and pregnant women from being shocked by the sudden and loud sound from the unit.
  • • Do not use the product in a limited space. It may damage a person’s hearing. It is recommended to use it in a wide space.
  • • The speakers contain magnet parts, so colour irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.
  • • Connect the product to the speakers and cables provided at the time of product purchase.
  • - If you connect the product to speakers or cables other than those provided at the time of product purchase, there can be a deterioration of sound quality or a speaker malfunction.
  • • When you connect speakers to the product, connect only one speaker to the output port that fits the speaker.
  • - If you connect multiple speakers to one output port, it may cause a product or speaker malfunction.

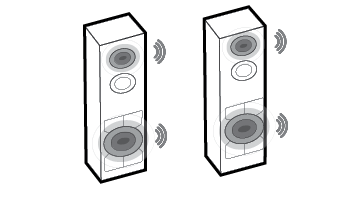

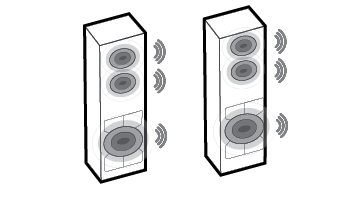

Speaker sound based on input channels

Sound Effects

Input

Output

AI SOUND PRO

Sound customised with artificial intelligence

2.0 channels


5.1 channels or more


CLEAR VOICE

Voice sound clear, improving the quality of voice sound

2.0 channels


5.1 channels or more


STANDARD

You can enjoy optimised sound.

2.0 channels


5.1 channels or more


BASS BLAST (BASS BLAST+)

Sound with reinforced bass

2.0 channels


5.1 channels or more

FOOTBALL

Realistic sound like in a stadium

2.0 channels


5.1 channels or more

CINEMA

Cinematic 3D sound

2.0 channels


5.1 channels or more

GAME

Optimised sound for game

2.0 channels


5.1 channels or more


MUSIC

You can enjoy better sound optimised for music

2.0 channels


5.1 channels or more
