Sound Bar Quick Guide

Installing and using the Product

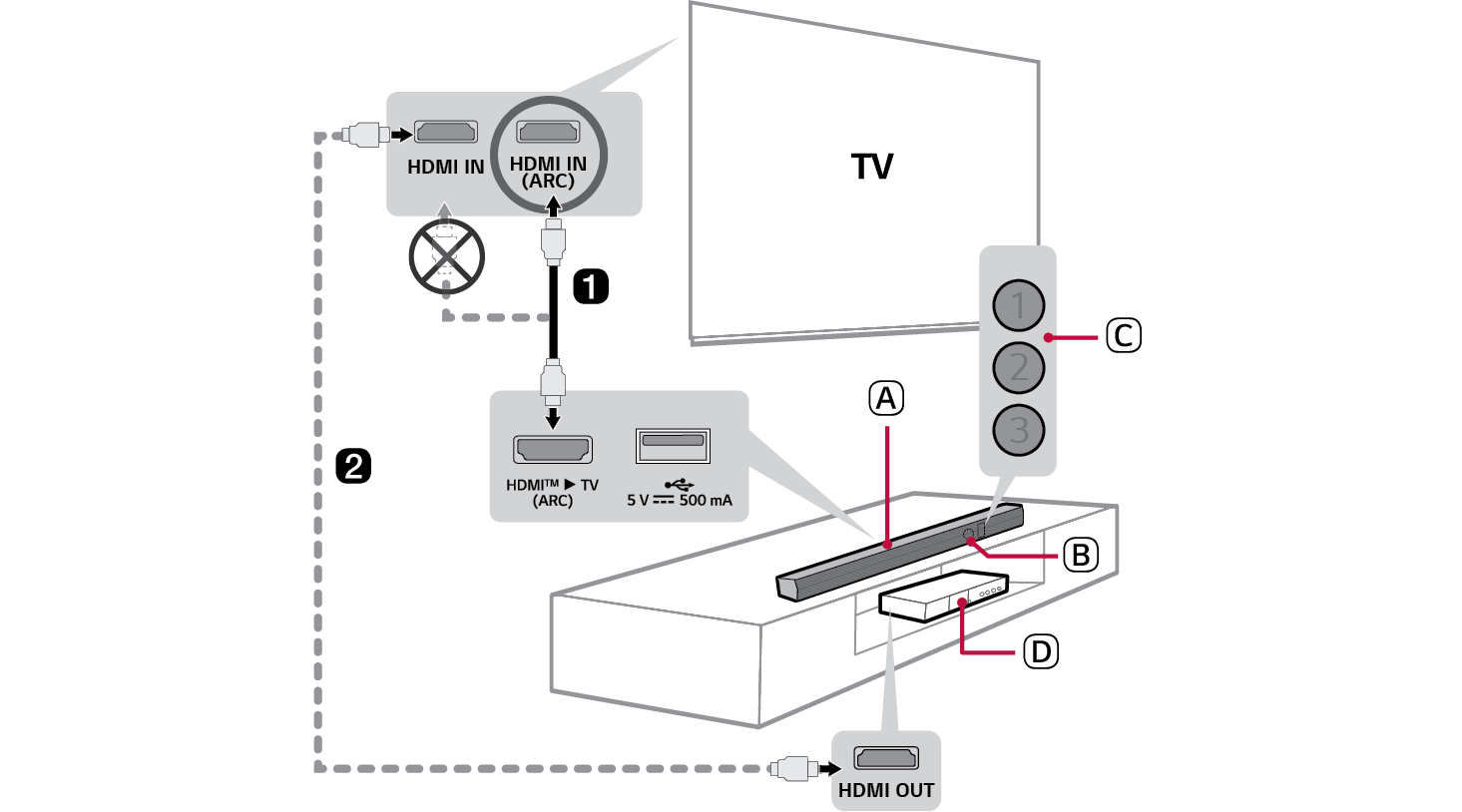

A Soundbar
B Remote Control Receiver
C Status LED (ABC)
D External Device - (Blu-ray player, game console, etc.)
b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the TV via an HDMI cable.
c Connect to power and then press the Power button to turn on the soundbar. ([ See "Connecting the Product" on page 5.)
d Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 24.)
A Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
B Press the Bluetooth pair button. After a moment, LED1 and LED2 blink white.
C Find and select the product on your smartphone. The product should appear as “LG S20A(XX)”.
D When the product is connected to your smartphone via Bluetooth, LED1 and LED2 light up white.
e Connecting to the LG ThinQ app ([ See “Connecting with the product via LG ThinQ app” on page 27.)
A Install the LG ThinQ app on Google Play or the App Store.
B Run the LG ThinQ app and follow the instructions.
C The product will connect to your smartphone and you can control the product with LG ThinQ app.

Table of Contents

Soundbar Quick Guide

2 Installing and using the Product

Installation

5 Connecting the Product

Exploring the Product

6 Front

11 Back

12 Exploring Remote Control

Various settings for convenience

15 Convenient functions

16 How to change the settings

17 Sound tuning

18 Voice feedback function

Connecting to the TV

19 Connecting via Bluetooth

20 Connecting with an HDMI Cable

Connecting to an External Device

22 Connecting with an HDMI Cable

Using the Product as an Audio System

24 Connecting via Bluetooth

27 Connecting with the product via LG ThinQ app

27 Installing the LG ThinQ app and registering the product

29 Connecting to a USB Storage Device

Safety Precautions

32 Safety and Regulatory

35 Prevention of product misuse

Before Reporting Product Malfunction

39 Troubleshooting

Appendix

42 Specifications

43 Registered Trademarks and Licenses

44 Open Source Software Notice Information

45 Handling the Product

Installation
