Connecting with an HDMI Cable

Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich sound.

Connecting an external device via HDMI

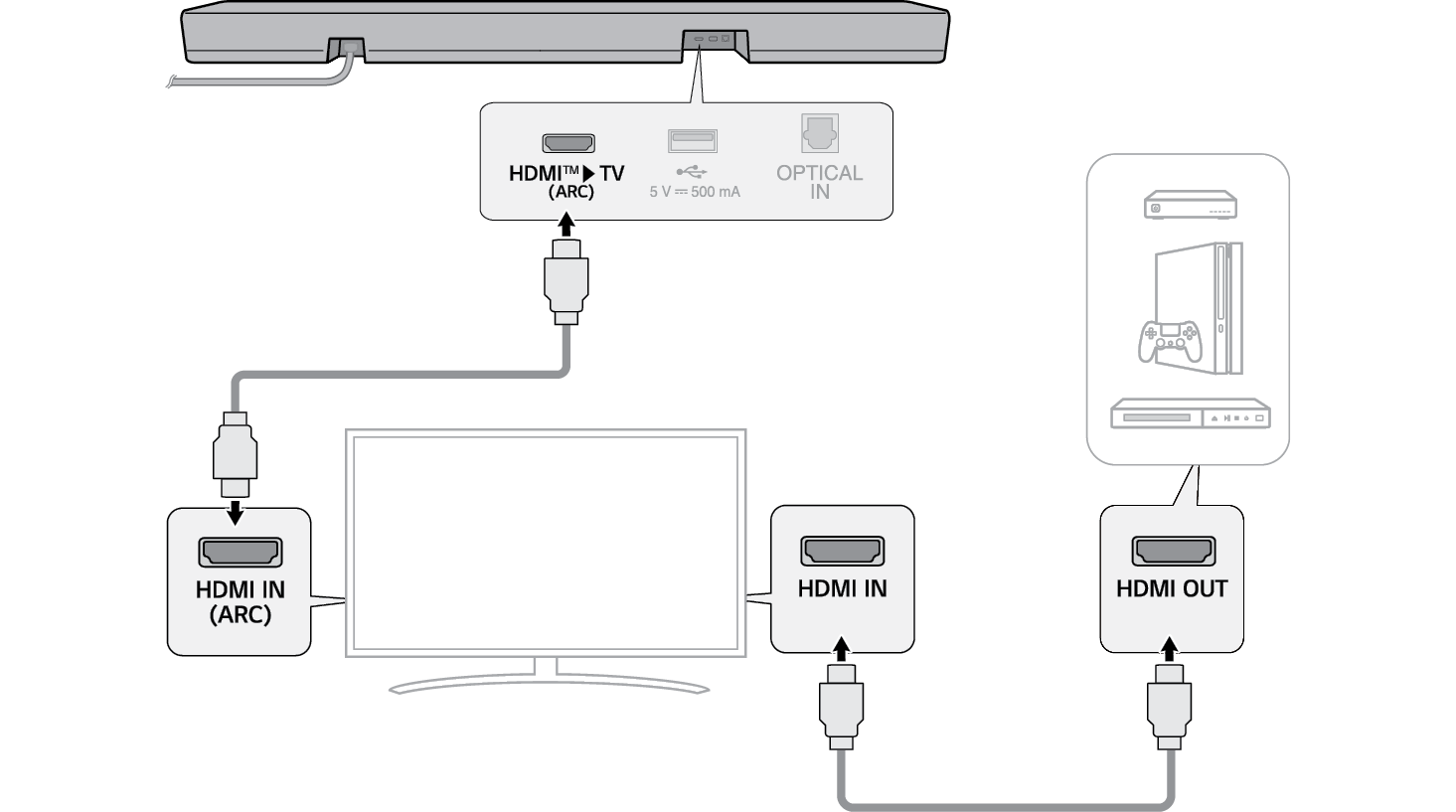

  1. a Connect an external device such as a Set-top box, DVD or Blu-ray player. Following the picture below, connect the HDMI OUT terminal of the device to the HDMI IN terminal on the TV.
  2. b Using the HDMI cable, connect the HDMI™ d TV (ARC) terminal on the back of the product to the HDMI IN (ARC) terminal on the TV.



  1. c Press the Function 129568.png button repeatedly until LED1 lights up white.



  1. d When the external device is properly connected to the product, you can listen to the sound of the device.


129586.png Note
  • • Please check the audio output settings in the Settings menu of your external device (ex. Blu-ray player or TV). The audio output should be set to [No encoding], [Bitstream], [Auto], or [Pass through]. For more information on how to set the output, please refer to your external device’s user manual.
  • • Use a certified cable with the HDMI logo.
