Wi-Fi Soundbar
Soundbar Quick Guide

Sound Bar Quick Guide

Installing and using the Product

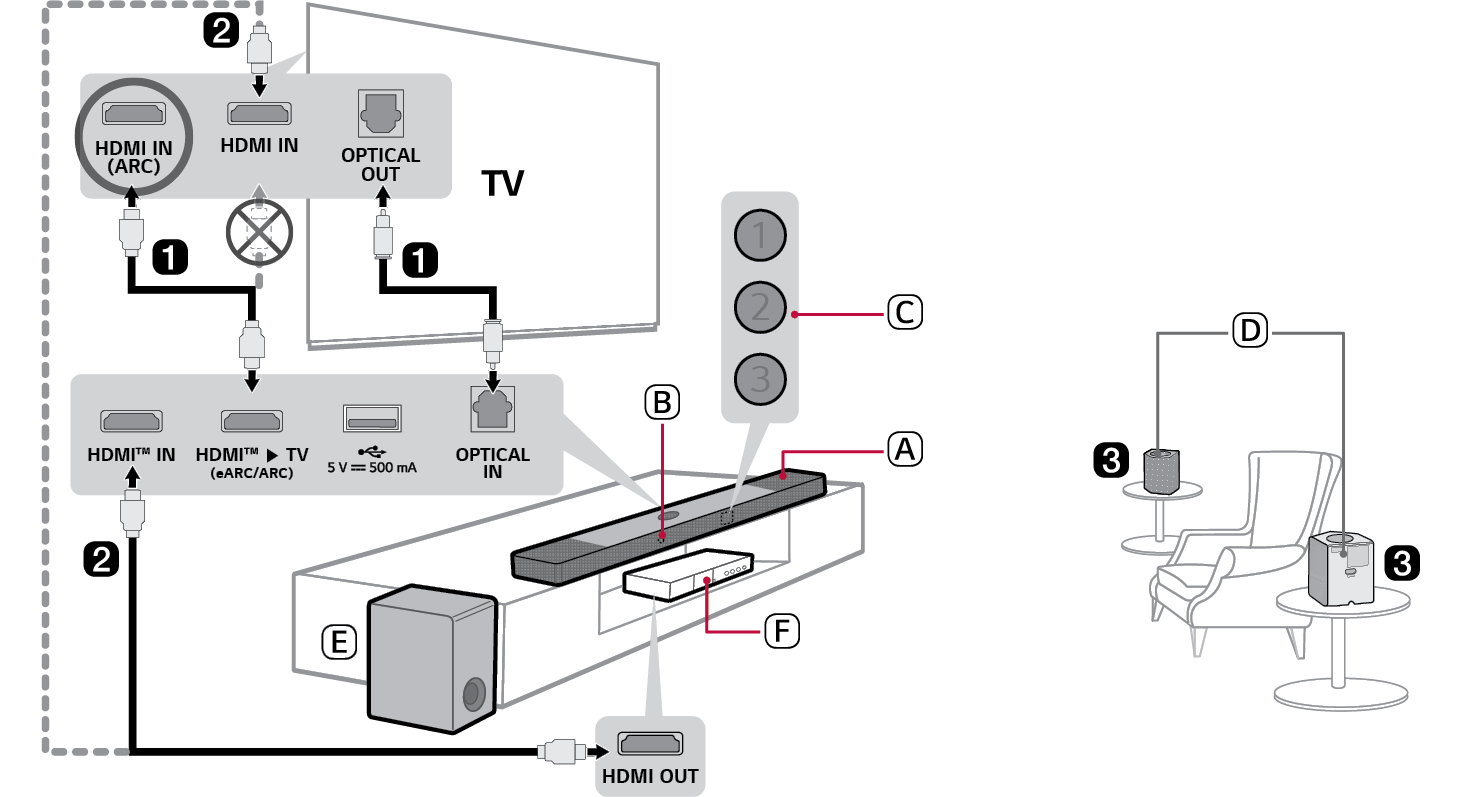

  1. a Connect the soundbar to your TV via an optical cable or an HDMI cable.



  1. A Soundbar
  2. B Remote Control Receiver
  3. C Status LED (ABC)
  4. D Wireless Rear Speakers
  5. E Wireless Subwoofer - Install it close to the soundbar.
  6. F External Device - (Blu-ray player, game console, etc.)
  1. b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the soundbar or to the TV via an HDMI cable.
  2. c Connect to power in the following order: wireless subwoofer [ wireless rear speakers [ soundbar. Then, turn on the soundbar. When the connection is automatically established with the soundbar, the LEDs on the wireless subwoofer and wireless rear speakers will light up in green. ([ See “Connecting the Product” on page 12.)
  3. d Using the product with your TV ([ See “Connecting with an Optical Cable”, “Connecting with an HDMI Cable”, “Connecting via Bluetooth”, “Connecting an external device via HDMI A” on page 39, 41, 43, 44.)
  4. A Press the Function86575.png button repeatedly until LED1 lights up white. If you are using an external device that is connected to HDMI™ IN on the soundbar, press the Function131155.png button repeatedly until LED1 lights up golden yellow.
  5. B On your TV's settings, set the output speaker to [HDMI ARC], [Optical], [LG WOWCAST], or [External Speaker].
  6. e Connecting the product to your smartphone via Wi-Fi ([ See “Connecting with the product via LG ThinQ app” on page 22.)
  7. A Connect your smartphone to Wi-Fi.
  8. B Install the LG ThinQ app on Google Play or the App Store.
  9. C Run the LG ThinQ app and follow the instructions.
  10. D The product will connect to your smartphone and you can control the product with LG ThinQ app.
  11. f Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 48.)
  12. A Tap the Settings86634.png button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (86619.pngOff > 86612.pngOn)
  13. B Press the Bluetooth pair91388.png button. After a moment, LED1 and LED2 blink white.
  14. C Find and select “LG_Speaker_S95AR_XXXX”.
  15. D When the product is connected to your smartphone via Bluetooth, LED1 and LED2 light up white.

Manually connecting the soundbar to the wireless subwoofer or wireless rear speakers ([ See “Connecting the wireless subwoofer and wireless rear speakers manually” on page 14.)

If you see a red LED on the wireless subwoofer or wireless rear speakers, it means that the soundbar is not connected to the speakers. If this is the case, connect them in the following order.

  1. A Press the Power91492.png button on the soundbar to turn it off.
  2. B Press the PAIRING button on the back of the wireless subwoofer or wireless rear speakers. Check if each LED blinks green.
  • If you still see a red LED on the wireless subwoofer or wireless rear speakers, press and hold the button on the back of the subwoofer or wireless rear speakers again.
  1. C Press the Power153760.png button on the soundbar to turn it on.
  2. D When the connection is established, you will see a green LED light on the wireless subwoofer or wireless rear speakers light up green.

Table of Contents

Soundbar Quick Guide

2 Installing and using the Product

Mounting the Product to a Wall

6 Checking before mounting to a wall

9 Mounting the Product to a Wall

11 Mounting the Wireless rear speakers to a Wall

Installation

12 Connecting the Product

16 Setting up surround sound

22 Connecting with the product via LG ThinQ app

23 Installing the LG ThinQ app and registering the product

25 Resetting the Product

Exploring the Product

26 Front

31 Back

32 Exploring Remote Control

Various settings for convenience

35 Convenient functions

36 How to change the settings

37 Sound tuning

38 Voice feedback function

Connecting to the TV

39 Connecting with an Optical Cable

41 Connecting with an HDMI Cable

43 Connecting via Bluetooth

Connecting to an External Device

44 Connecting with an HDMI Cable

47 Connecting with an Optical Cable

Using the Product as an Audio System

48 Connecting via Bluetooth

51 Connecting to a USB Storage Device

53 Using the LG ThinQ app

54 Compatible with Google Assistant

55 Works with Apple AirPlay

56 Spotify Connect

57 Works with Alexa

58 Tidal Connect

Safety Precautions

59 Safety and Regulatory

62 Prevention of product misuse

Before Reporting Product Malfunction

66 Troubleshooting

Appendix

72 Specifications

74 Registered Trademarks and Licenses

76 What You Need to Know about Network Services

76 Open Source Software Notice Information

77 Handling the Product

Mounting the Product to a Wall
