Connecting to a USB Storage Device

Enjoy high-quality sound by connecting a USB storage device containing music files to the product.

Connecting the product to a USB storage device

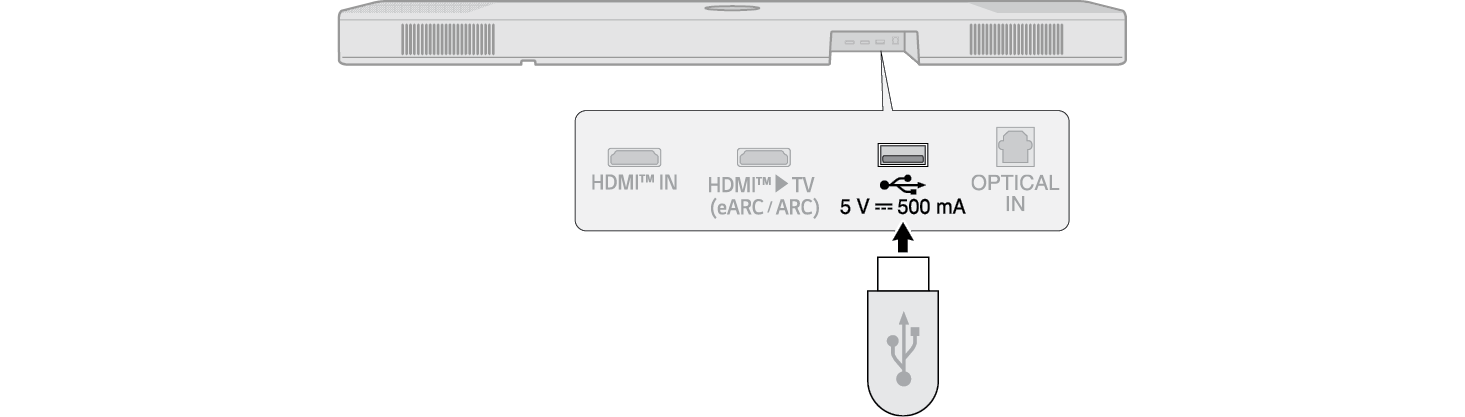

  1. a Plug the USB storage device into the USB port on the back of the product.
  • • The product cannot play any devices connected via a USB storage device hub or a USB storage device cable.
  • • The product cannot be connected to any USB storage device, USB type MP3 player, or card reader that requires a separate device drive to be installed.

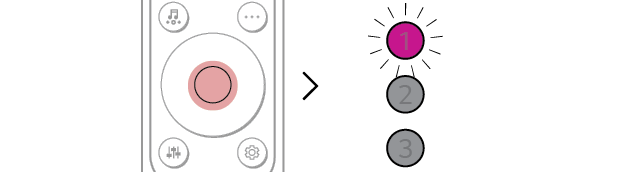

  1. b Press the Function 101949.png button repeatedly until LED1 lights up purple.

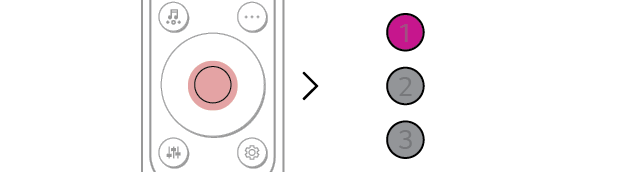

  1. c Press the Play/Pause 87592.png button on the remote control to enjoy the music.


(Pause)


(Play)



120280.png Note
  • • It is recommended that you purchase a separate USB gender changer to make it easier to plug in and out USB storage devices.
  • • Purchase a USB gender changer with a USB 2.0 extension cable.
  • • USB devices with a large storage volume may take several minutes to browse through files.
  • • LG Electronics is not responsible for any data loss. Please always back up the data on your USB storage device to minimize damage caused by data loss.
  • • Only FAT16/FAT32/NTFS formats are supported. exFAT format is not supported.
  • • Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

  • • MP3 player
  • • Flash MP3 player
  • • USB flash device
  • • USB 2.0

This product may not recognize some USB storage devices.

Playable file specifications

File extension

Sampling frequency / Bitrate

MP3

32 kHz - 48 kHz / 8 kbps - 320 kbps

AAC

32 kHz - 48 kHz / 8 kbps - 320 kbps

OGG

32 kHz - 48 kHz / 64 kbps - 320 kbps

File extension

Sampling frequency

FLAC (16 bit/24 bit)

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

WAV (16 bit/24 bit)

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • • Number of playable files: Up to 2,000
  • • Maximum number of directories: Up to 200
  • • This product cannot play files protected by DRM (Digital Rights Management).
  • • This product cannot play video files from a USB storage device.
