Sound Bar Quick Guide

Using the Party Link

You can connect multiple speakers. There are two ways for using the Party Link : Dual mode and Multi mode.

Dual mode

Party Link Dual mode lets you enjoy stereo sound with two same model speakers.

1. a Connect the speaker and a smartphone first. ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 14.)
2. b Press the Play/Pause button to play the music, then press the Party Link by Auracast™ button twice quickly.
3. c Press the Party Link by Auracast™ button on the another speaker twice quickly.
4. d You can see the Dual mode LED on the speakers.

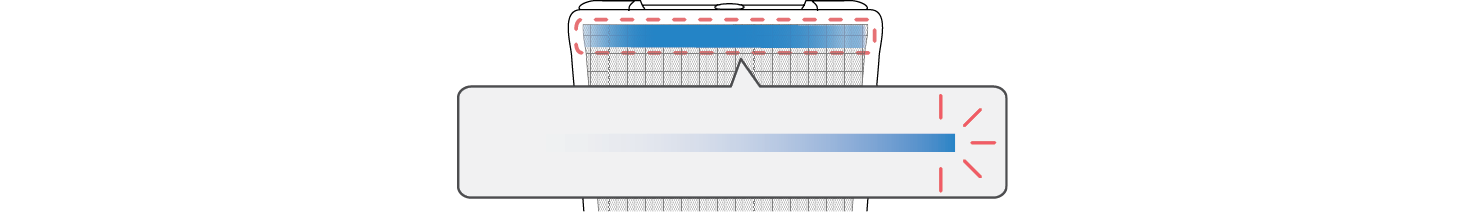

• Main speaker : The lighting Indicator turns on and output Left channel sound.

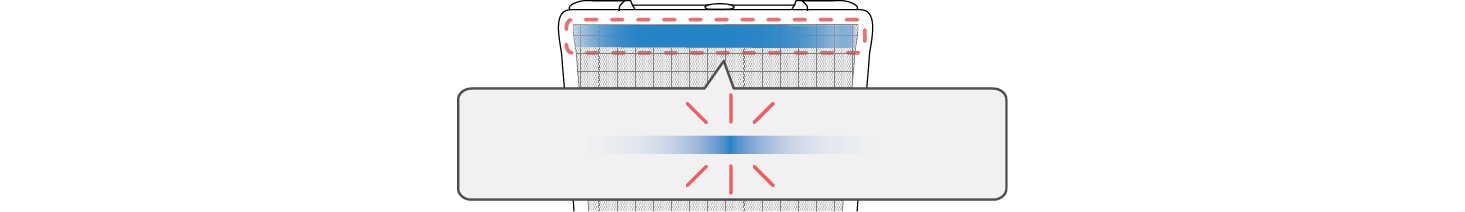

• Other speaker : The lighting Indicator turns on and output Right channel sound.

(Main speaker)

(Other speaker)

Multi mode

Party Link Multi mode lets you enjoy more powerful sound with multiple speakers.

1. a Connect the speaker and a smartphone first. ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 14.)
2. b Press the Play/Pause button to play the music, then press the Party Link by Auracast™ button.
3. c Press the Party Link by Auracast™ button on the another speaker.
4. d You can see the Multi mode LED on the speakers.

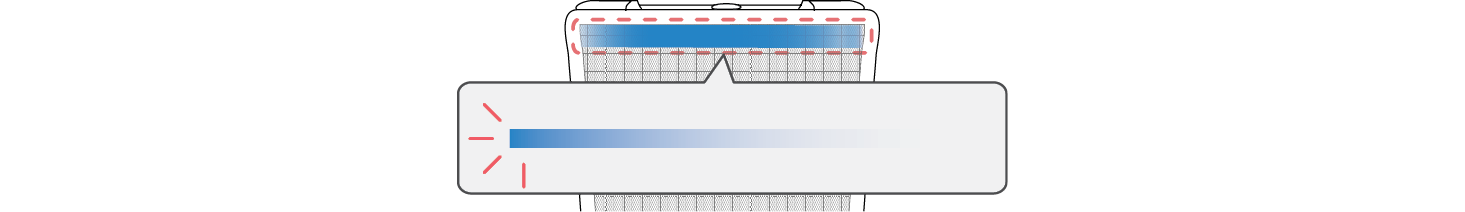

• Main speaker : The lighting Indicator turns on and the speaker outputs sound.

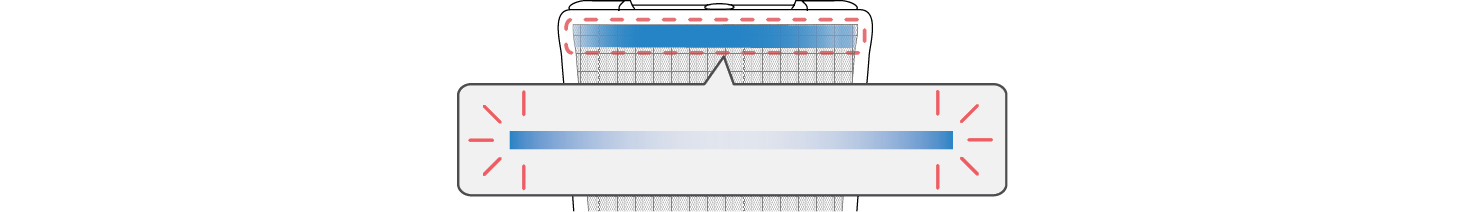

• Other speakers : The lighting Indicator turns on and speakers output sound in sync with the main speaker.

(Main speaker)

(Other speaker)

Note

The Main speaker connects only one Bluetooth device. When using Dual/Multi mode to connect multiple speakers, the multi phone pairing connection is not supported. When you turn the speakers off and on again, the speakers do not automatically reconnect. To change the connected Bluetooth device in Dual/Multi mode, press the Bluetooth button. When you hear a beep sound and the lighting Indicator blinks, connect to the desired Bluetooth device. Keep the distance between the speakers as close as possible each other. Depending on the network environment, this function may not work well. The screen of a device such as a TV and the sound from the speaker may not match. When multiple speakers are connected in Multi mode, volume and EQ linkage between the Main speaker and Other speakers is not available. When connecting Dual/Multi mode, to express various colors, the lighting color does not change to the same as the connected device. Press and hold the Party Link by Auracast™ button on one of the connected speakers for 2 seconds to cancel Dual Mode or Multi mode.

Interworking multiple speakers

This speaker interworks with other LG Bluetooth speakers such as STAGE301 and BOUNCE/GRAB.

Dual mode	Same model (e.g. STAGE301/STAGE301) Main/Other
Volume	O
EQ	O
Lighting	O
Auto Power Management	O
Sleep Timer	O

Multi mode	Same series (e.g. STAGE301/BOUNCE/GRAB) Main/Other
Auto Power Management	O
Sleep Timer	O

Connecting to the LG ThinQ App
