Sound Bar Quick Guide

Connecting the product to a USB storage device

You can enjoy sound by connecting a USB storage device with music files to the product.

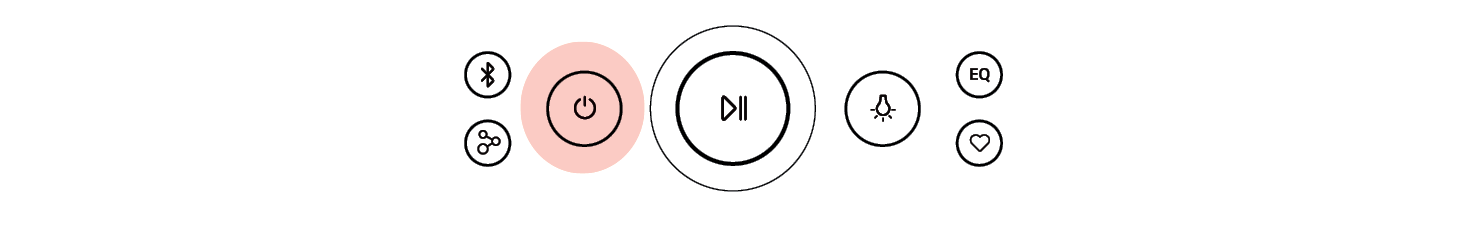

1. a Press the Power button to turn on the product.

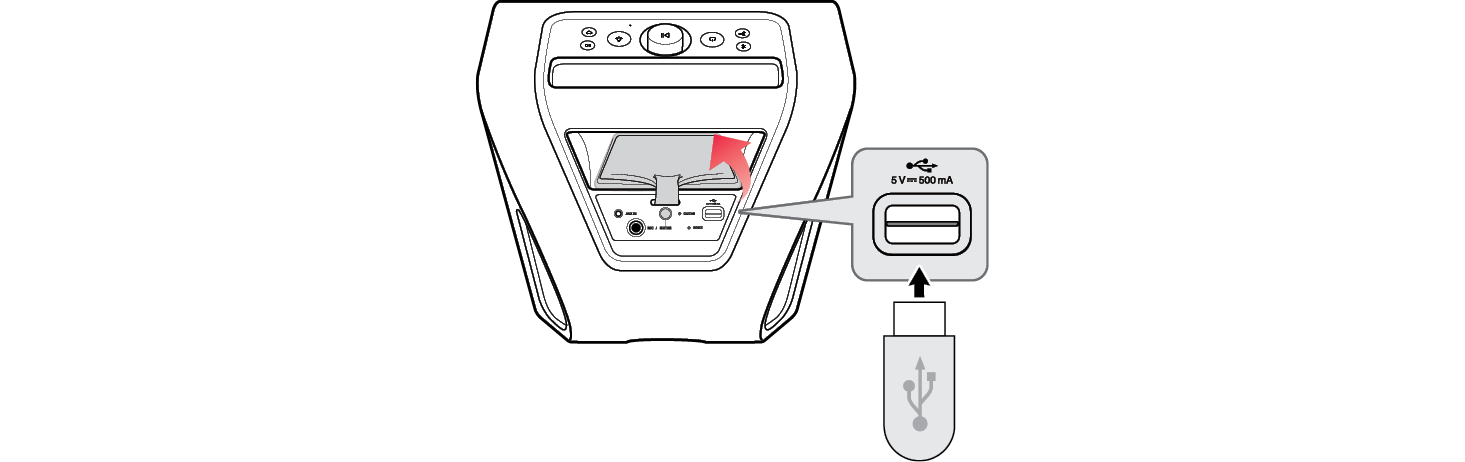

1. b Open the jack cover on the back of the product and plug the USB storage device into the USB terminal.

• The product cannot play any devices connected with a USB storage device hub or a USB storage device cable.
• The product cannot be connected to a USB storage device, USB type MP3 player or card reader that requires a separate device drive to be installed.

Function	How to Use
Changing USB to Bluetooth	Press the Bluetooth button.

Note

While USB is plugged in, If you want to change the function from BT to USB, remove and reconnect the USB.

Note

USB devices with large storage volume can take several minutes or more to browse files. LG Electronics is not responsible for any data loss. Please always back up the data to minimize damage caused by data loss. Only FAT16/FAT32 formats are supported. exFAT/NTFS format is not supported. When the USB storage device is not properly recognized, the lighting indicator will blink. Check if the USB storage device is supported and plug in again. Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

• USB flash device
• USB 2.0

This product may not recognize some USB storage devices.

Playable file specifications

File extension	Sampling frequency / Bitrate
MP3	32 kHz - 48 kHz / 8 kbps - 320 kbps

• Number of playable files: Up to 2,000
• Maximum number of directories: Up to 200
• This product cannot play files protected by DRM (Digital Rights Management).
• This product cannot play video files from a USB storage device. Connecting to an External Device
