Portable Bluetooth Speaker
Charge

Sound Bar Quick Guide

Checking Battery Status

Charging Status

With the power off and the charging cable is connected, You can see the charging status.

Button backlight

LED Status / Battery Status

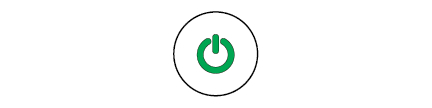

Turns on green for 15 seconds. / Charging is complete.

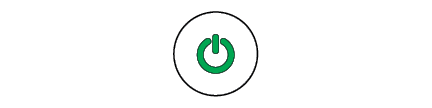

Turns on in green. / The battery level is above 70 %. / Charging is in progress.

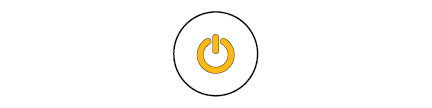

Turns on in amber. / The battery level is between 20~70 %. / Charging is in progress.

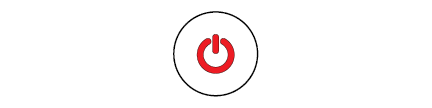

Turns on in red. / The battery level is below 20 %. / Charging is in progress.


24767.png Note
  • Playing tracks while charging may lengthen the charging time.
  • When the speaker’s battery is fully charged with the power off, the button backlight turns on green for 15 seconds and then off.
  • When connecting to Party Link, the Party Link connection status indicator takes precedence over the battery indicator.


> CAUTION
  • Charge the battery at an ambient temperature of 5 °C to 35 °C (41 °F - 95 °F). When the battery is out of the chargeable temperature range, the button backlight and lighting indicatior alternates between amber and red, and charging stops.
  • If you charge while using the speaker, the battery temperature may become high and charging may stop. In this case, turn off the power and charge the speaker.

Use Status

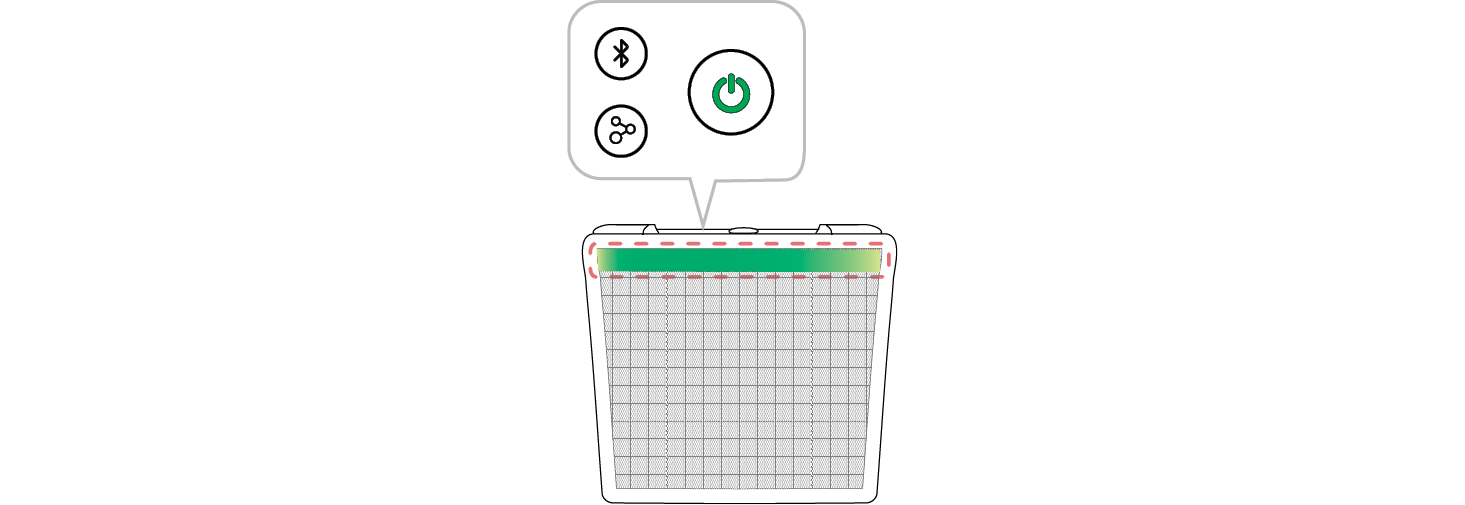

When you turn on the speaker or press and hold the Power35194.png button for 2 seconds, the Button backlight and the Lighting Indicator are turned on for 3 seconds according to the battery status.



When the power cable is not connected (Battery mode)

Lighting indicator / Button backlight

LED Status / Battery Status

36714.png 32369.png

Turns on green for 3 seconds. / The battery level is above 70 %.

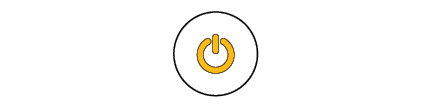

36724.png 32376.png

Turns on amber for 3 seconds. / The battery level is between 20~70 %.

36739.png 32382.png

Lighting Indicator: Turns on red for 3 seconds.

Button backlight: It blinks in red continuously. You can hear a notification sound once. / The battery level is below 20 %.

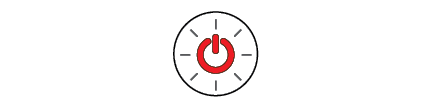

36747.png 34216.png

Lighting Indicator: Turns on light red for 3 seconds.

Button backlight: It blinks in red continuously. You can hear a notification sound once. / The battery level is below 10 %, and the battery needs to be charged.

When the power cable is connected

Lighting indicator

LED Status / Battery Status

36639.png 36630.png

It blinks green for 3 seconds / The battery level is above 70 %.

36656.png 36647.png

It blinks amber for 3 seconds / The battery level is between 20~70 %.

36678.png 36666.png

It blinks red for 3 seconds / The battery level is below 20 %.

36702.png 36692.png

It blinks alternately light red and red for 3 seconds / The battery level is below 10 %, and the battery needs to be charged.

Button backlight

LED Status / Battery Status

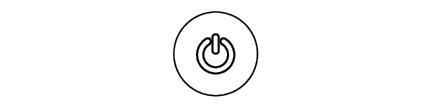

Turns on in white / Charging is complete.

(When you press and hold the Power34223.png button for 2 seconds, turns on green for 3 seconds.)


Turns on in green. / The battery level is above 70 %.


Turns on in amber. / The battery level is between 20~70 %.


Turns on in red. / The battery level is below 20 %.


24707.png Note

When the amount of battery decreases, the length of the lighting Indicator is also shortended.
