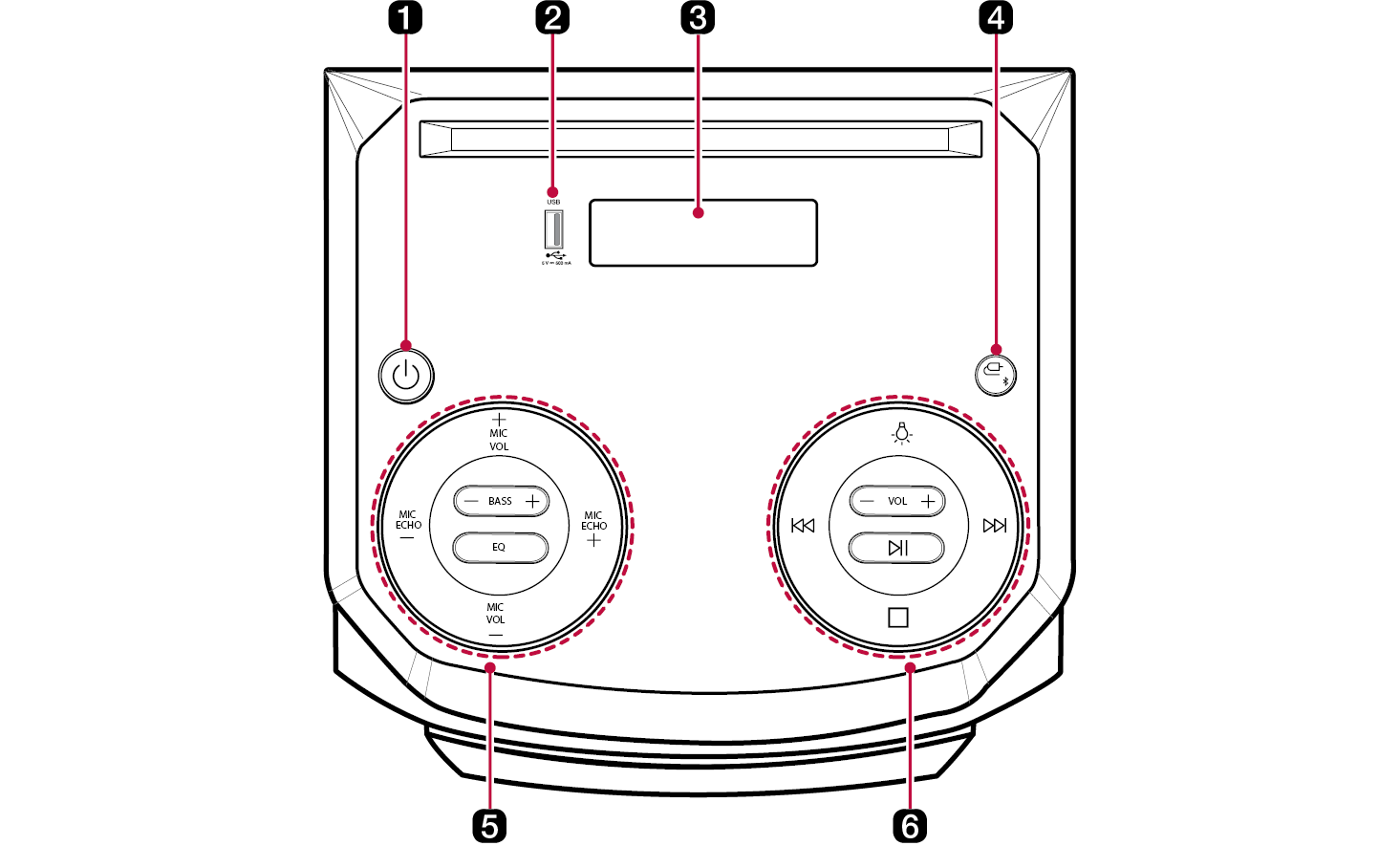

Power

It turns on/off the product.

USB port

Plug in a USB storage device to enjoy music with the product.

Status display

Options such as input mode and volume are displayed in text.

Function

Press the button repeatedly to select the desired input mode or function.

• BT : It connects the product via Bluetooth.
• USB : It connects the product to a USB storage device.
• AUX : It connects a external device.
• FM : You can listen to FM radio.
• Press and hold the Function button for 2 seconds or longer and connect the Bluetooth device. ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 13.)

MIC VOL (Microphone Volume)

When you connect your microphone to the MIC jack, you can adjust an microphone volume.

Range: 0(MIN) to 15(MAX)

MIC ECHO (Microphone Echo)

When you connect your microphone to the MIC jack, you can adjust an echo effect to the sound from the microphones.

Range: 0(MIN) to 9(MAX)

BASS

You can adjust the bass sound level as your preference. Adjust the bass sound level.

Range: -5(MIN) to +5(MAX)

EQ

Chooses sound impressions.

Lighting

Press the button repeatedly to select the desired Woofer lighting.

You can customize the Woofer Lighting mode as you want by pressing the button repeatedly.

• Lighting Mode: Party / Water / Forest / Off

Skip/Search

• Moving to the next music: Press the button once.
• Moving to the previous music: Press the button twice quickly.
• While playing a file on a USB storage device, press and hold the button. The search begins. At this time, if you release your hand from the desired part, it will play from that part.
• Selects the radio stations.

Stop

Stops playback.

VOL (Volume)

It controls the volume level.

Range: 0(MIN) to 40(MAX)

Play/Pause

Starts or pauses playback.
