Product
> Connecting to USB > Connecting the product to a USB storage device

Connecting the product to a USB storage device

You can enjoy sound by connecting a USB storage device with music files to the product.

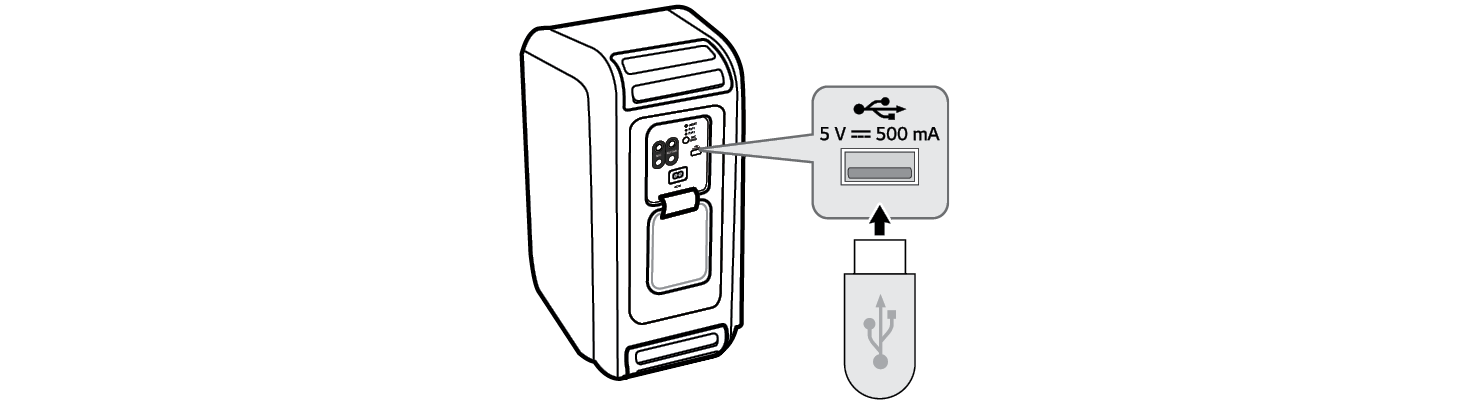

  1. a Open the back cover of the product and plug the USB storage device into the USB terminal.
  • • The product cannot play any devices connected with a USB storage device hub or a USB storage device cable.
  • • The product cannot be connected to a USB storage device, USB type MP3 player or card reader that requires a separate device drive to be installed.



  1. b Press the Power 21202.png button to turn on the product.

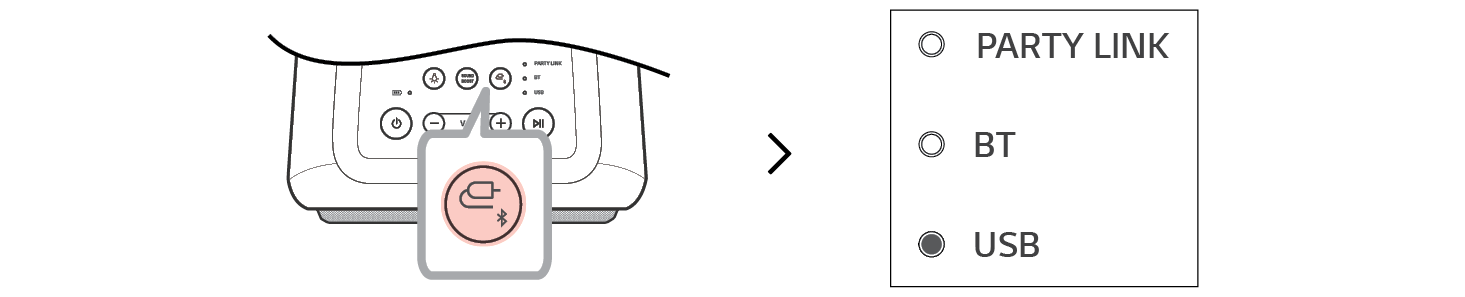

  2. c Press the Function 22305.png button on the product repeatedly to select the USB function. The USB LED will turn on.



  1. d Press the Play/Pause 22232.png button to enjoy the music.


23346.png Note
  • • USB devices with large storage volume can take several minutes or more to browse files.
  • • LG Electronics is not responsible for any data loss. Please always back up the data to minimise damage caused by data loss.
  • • Only FAT16/FAT32 formats are supported. exFAT/NTFS format is not supported.
  • • When the USB storage device is not properly recognised, the USB LED will blink. Check if the USB storage device is supported and plug in again.
  • • Use the USB port of this product only for playing a media file. You cannot charge external devices with the USB port.

USB storage devices supported

  • • USB flash device
  • • USB 2.0

This product may not recognise some USB storage devices.

Playable file specifications

File extension

Sampling frequency / Bitrate

MP3

32 kHz - 48 kHz / 8 kbps - 320 kbps

WMA

32 kHz - 48 kHz / 56 kbps - 128 kbps
  • • Number of playable files: Up to 2,000
  • • Maximum number of directories: Up to 200
  • • This product cannot play files protected by DRM (Digital Rights Management).
  • • This product cannot play video files from a USB storage device.
