Sound Bar Quick Guide

Connecting and Using the Speaker

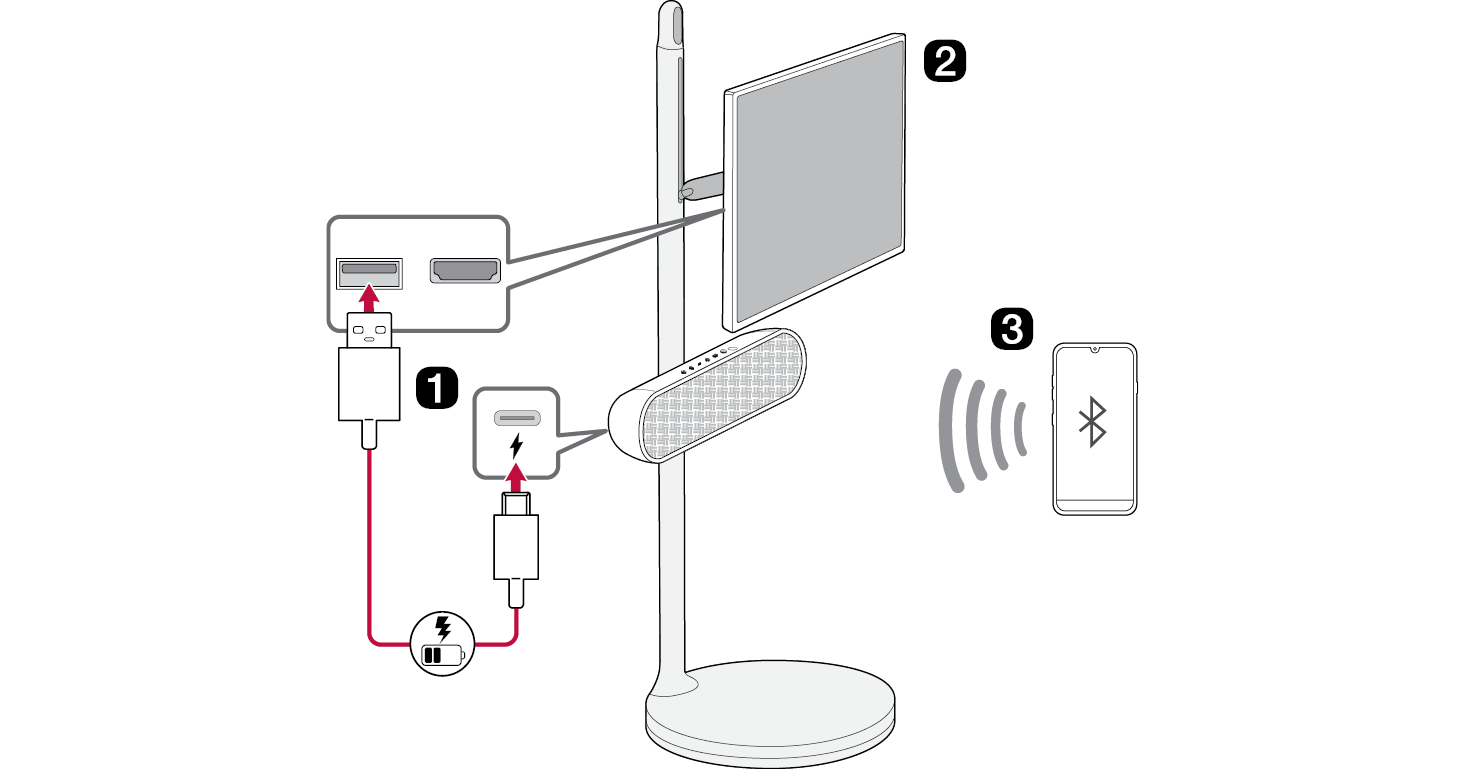

1. a Charge the speaker before using it by opening the rear cover and connect the speaker to the USB port on the StanbyME TV by the USB cable.

The speaker can be charged while the TV is on.

If the speaker is connected to the TV and powered by the battery, the usage time of the TV may be shortened. For continuous use, connect the power to the TV.

When connecting the speaker to the TV, position the TV monitor horizontally.

You can charge the speaker without the TV by using your own AC adapter for charging.

1. b Connect the speaker to the StanbyME TV via Bluetooth ([ See “Connecting the TV to the Speaker via Bluetooth” on page 17.)

• Connect automatically (Initial connection)

1. A Turn on the TV.
2. B Press the Power button on the speaker to turn it on.
3. C The TV finds and connects to this speaker so you can hear the TV sound.

• Connect manually

1. A Press the Power button on the speaker to turn it on. Bluetooth LED blinks. If the LED is not blinking press Bluetooth button.
2. B Press ;[ (Sound Out) on the StanbyME TV and select [Bluetooth device] or [Bluetooth device+Internal speaker] and then [Device list].

• If you choose [Bluetooth device], find and select “LG-XT7S(XX)” on the Connectable Devices list.
• If you choose [Bluetooth device+Internal speaker], select [Connect One Speaker]. Then find and select “LG-XT7S(XX)” on the Connectable Devices list.

1. C Once the TV is connected via Bluetooth, the Bluetooth LED will turn on and you can hear the TV sound through the speaker.
2. c Connect the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 19.)
3. A Turn off the StanbyME TV. Press the Power button on the speaker to turn it on. Bluetooth LED blinks. If the LED is not blinking press Bluetooth button.
4. B Tap the Settings button on the smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
5. C Find “LG-XT7S (XX)” on the device list on the smartphone and connect to it. Once the smartphone is connected via Bluetooth, the Bluetooth LED will turn on.
6. D On the smartphone, play a music of your choice.
7. d Connecting the LG XBOOM App ([ See “Installing app” on page 24.)
8. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
9. B Run the LG XBOOM app and use more features. (EQ, Lighting, Sleep Timer, Setting etc.)

Table of Contents

Portable Bluetooth Speaker Quick Guide

2 Connecting and Using the Speaker

Installation

5 Checking before installing with the TV

7 Affixing the Speaker to the TV

Exploring the Product

11 Top

13 Back

Charge

14 Charging the Battery

16 Checking Battery Status

Connecting to Bluetooth

17 Connecting the TV to the Speaker via Bluetooth

19 Connecting Smartphone to the Speaker via Bluetooth

22 Connecting Two Bluetooth Devices to the Speaker

Connecting to the LG XBOOM App

24 Installing app

Additional Functions

26 Setting Sound Effects

27 Using WOW Orchestra with LG StanbyME TV

27 Resetting the Speaker

28 Resetting Bluetooth

28 Using Auto Power Management

29 Using Auto power - on.

29 Voice feedback function

Safety Precautions

30 Safety and Regulatory

33 Prevention of product misuse

Before Reporting Product Malfunction

37 Troubleshooting

Appendix

39 Specifications

40 Registered Trademarks and Licenses

41 Handling the Product
