SETTINGS menu

Sound Bar Quick Guide

Settings and adjustments using the SETTINGS menu

By using the SETTINGS menus, you can make various adjustments to customise the unit.

TEST TONE menu

You can check the speakers tone by listening to the test tone from your listening position.

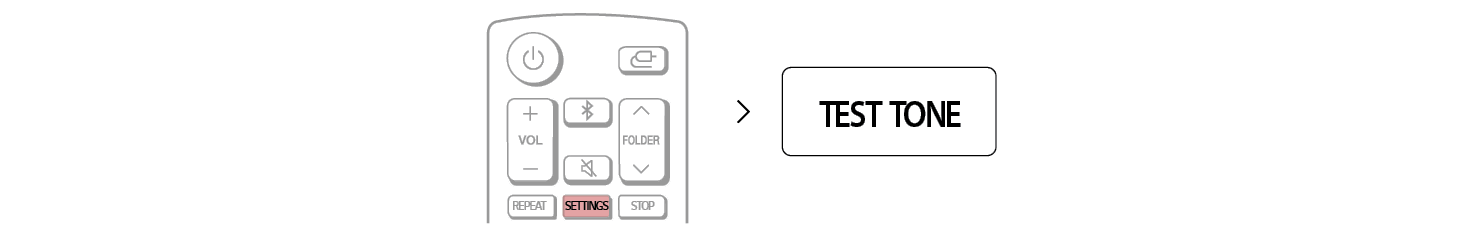

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.

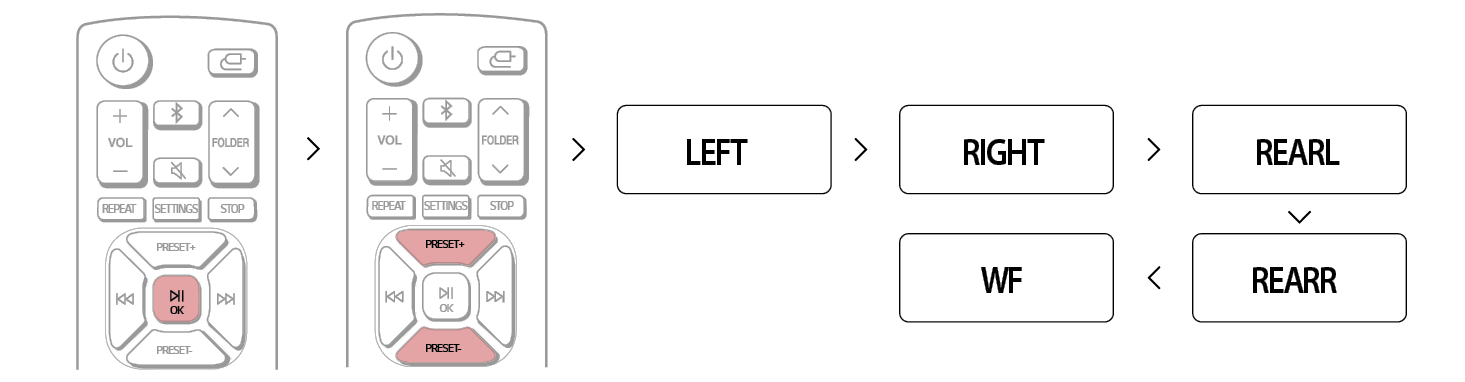

  1. b When you press the OK148691.png button on the remote control, the test tone is emitted from each speaker in sequence as follows: You can select desired speakers manually by pressing PRESET152499.png152494.png repeatedly.



  1. c You can verify each speakers tone.
  2. d Press SETTINGS button to exit the setup menu.

LEVEL menu

You can adjust the level of each speaker. These settings are applied to all sound fields.

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.

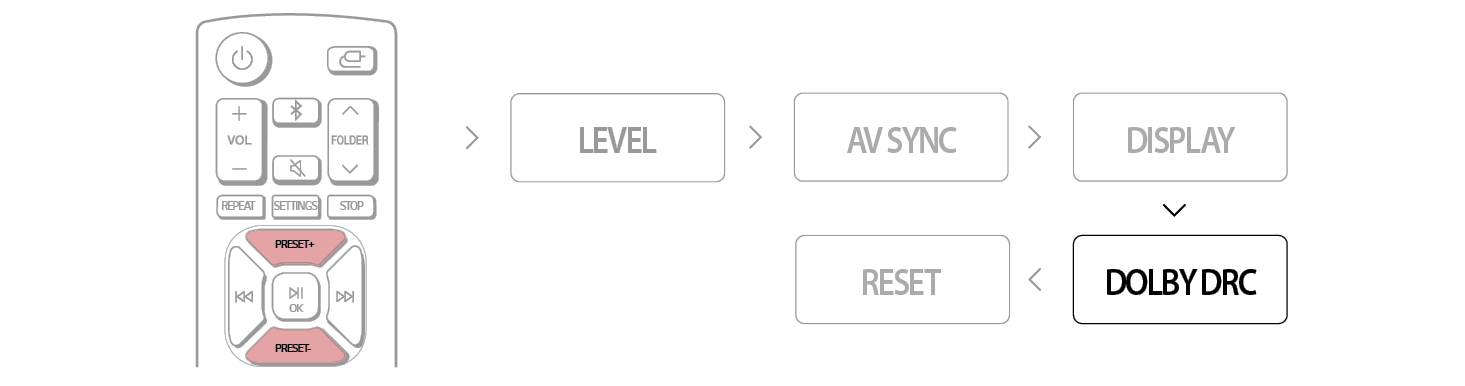

  1. b Press the PRESET152521.png152515.png button on the remote control until “LEVEL” appears on the status display.

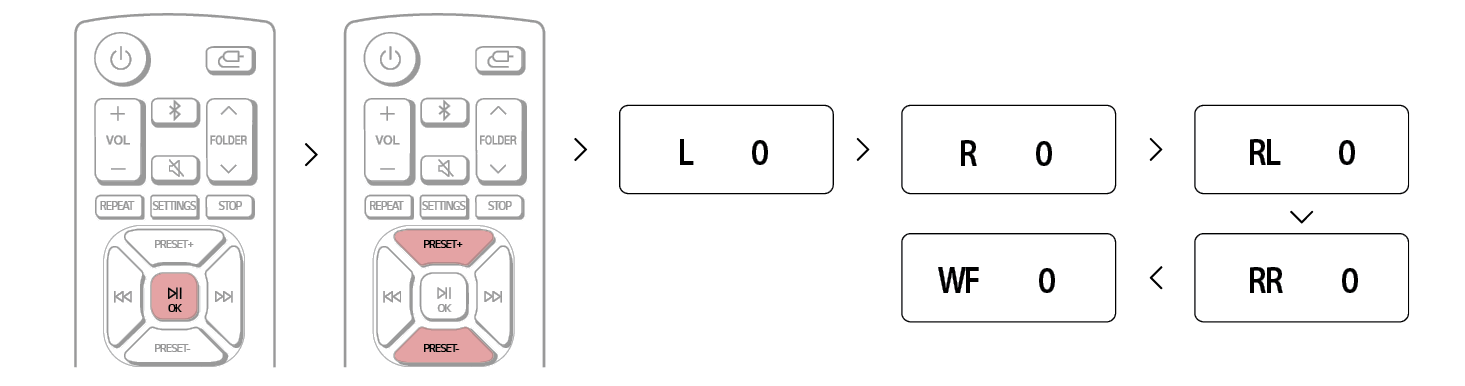

  1. c Press the OK138331.png button on the remote control. Then press the PRESET152546.png152539.png repeatedly until the desired speaker appears. The display changes cyclically in the display window as follows.:

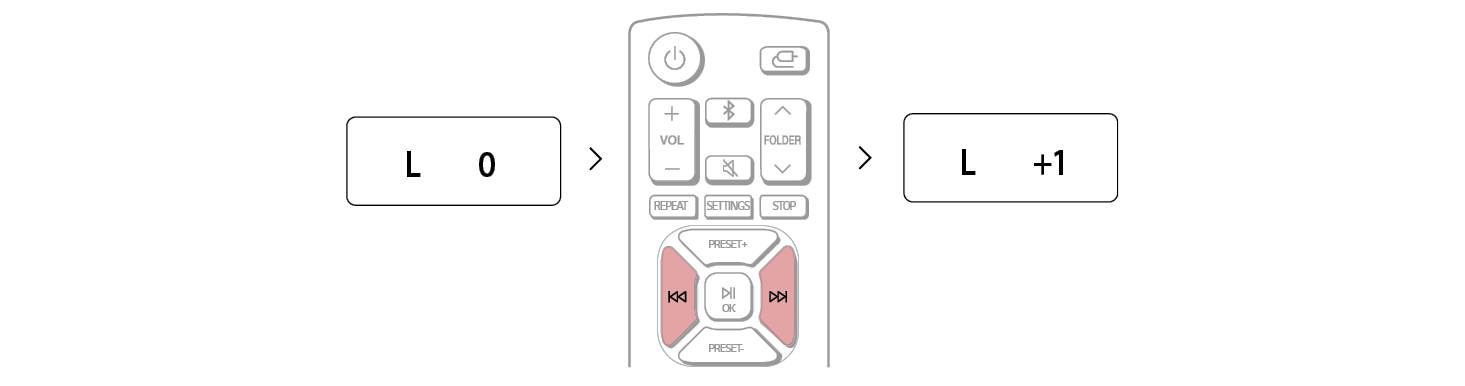

  1. d When the desired speaker is displayed, press Skip/Search138407.png138401.png to adjust the level of each speaker.



Display

Description

L

Front left speaker (- 6 to + 6)

R

Front right speaker (- 6 to + 6)

RL

Surround(Rear) left speaker (- 6 to + 6)

RR

Surround(Rear) right speaker (- 6 to + 6)

WF

Subwoofer (- 15 to + 6)
  1. e Repeat and adjust the sound level of the other speakers.
  2. f Press SETTINGS to exit the setup menu.

AV SYNC menu (Adjusting the audio delay)

You can delay the sound output using this function when the image is slower than the sound.

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.

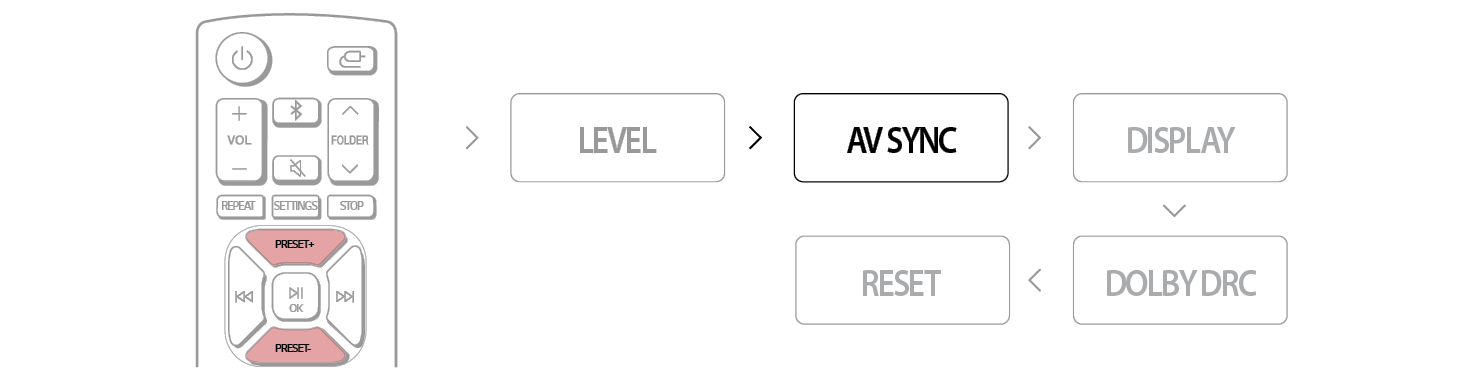

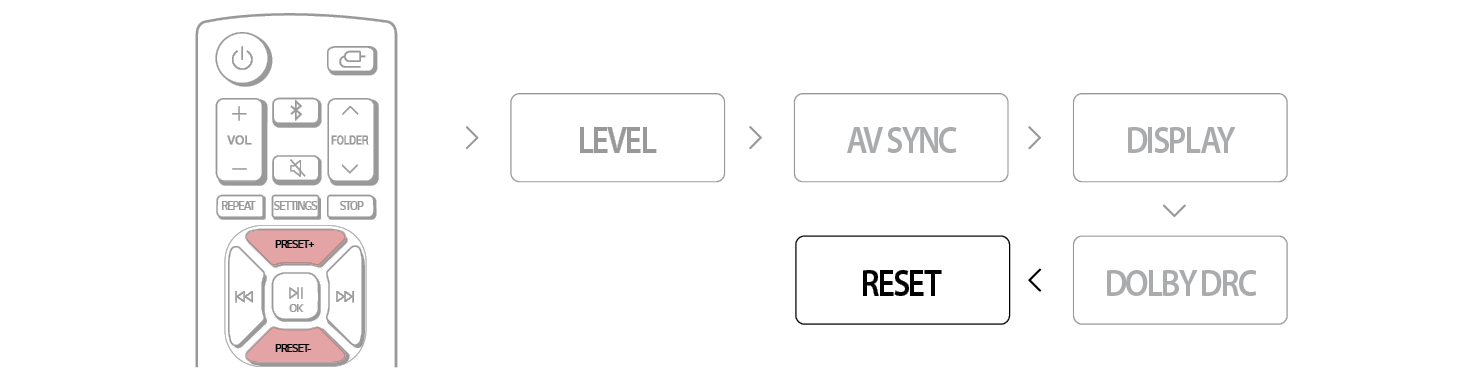

  1. b Press the PRESET152571.png152565.png button on the remote control until “AV SYNC” appears on the status display.

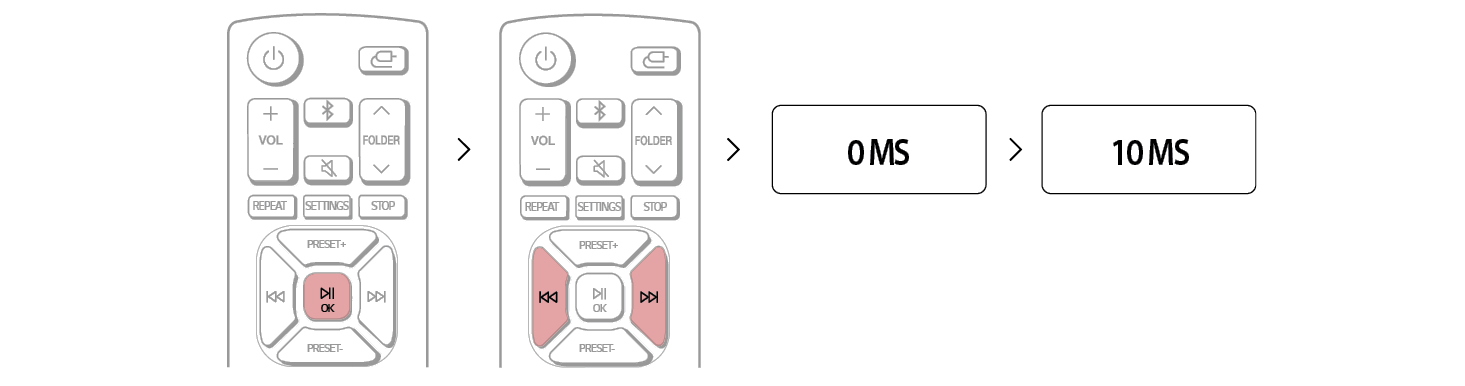

  1. c Press the OK138736.png button on the remote control. Then press the Skip/Search140962.png140957.png repeatedly to adjust the delay between sound and image. You can adjust from 0 MS to 300 MS in 10 MS steps.



  1. d Press SETTINGS to exit the setup menu.


140978.png Note
  • You may not be able to adjust the delay between sound and image perfectly using this function.

DISPLAY menu

You can set the status display mode.

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.

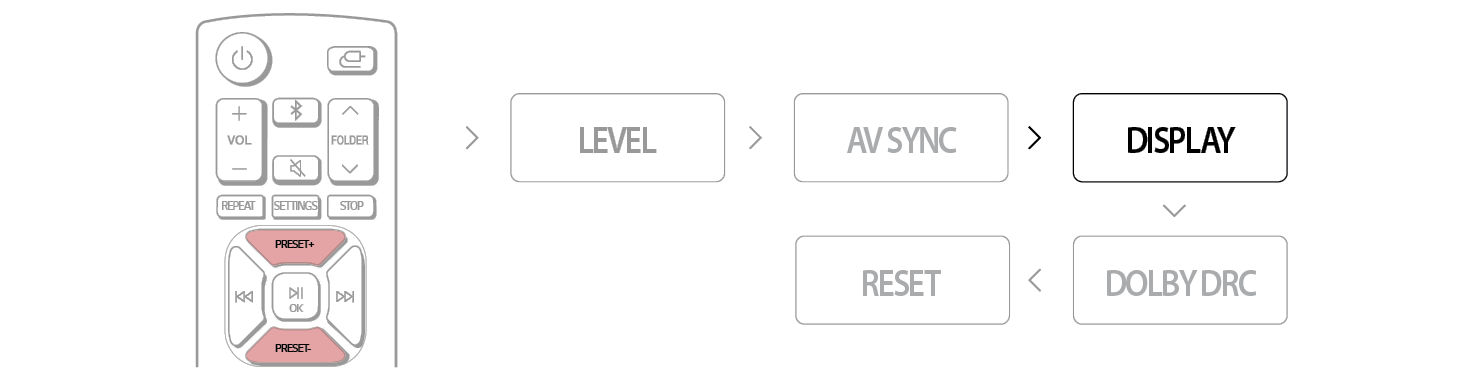

  1. b Press the PRESET152623.png152618.png button on the remote control until “DISPLAY” appears on the status display.

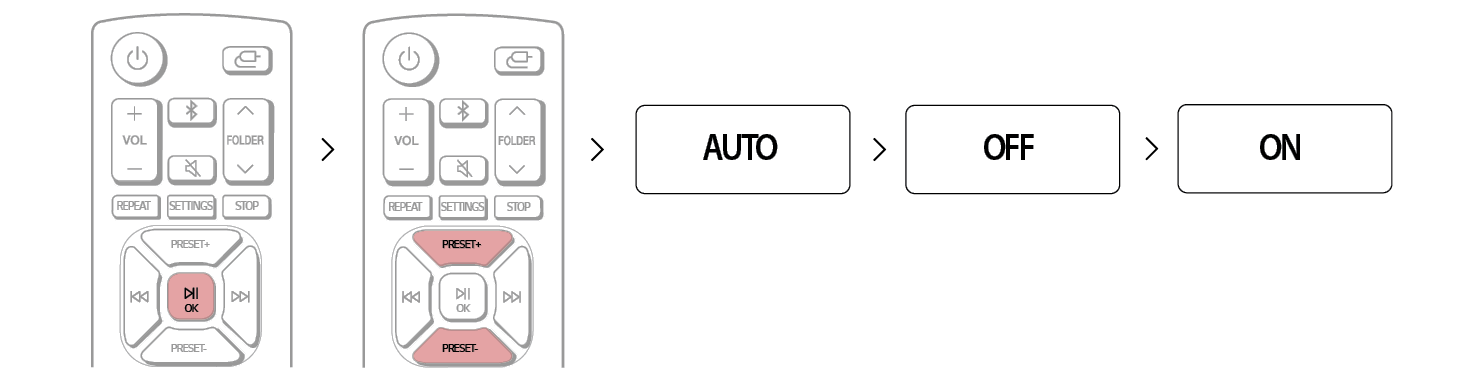

  1. c Press the OK141010.png button on the remote control. Then press the PRESET152596.png152590.png to select DISPLAY mode.



  1. d Press SETTINGS to exit the setup menu.

DOLBY DRC menu

This function allows you to listen to a movie at a lower volume without losing clarity of sound. You can compress the dynamic range of the Dolby Digital audio output.

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.



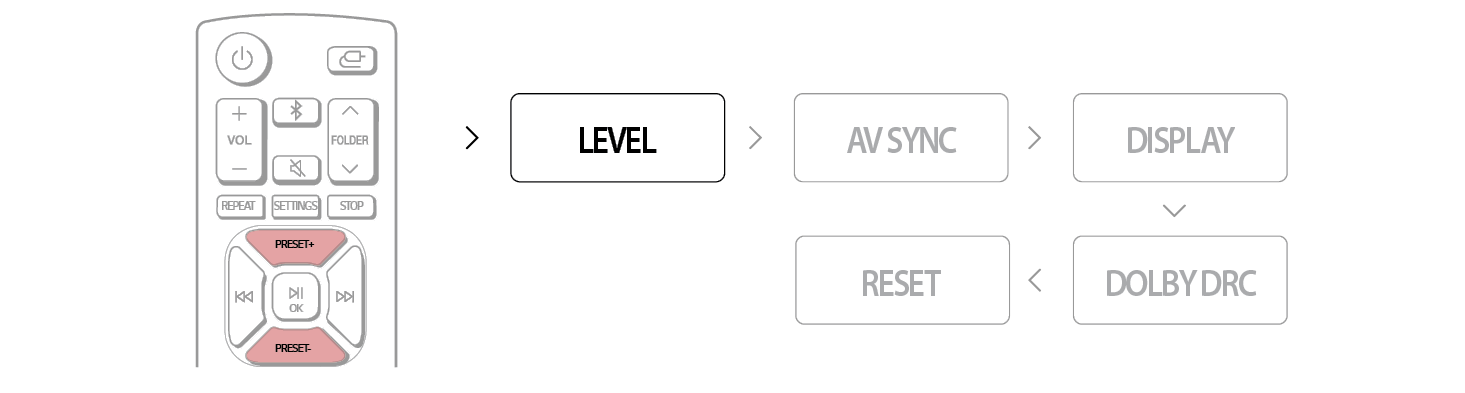

  1. b Press the PRESET152665.png152660.png button on the remote control until “DOLBY DRC” appears on the status display.



  1. c Press the OK138939.png button on the remote control. Then press the PRESET152644.png152639.png to set the DRC.



  1. d Press SETTINGS to exit the setup menu.


141105.png Note
  • Audio dynamic range compression lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby Digital signal.

RESET menu

This allows you to initialise settings you have made in the SETTINGS menu.

  1. a Press the SETTINGS button on the remote control. “TEST TONE” appears on the status display.



  1. b Press the PRESET152716.png152711.png button on the remote control until “RESET” appears on the status display.

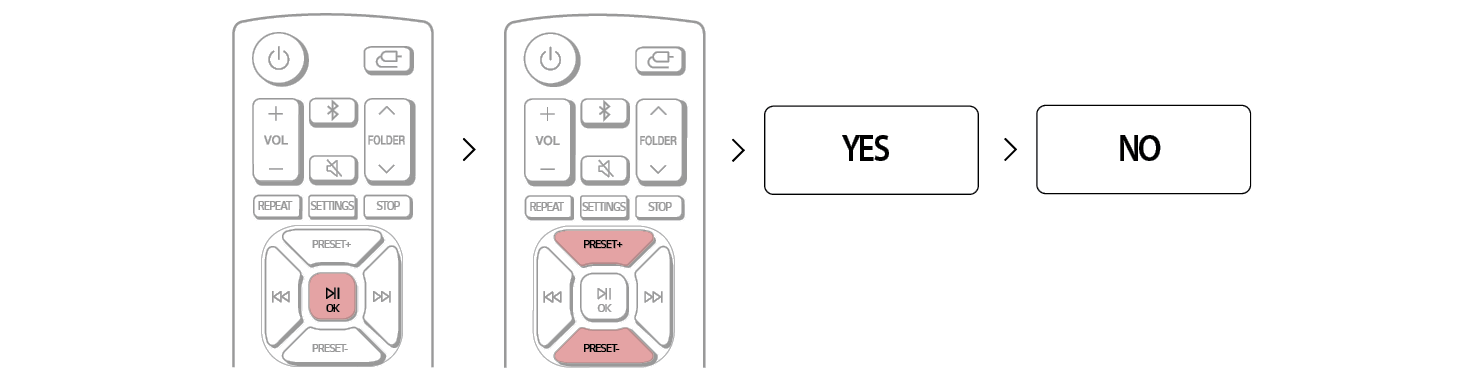

  1. c Press the OK139059.png button on the remote control. Then press the PRESET152694.png152687.png to select “YES” or “NO”.



  1. d Press SETTINGS to exit the setup menu.
