WIRELESS SOUND BAR
Soundbar Quick Guide

Sound Bar Quick Guide

Installing and using the Product

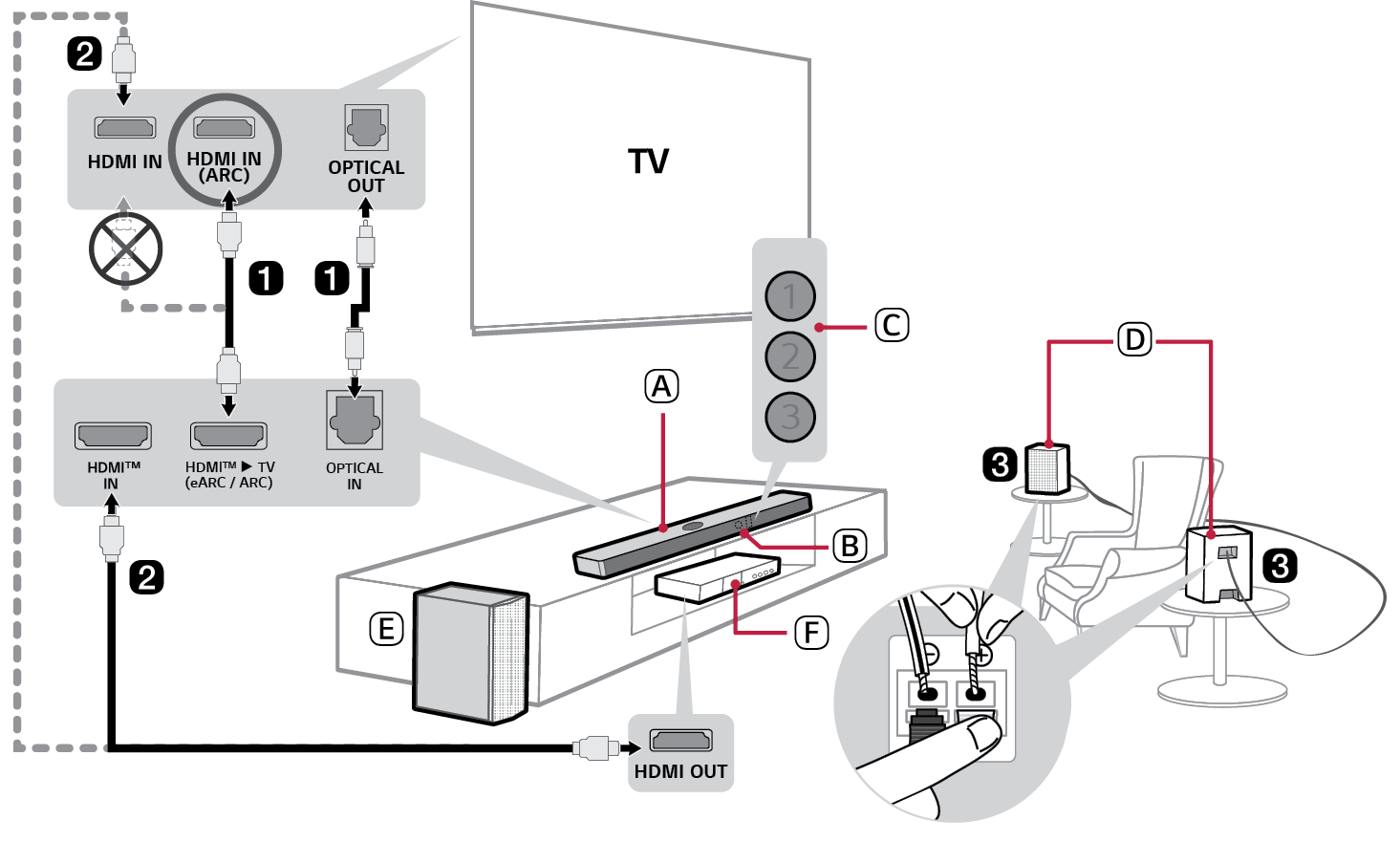

  1. a Connect the soundbar to your TV via an optical cable or an HDMI cable.



  1. A Soundbar
  2. B Remote Control Receiver
  3. C Status LED (ABC)
  4. D Rear Speakers (Sold separately, SPT8-S)
  5. E Wireless Subwoofer - Install it close to the soundbar.
  6. F External Device - (Blu-ray player, game console, etc.)
  7. b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the soundbar or to the TV via an HDMI cable.
  8. c If you purchased the rear speakers separately, connect the rear speakers via a speaker cable. When connecting the rear speakers, connect the black striped cable to the negative terminal of each speaker and the remaining cable to the positive terminal of each speaker.
  9. d Connect to power in the following order: wireless subwoofer [ rear speakers [ soundbar. Then, turn on the soundbar. When the connection is automatically established with the soundbar, the LEDs on the wireless subwoofer and the rear speaker will light up green. ([ See “Connecting the Product” on page 6.)
  10. e Using the product with your TV ([ See “Connecting with an Optical Cable”, “Connecting with LG Sound Sync (Wireless)”, “Connecting with an HDMI Cable”, “Connecting an external device via HDMI A” on page 29, 31, 32, 34.)
  11. A Press the Function86575.png button repeatedly until LED1 lights up white. If you are using an external device that is connected to HDMI™ IN on the soundbar, press the Function131155.png button repeatedly until LED1 lights up golden yellow.
  12. B On your TV's settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].
  13. f Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 38.)
  14. A Tap the Settings86634.png button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (86619.pngOff > 86612.pngOn)
  15. B Press the Bluetooth pair91388.png button. After a moment, LED1 and LED2 blink white.
  16. C Find and tap the product on your smartphone. The product appears as “LG NS70TY(XX)”.
  17. D When the product is connected to your smartphone via Bluetooth, LED1 and LED2 light up white.
  18. g Connecting to the LG ThinQ app ([ See “Connecting with the product via LG ThinQ app” on page 41.)
  19. A Find and install the LG ThinQ app on Google Play or App Store from your smartphone.
  20. B You can get more information regarding its use by selecting [Help] in [Setting].

Manually connecting the soundbar to the wireless subwoofer or rear speakers ([ See “Connecting the wireless subwoofer manually”, “Manual connection” on page 8, 11.)

If you see a red LED on the wireless subwoofer or rear speaker, it means that the soundbar is not connected to the speakers. If this is the case, connect them in the following order.

  1. A Press the Power91492.png button on the soundbar to turn it off.
  2. B Press the PAIRING button on the back of the wireless subwoofer or rear speaker. Check if each LED blinks green.
  • If you still see a red LED on the wireless subwoofer, press and hold the button on the back of the subwoofer again.
  1. C Press the Power91486.png button on the soundbar to turn it on.
  2. D When the connection is established, you will see a green LED light on the wireless subwoofer or rear speaker light up.

Table of Contents

Soundbar Quick Guide

2 Installing and using the Product

Installation

6 Connecting the Product

12 Setting up surround sound

Exploring the Product

17 Front

21 Back

22 Exploring Remote Control

Various settings for convenience

25 Convenient functions

26 How to change the settings

27 Sound tuning

28 Voice feedback function

Connecting to the TV

29 Connecting with an Optical Cable

31 Connecting with LG Sound Sync (Wireless)

32 Connecting with an HDMI Cable

Connecting to an External Device

34 Connecting with an HDMI Cable

37 Connecting with an Optical Cable

Using the Product as an Audio System

38 Connecting via Bluetooth

41 Connecting with the product via LG ThinQ app

41 Installing the LG ThinQ app and registering the product

Mounting the Product to a Wall

43 Checking before mounting to a wall

45 Mounting the Product to a Wall

Safety Precautions

47 Safety and Regulatory

50 Prevention of product misuse

Before Reporting Product Malfunction

54 Troubleshooting

Appendix

57 Specifications

59 Registered Trademarks and Licenses

61 Handling the Product

Installation
