Wireless Soundbar
Installing the Product with a LG TV

Sound Bar Quick Guide

Mounting the Sound bar with the TV to a Wall

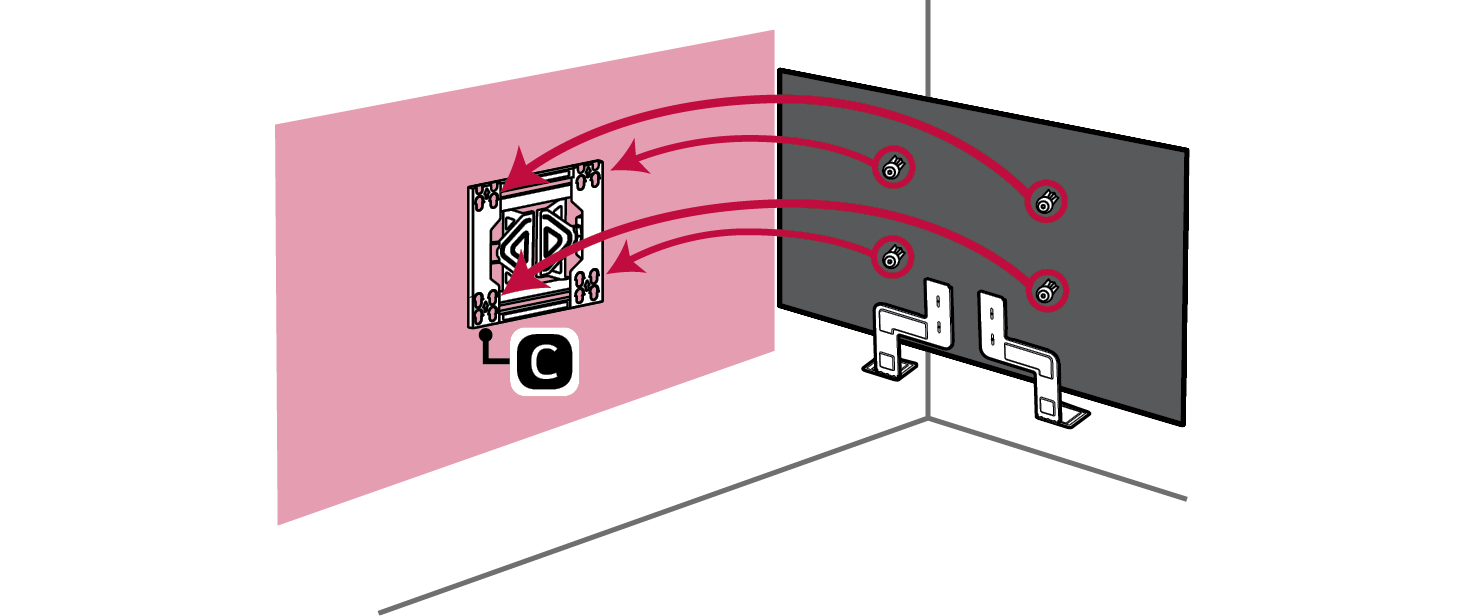

  1. a Refer to the TV's instruction manual and install the TV with the bracket attached. Refer to the TV's manual for how to attach the wall bracket on the TV.




156948.png Note
  • When installing a soundbar, the soundbar can only be installed on a TV equipped with the TV wall mount bracket below.

c


55" ~ 75" : WB24GC

86" : WB24GD


WB21LM


WB21LG

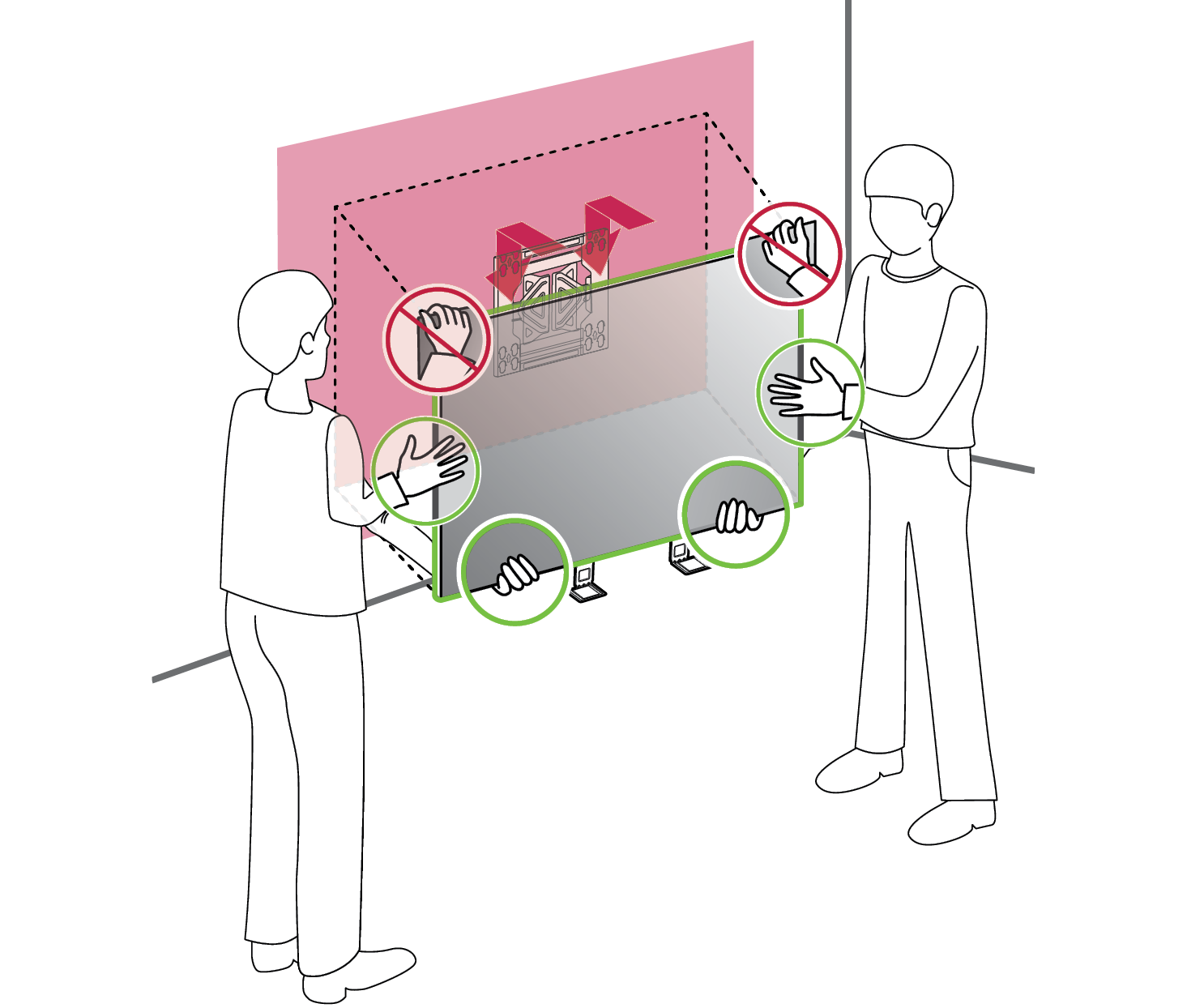

  1. b Mount the TV on the wall.

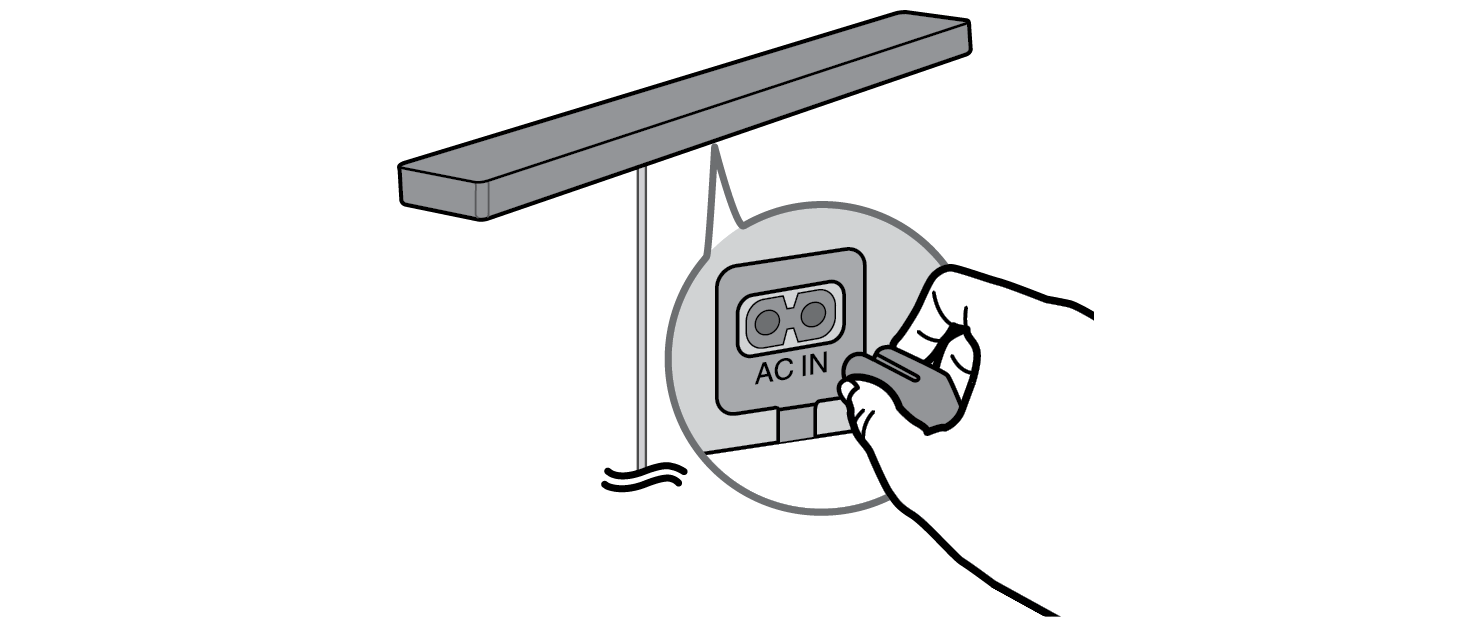

  1. c Connect the power cable to the AC IN terminal of the soundbar.

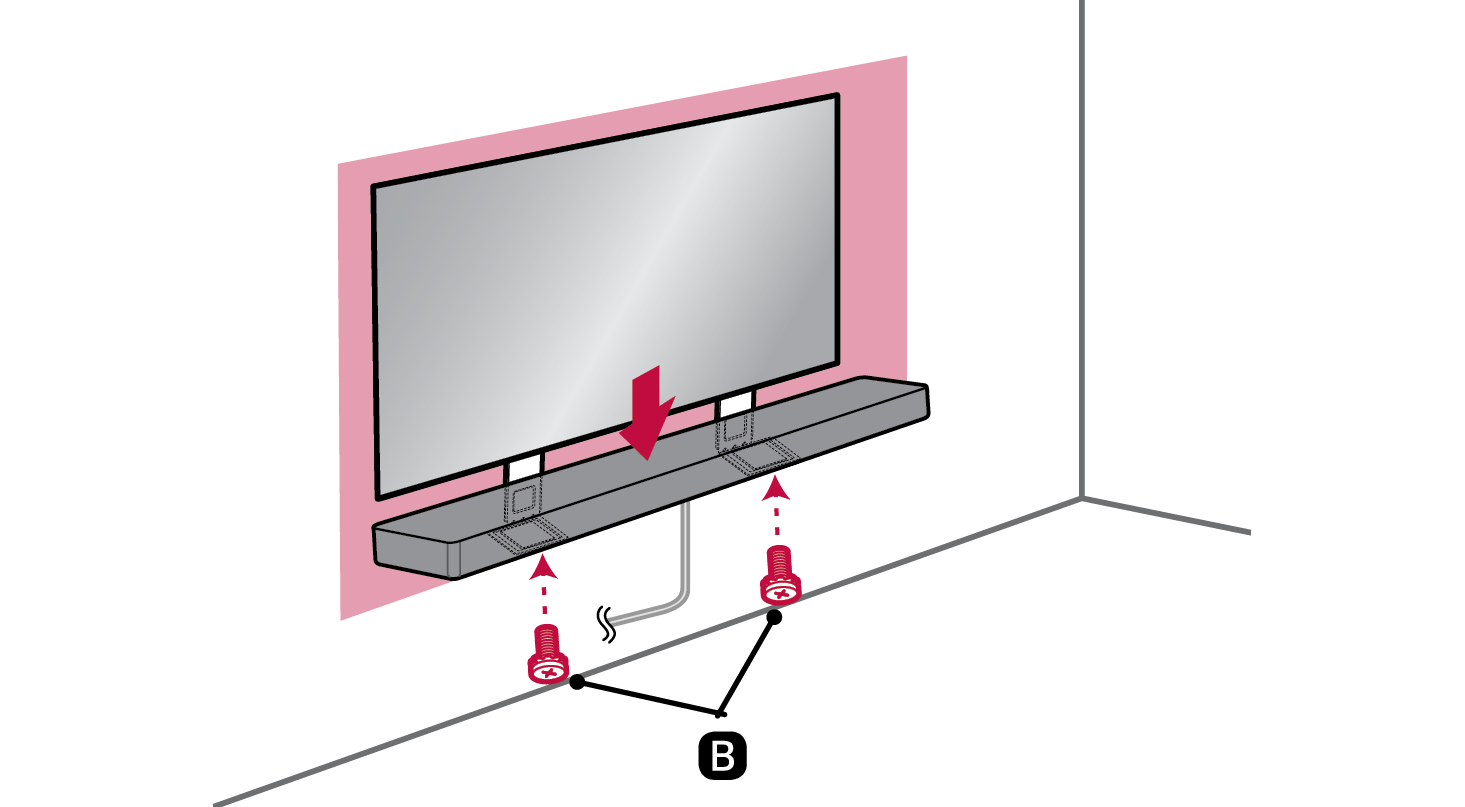

  1. d Place the soundbar on the bracket. After making sure that the TV and soundbar are centered, use two screws b (M4 x 12 mm) to secure the soundbar firmly to the bracket.

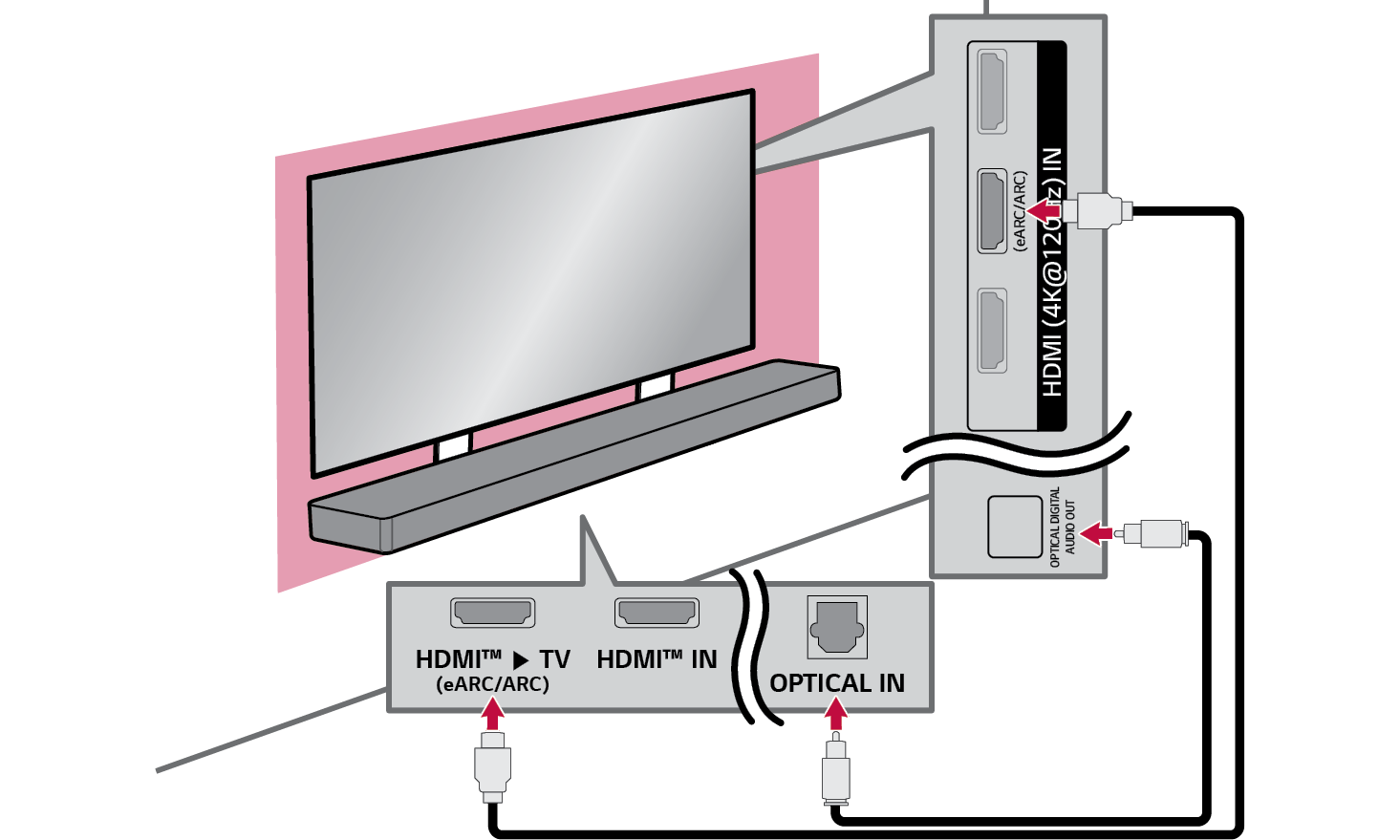

  1. e Connect the cable connected to the soundbar to the TV. Connect the soundbar and TV using an HDMI cable or optical cable.




158779.png Note

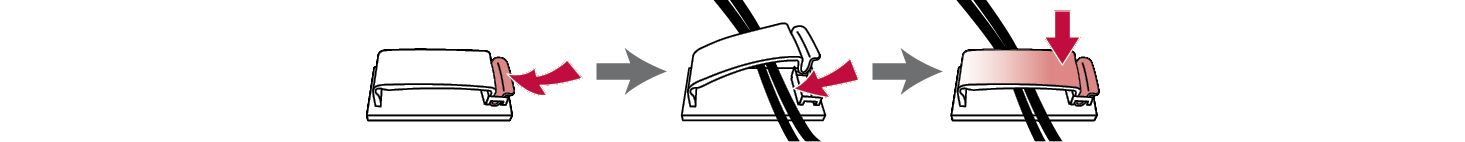

  • The cable holder provided can be used to organize the cable.
