Wi-Fi Soundbar
Mounting the Product to a Wall

Sound Bar Quick Guide

Mounting the Product to a Wall

  1. a Find the wall bracket installation guide in the product package. Attach the two wall bracket installation guides to connect them into one.

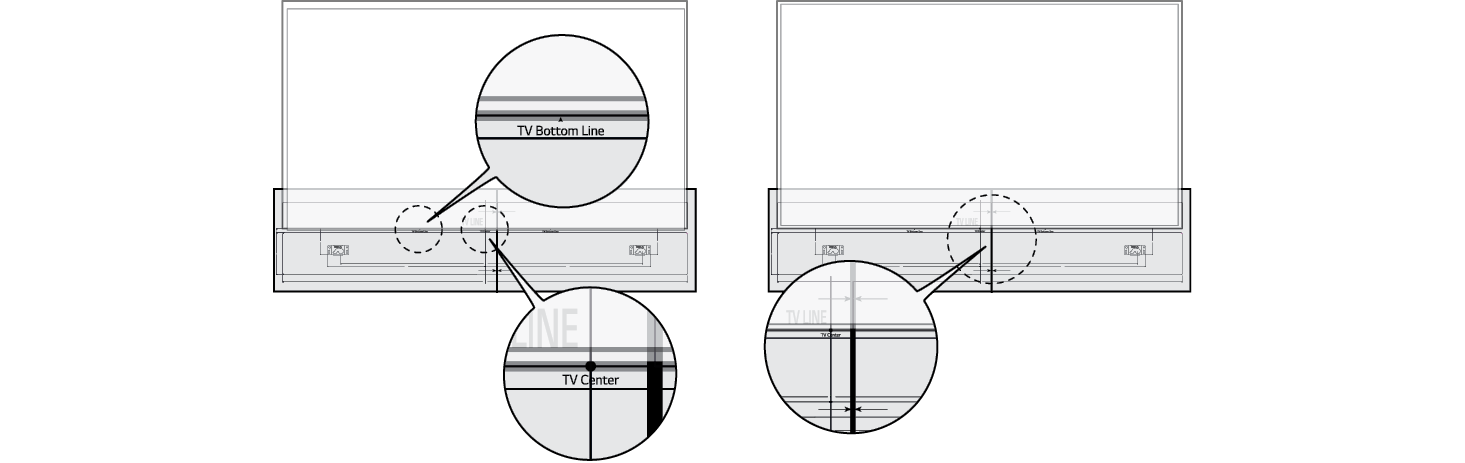

  2. b Align the “TV Bottom Line” on the wall bracket installation guide with the bottom of the TV, and attach it to the wall. Align the centre of the wall-mounted TV with the part marked “TV Center” in the installation guide.

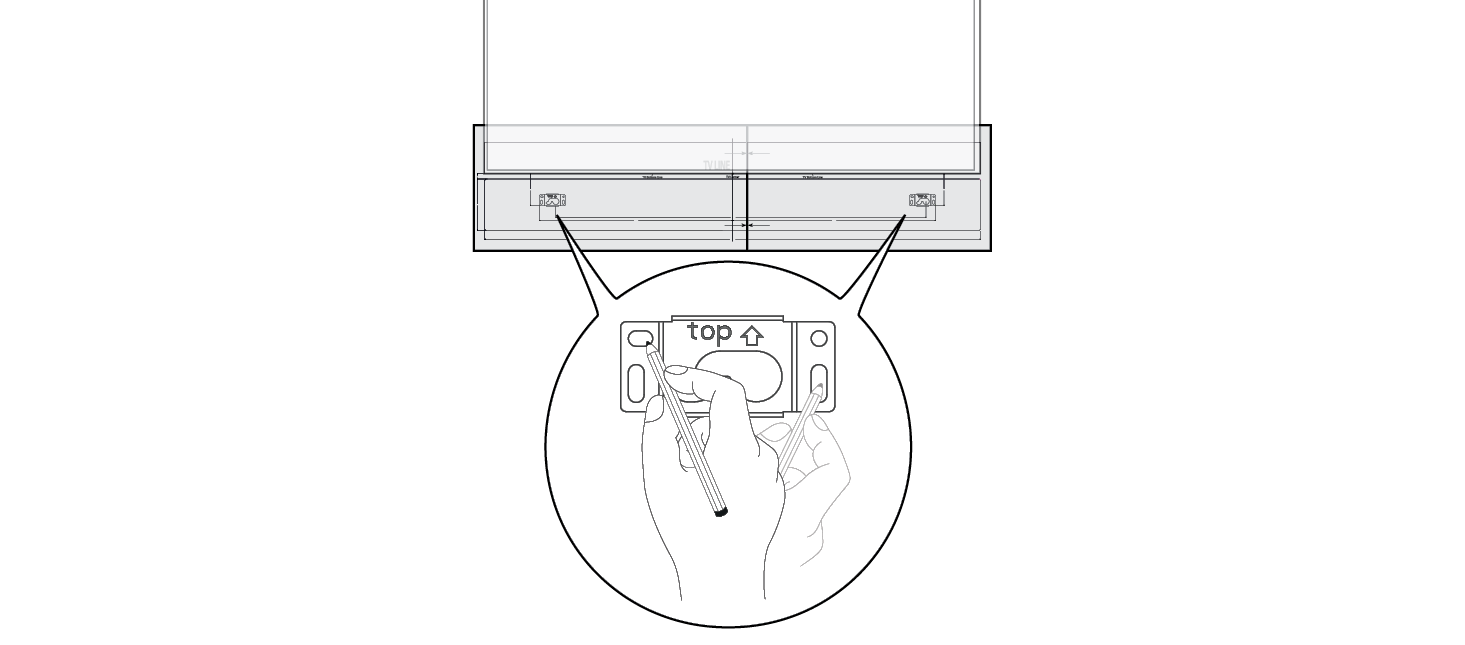

  1. c With a pen, mark screw holes on the installation guide where the wall brackets will be attached.



  1. d Drill screw holes in the marked positions on the installation guide.
  2. e Remove the wall bracket installation guide from the wall.

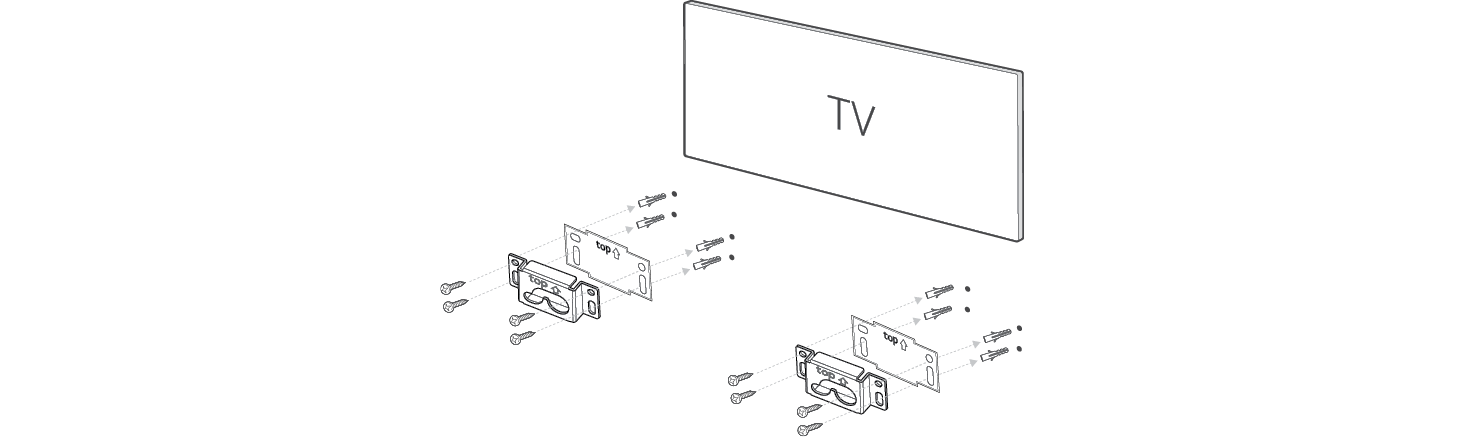

  3. f Fix the brackets firmly to the wall using the wall plugs and screws.

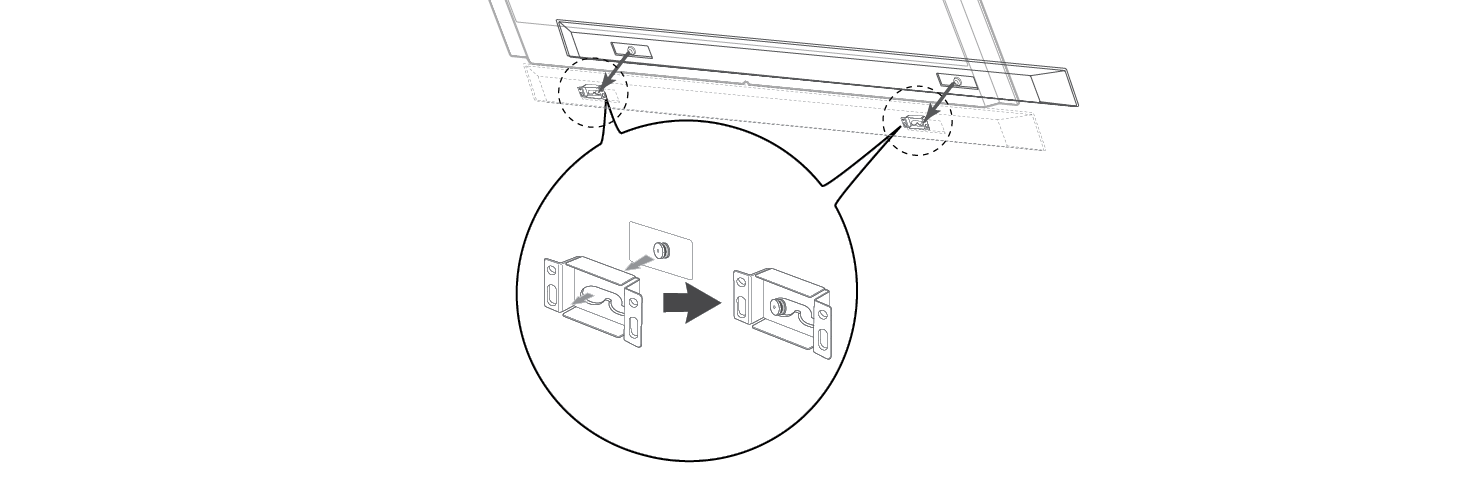

  1. g Insert the fixing hook on the back of the product and the hole in the wall mount so that it fits well.

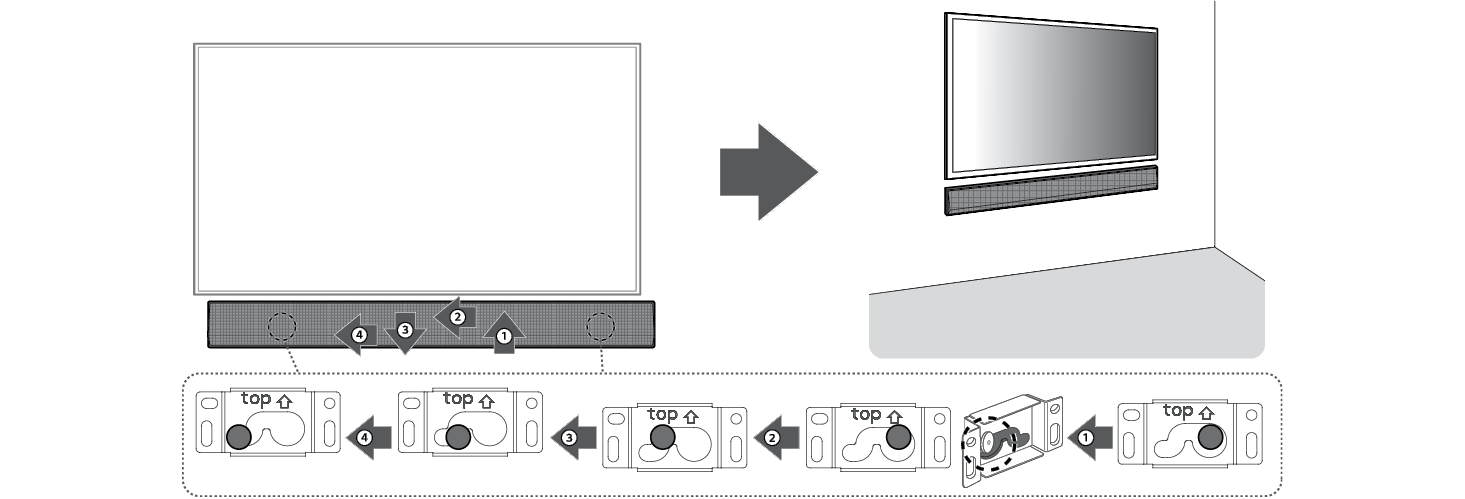

  1. h Fix the hooks of the unit on the brackets as shown below.



How to fix anchors and screws

(For installation on concrete wall)

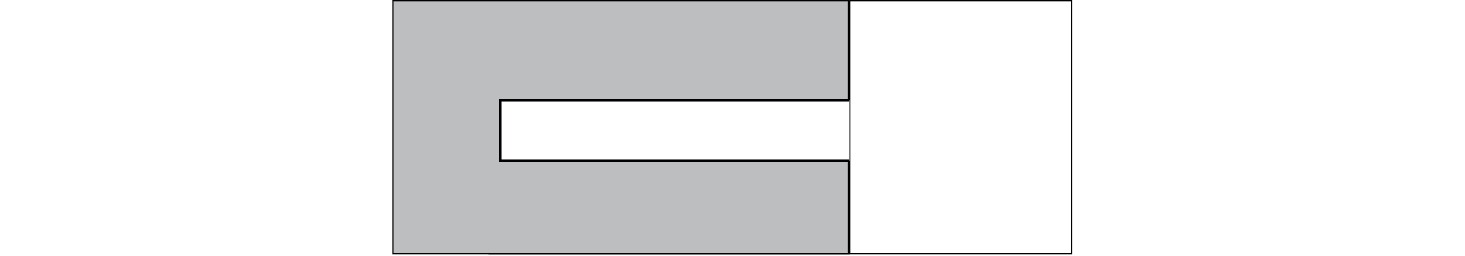

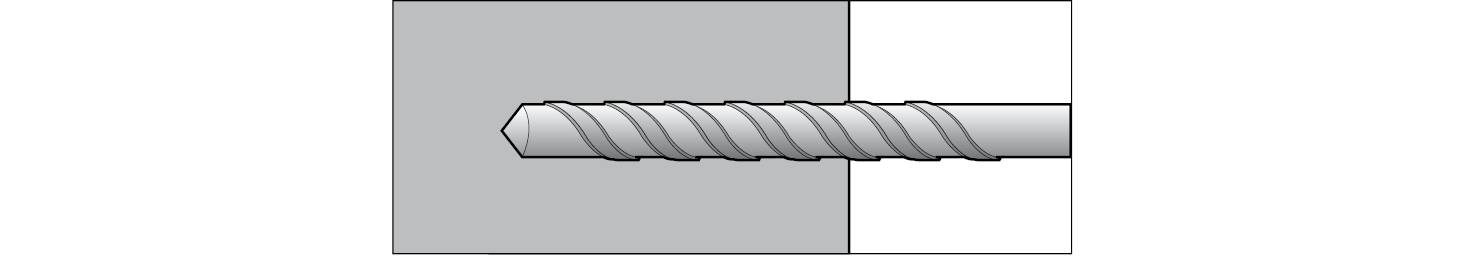

  1. a Drill holes in anchor locations with a drill bit of Ø 6 mm to a depth of 40 mm to 45 mm.



  1. b Clean the drilled holes.

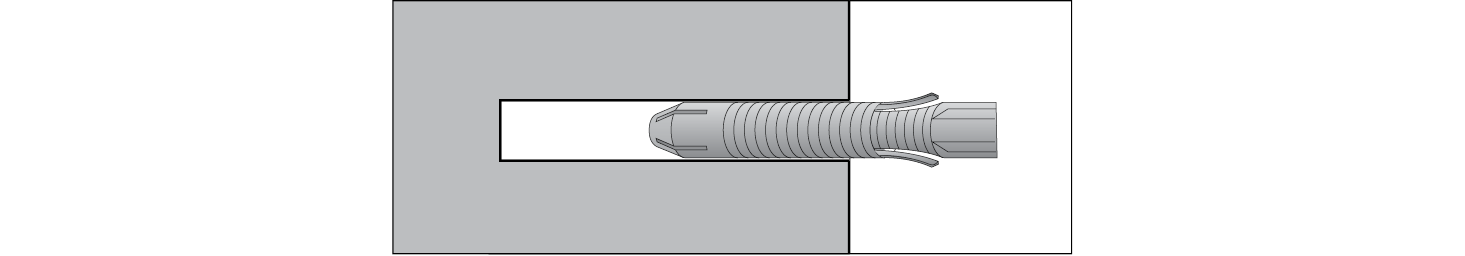

  1. c Insert the enclosed anchors for fixing the wall mount into the holes. (Use a hammer when inserting anchors.)



  1. d Push the wall mount support closely toward the wall to match the hole locations.

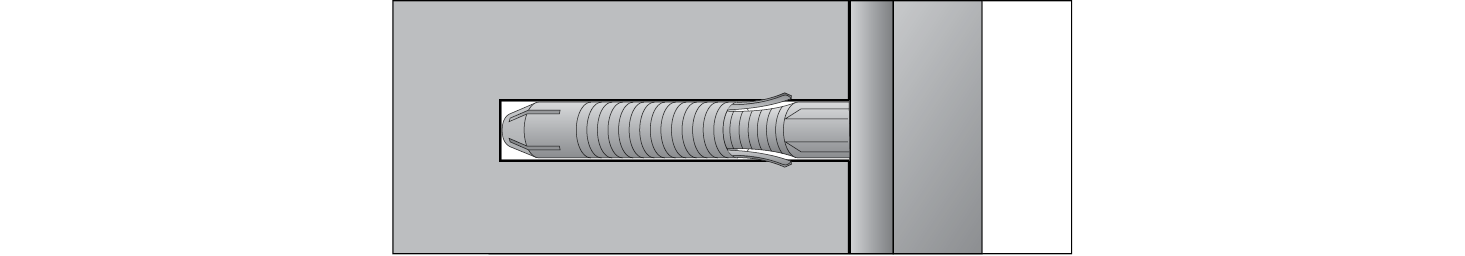

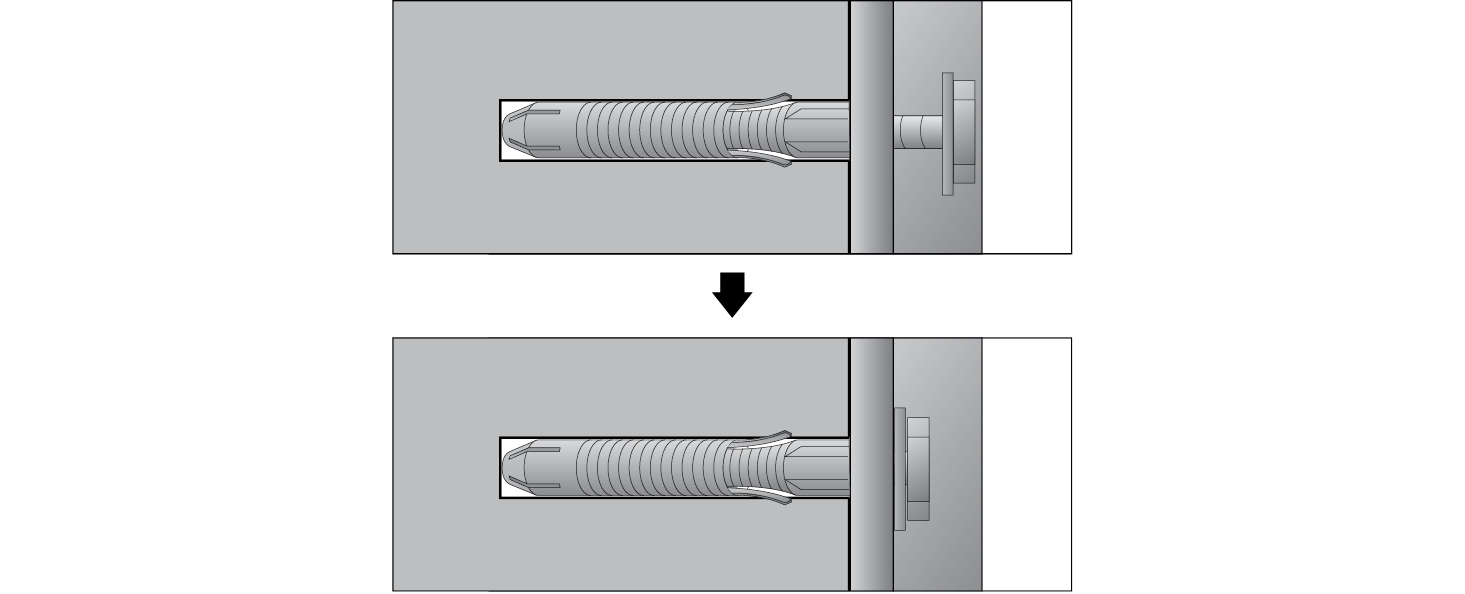

  1. e Tighten screws for fixing the wall mount to the holes. At this time, tighten the screws to a torque 12 kgf/cm 136679.png 1.




136653.png Note
  • When you mount the unit on the wall, fix it carefully so as not to drop.
  • Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
  • Professional installers should read this manual carefully to ensure proper installation.
  • Professional installers should forward this manual to customers after installation and encourage them to read and store it in a convenient place for future reference.
  • After reading the installation manual, keep it in a convenient place for future reference.
  • Ask a professional installer appointed by the store for installation of the product. Installation by someone other than a professional installer is extremely dangerous and may result in personal injury.
  • Do not install the product in an unstable site that cannot withstand its weight. If the installation site lacks sufficient rigidity, the product may fall and cause personal injury.
  • Contact a professional installer appointed by the store prior to moving or replacing the product after installation. Installation is a technical task and safety issues may arise if an individual attempts to install or move the product personally.
  • Do not hang on the product or subject it to severe impact after installation. Doing so may cause the product to fall and cause personal injury.


136629.png Note
  • When installing the product on a wall, do not hang the power line or signal cables from the back of the unit. This can damage the cords, resulting in a fire, electrical shock or malfunction of the product.
  • Install the product according to the instructions in the installation manual. Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage.
  • Be sure to have at least two people when installing the product or adjusting the product’s height. Attempting to perform installation or adjustments personally may result in personal injury or damage to the product.
  • Make sure a wall is available prior to proceeding with installation. Make use of the anchors and screws provided with the product. Use of any unauthorised anchors or screws may not support the product's weight, which poses safety risks.
  • When drilling in the wall for installation, be sure to use drill bits and drills of the specified diameter. Follow the instructions for the hole depth. Drilling and installing the product in ways other than specified in the installation manual may result in an unstable installation and potential safety issues.
  • Do not wipe the product with a wet towel or use any heating equipment or humidifier under the place where the product is installed. Liquid water or vapor may enter the product and excessive heat may cause fire, electric shock, or malfunction.
  • Do not install the product near a fire sprinkler or detector, a place where vibration or shock may occur or near a highvoltage wire or power source.
  • Unplug the product’s power cord from the wall outlet before installing. Installing the product while the power cord is plugged in may result in electric shock or fire.
  • Do not install the product with bare hands. Be sure to wear work gloves. Attempting installation without work gloves may cause personal injury.
  • Do not install this unit upside down. It can damage the parts of this unit or be the cause of personal injury.
  • Do not hang onto the installed unit and avoid any impact to the unit.
  • Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may result in an injury or damage to the product.
  • When the unit is installed on a wall, please make sure that a child does not pull any of connecting cables, as it may cause it to fall.

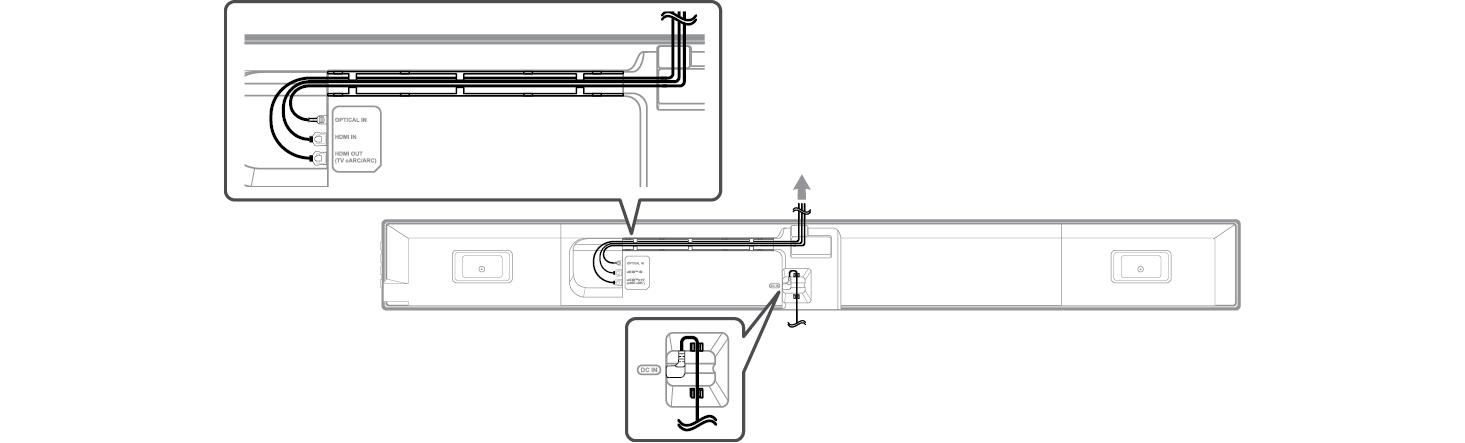

Organising cables

There is a groove on the back of this unit to organise cables.

Organise the cables connected to this device as shown below.




136582.png Note
  • After all connections are completed, you can arrange cables as needed.
  • We recommend to use the HDMI cable supplied with this product. If another HDMI cable is used, it may not be possible to arrange it with this product.
