WIRELESS SOUND BAR
Installation

Sound Bar Quick Guide

Connecting the Product

You can enjoy a richer sound by connecting the sound bar to the wireless subwoofer.

Connecting the wireless subwoofer automatically

After completing installation, the wireless subwoofer will automatically be connected to the sound bar. Connect the sound bar to the subwoofer in the following order.

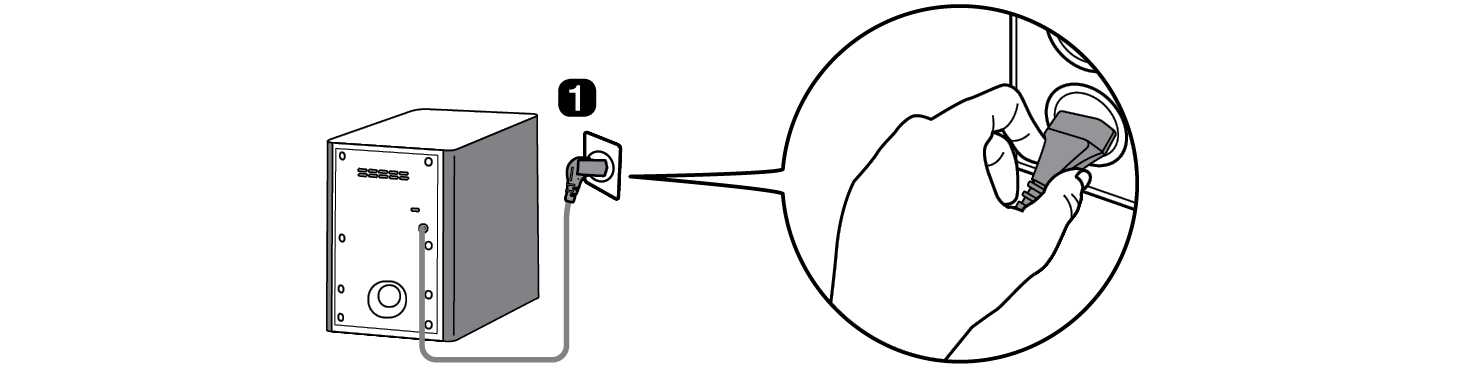

  1. a Plug the power cable connected to the wireless subwoofer into an outlet.

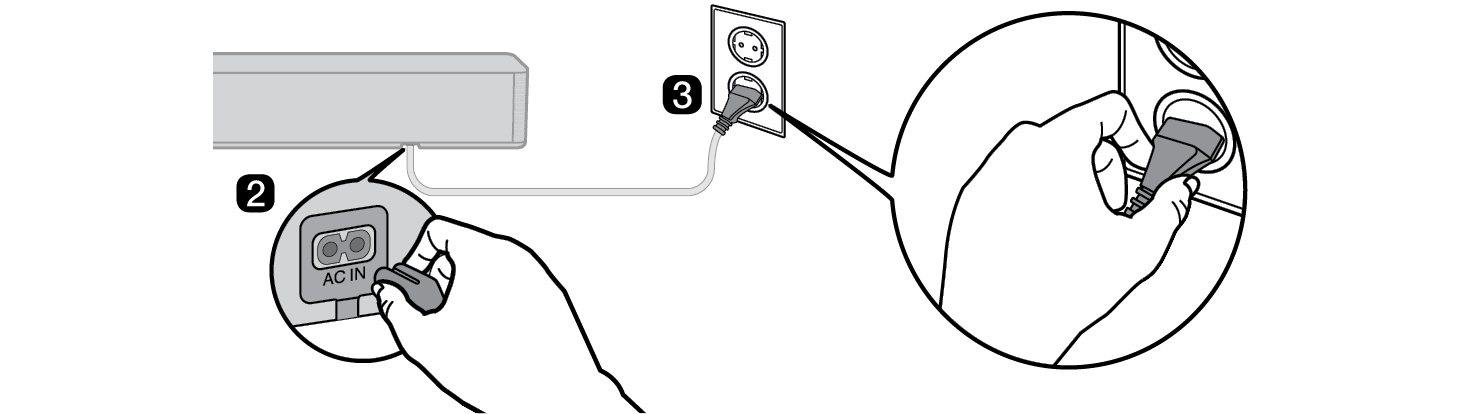

  2. b Plug the power cable into the sound bar.
  3. c Plug the power cable connected to the sound bar into an outlet.




  1. d When the connection is automatically established, you will see the LED on the front of the wireless subwoofer light up green.

Checking the connection with the LED on the front of the wireless subwoofer

You can check the connection status by looking at the LED on the front of the wireless subwoofer.

LED Colour

Status

Blinking green

Connecting in progress

Green

Connected successfully

Red

Bad connection, or the subwoofer is in standby

Off

Power cable not connected

Connecting the wireless subwoofer manually

If you see a red LED on the front of the wireless subwoofer, it means that the sound bar is not connected to the subwoofer. If this is the case, connect them in the following order.

  1. a Press the Power108302.png button on the sound bar to turn it off.
  2. b Press the PAIRING button on the back of the wireless subwoofer. Check if the LED on the front of the subwoofer is blinking green. If you still see a red LED on the wireless subwoofer, press and hold the button on the back of the subwoofer again.



  1. c Press the Power108272.png button on the sound bar to turn it on.
  2. d When the connection is established, you will see the LED light on the front of the wireless subwoofer light up green.


112923.png Note
  • Install the sound bar as close to the wireless subwoofer as possible. The closer the distance between the sound bar and the wireless subwoofer, the better the sound quality.
  • Please ensure there are no obstacles between the sound bar and the wireless subwoofer.

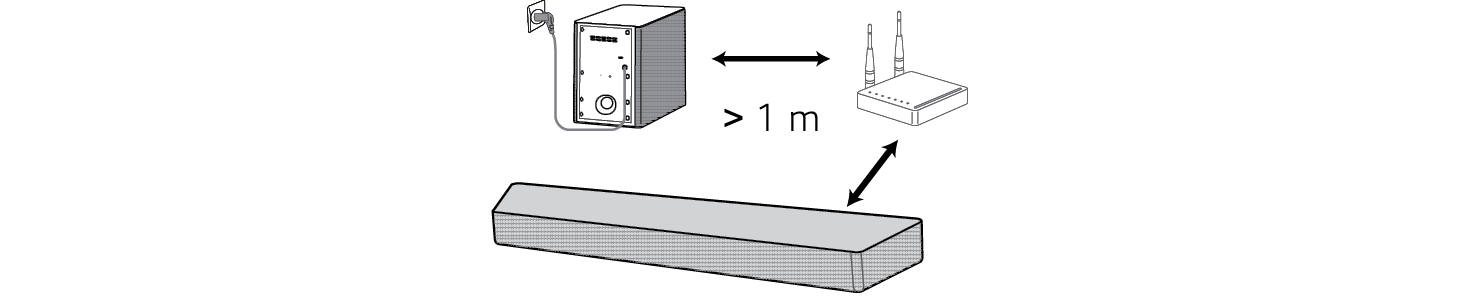

  • To prevent wireless interference, maintain a distance of at least 1 m between the sound bar or the wireless subwoofer and any peripheral devices that generate strong electromagnetic waves (ex. wireless routers, microwave ovens, etc.).


Setting up surround sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects, you can hear the following difference.

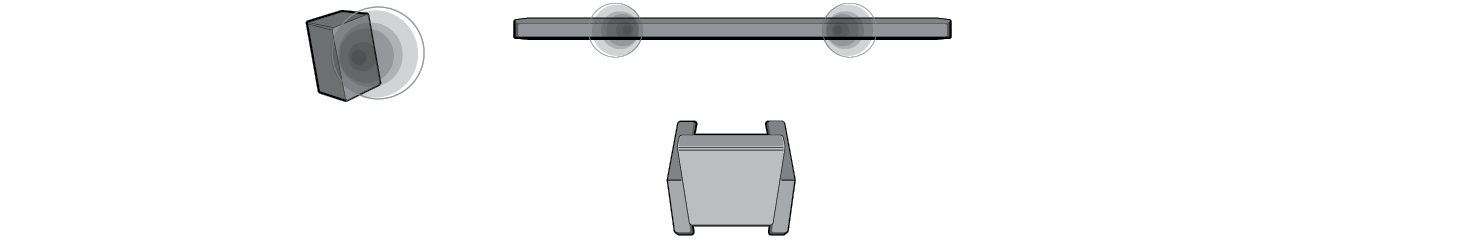

When the surround sound is off

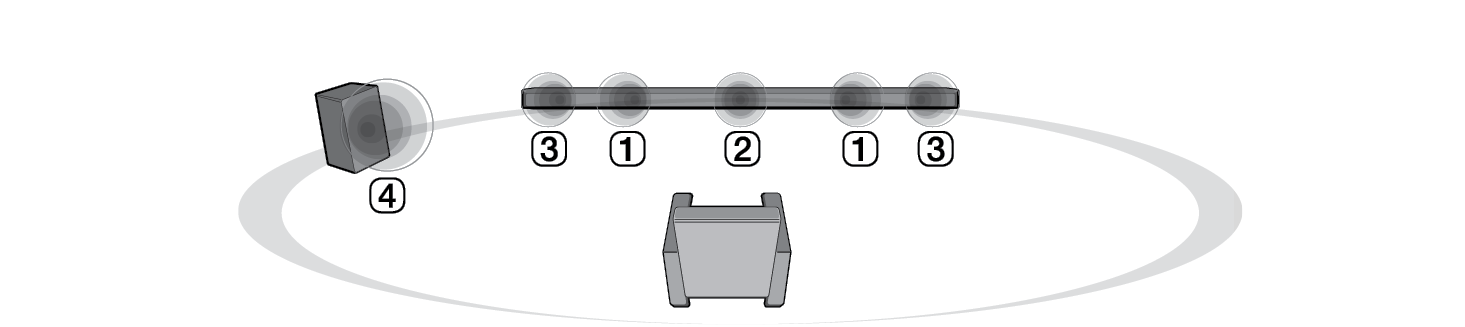

When the surround sound is on



112904.png Note
  • Speaker positions are as follows.
  1. A Front speakers
  2. B Centre speaker
  3. C Surround (Side) speakers
  4. D Subwoofer

Turning surround sound on/off

  1. a Press Settings90136.png button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.



  1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the surround sound setting. You can see the status of the surround sound, “OFF-SURROUND” or “ON-SURROUND”.



  1. c While the “OFF-SURROUND” or “ON-SURROUND” is scrolling in the status display, press Up/Down button to turn on or off the surround sound.



Speaker sound based on input channels

Sound Effects

Input

Output

AI SOUND PRO

Sound customised with artificial intelligence

2.0 channels


5.1 channels or more


STANDARD

You can enjoy optimised sound

2.0 channels


5.1 channels or more


CINEMA

Cinematic 3D sound

2.0 channels


5.1 channels or more

CLEAR VOICE

Voice sound clear, improving the quality of voice sound

2.0 channels


5.1 channels or more


SPORTS

Realistic sound like in a stadium

2.0 channels


5.1 channels or more


MUSIC

You can enjoy more good sound for music source

2.0 channels


5.1 channels or more


GAME

Optimised sound for game

2.0 channels


5.1 channels or more


DTS VIRTUAL: X

Sound with immersive and cinematic surround

2.0 channels


5.1 channels or more

BASS BLAST (BASS BLAST+)

Sound with reinforced bass

2.0 channels


5.1 channels or more
