Sound Bar Quick Guide

Using the Wireless Party Link

You can connect multiple speakers in the LG XBOOM app's Wireless Party Link. There are two ways for using the Wireless Party Link: Dual mode and Multi mode.

Dual mode

Wireless Party Link Dual mode lets you enjoy stereo sound with the same two speakers.

1. a Connect the speaker and a smartphone first. ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 10.)
2. b Tap the Wireless Party Link in the LG XBOOM app.
3. c Tap the Dual mode and connect another speaker following the instructions.

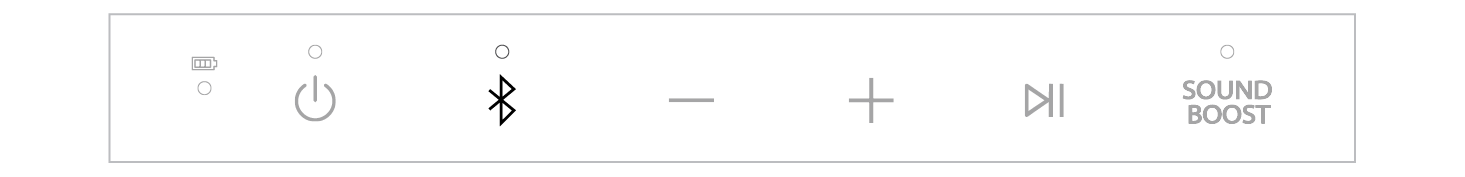

4. d You can see the Dual mode LED on the speakers.

• Main speaker: Bluetooth LED turns on and output Left channel sound.
• Other speaker: Bluetooth LED turns off and output Right channel sound.

(Main speaker)

(Other speaker)

Multi mode

Wireless Party Link Multi mode lets you enjoy more powerful sound with multiple speakers.

1. a Connect the speaker and a smartphone first. ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 10.)
2. b Tap the Wireless Party Link in the LG XBOOM app.
3. c Tap the Multi mode and toggle the function on.
4. d Search for nearby speakers and select the speakers you want to connect to.
5. e You can see the Multi mode LED on the speakers.

• Main speaker: Bluetooth LED turns on and the speaker outputs sound.
• Other speakers: Bluetooth LED turns off and speakers output sound in sync with the main speaker.

(Main speaker)

(Other speaker)

Note

The Main speaker connects only one Bluetooth device. When using Dual/Multi mode to connect multiple speakers, the multi phone pairing connection is not supported. When you turn the speakers off and on again, the speakers do not automatically reconnect. You can only use the Main speaker for calls or voice commands. If you connect a 3.5 mm stereo cable in Dual/Multi mode, Dual/Multi mode is canceled and then change to AUX function. When you connect multiple speakers in Dual/Multi mode in AUX function, it will change to Bluetooth function. To change the connected Bluetooth device in Dual/Multi mode, press and hold the Bluetooth button for 2 seconds. When you hear a beep sound and the Bluetooth LED blinks, connect to the desired Bluetooth device. Keep the distance between the speakers as close as possible each other. Depending on the network environment, this function may not work well. The screen of a device such as a TV and the sound from the speaker may not match. When multiple speakers are connected in Multi mode, volume and EQ linkage between the Main speaker and Other speakers is not available.

Interworking multiple speakers

This speaker interworks with other LG Bluetooth speakers such as XG9Q/XG7Q/XG5Q and XO3Q.

Dual mode	Same model (e.g. XG7Q/XG7Q) Main/Other
Volume	O
EQ	O
Lighting	O
Auto Power Management	O
Sleep Timer	O

Multi mode	Same series (XG9Q/XG7Q/XG5Q) Main/Other
Lighting	O
Auto Power Management	O
Sleep Timer	O

Multi mode	Other series (XG9Q/XG7Q/XG5Q/XO3Q) Main/Other
Lighting	X
Auto Power Management	X
Sleep Timer	O
