Installing and using the Product

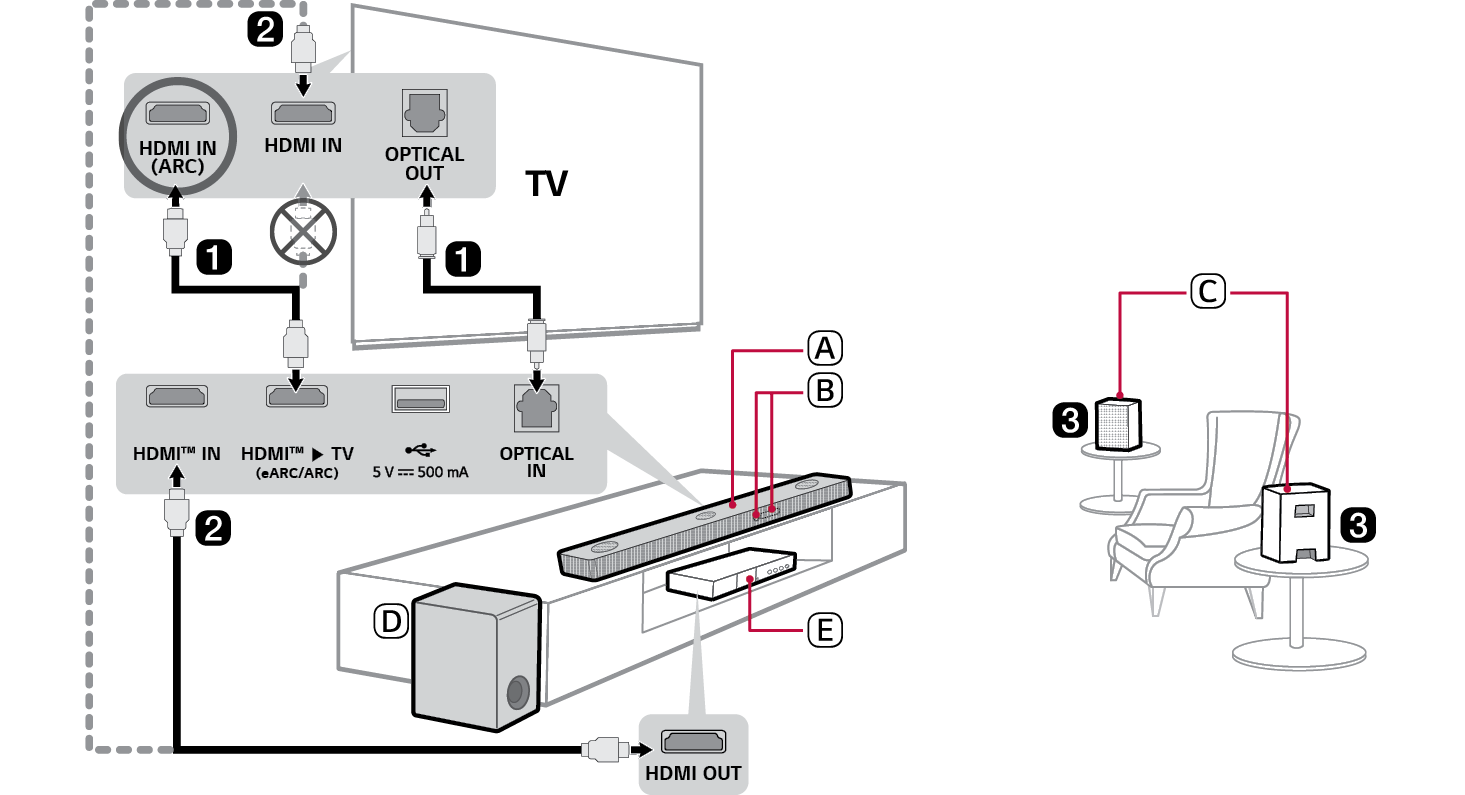

  1. a Connect the soundbar to your TV via an optical cable or an HDMI cable.



  1. A Soundbar
  2. B Remote Control Receiver / Status Display
  3. C Wireless Rear Speakers
  4. D Wireless Subwoofer - Install it close to the soundbar.
  5. E External Device - (Blu-ray player, game console, etc.)
  6. b If you are using an external device (ex. Set-top box, Blu-ray player, game console, etc.), connect it to the soundbar or to the TV via an HDMI cable.
  7. c Connect to power in the following order: wireless subwoofer [ wireless rear speakers [ soundbar. Then, turn on the soundbar. When the connection is automatically established with the soundbar, the LEDs on the wireless subwoofer and wireless rear speakers will light up green. ([ See “Connecting the Product” on page 6.)
  8. d Using the product with your TV ([ See “Connecting with an Optical Cable”, “Connecting with an HDMI Cable”, “Connecting via Bluetooth” on page 30, 32, 34.)
  9. A Press the Function 86575.png button repeatedly until “OPT/HDMI ARC” appears on the status display.
  10. B On your TV's settings, set the output speaker to [HDMI ARC], [Optical], [LG WOWCAST], or [External Speaker].
  11. C When the TV is properly connected to the product, “OPT”, “ARC”, or “E-ARC” will appear on the status display with a sound.
  12. e Connecting the product to your smartphone via Wi-Fi ([ See “Connecting with the product via LG ThinQ app” on page 16.)
  13. A Connect your smartphone to Wi-Fi.
  14. B Install the LG ThinQ app on Google Play or the App Store.
  15. C Run the LG ThinQ app and follow the instructions.
  16. D The product will connect to your smartphone and you can control the product with LG ThinQ app.
  17. f Connecting the product to your smartphone via Bluetooth ([ See “Connecting via Bluetooth” on page 39.)
  18. A Tap the Settings 86634.png button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (86619.png Off > 86612.png On)
  19. B Press the Bluetooth pair 91388.png button. After a moment, you will see “BT READY” on the status display.
  20. C Find and select “LG_Speaker_S80TR_XXXX”.
  21. D When the product is connected to your smartphone via Bluetooth, you can see the status display change from “PAIRED” [ “Connected Bluetooth device name” [ “BT”.

Manually connecting the soundbar to the wireless subwoofer or wireless rear speakers ([ See “Connecting the wireless subwoofer and wireless rear speakers manually” on page 8.)

If you see a red LED on the wireless subwoofer or wireless rear speakers, it means that the soundbar is not connected to the speakers. If this is the case, connect them in the following order.

  1. A Press the Power 136213.png button on the soundbar to turn it off.
  2. B Press the PAIRING button on the back of the wireless subwoofer or wireless rear speakers. Check if each LED blinks green.
  • - If you still see a red LED on the wireless subwoofer or wireless rear speakers, press and hold the button on the back of the subwoofer or wireless rear speakers again.
  1. C Press the Power 136201.png button on the soundbar to turn it on.
  2. D When the connection is established, you will see a green LED light on the wireless subwoofer or wireless rear speakers light up green.
