Sound Bar Quick Guide

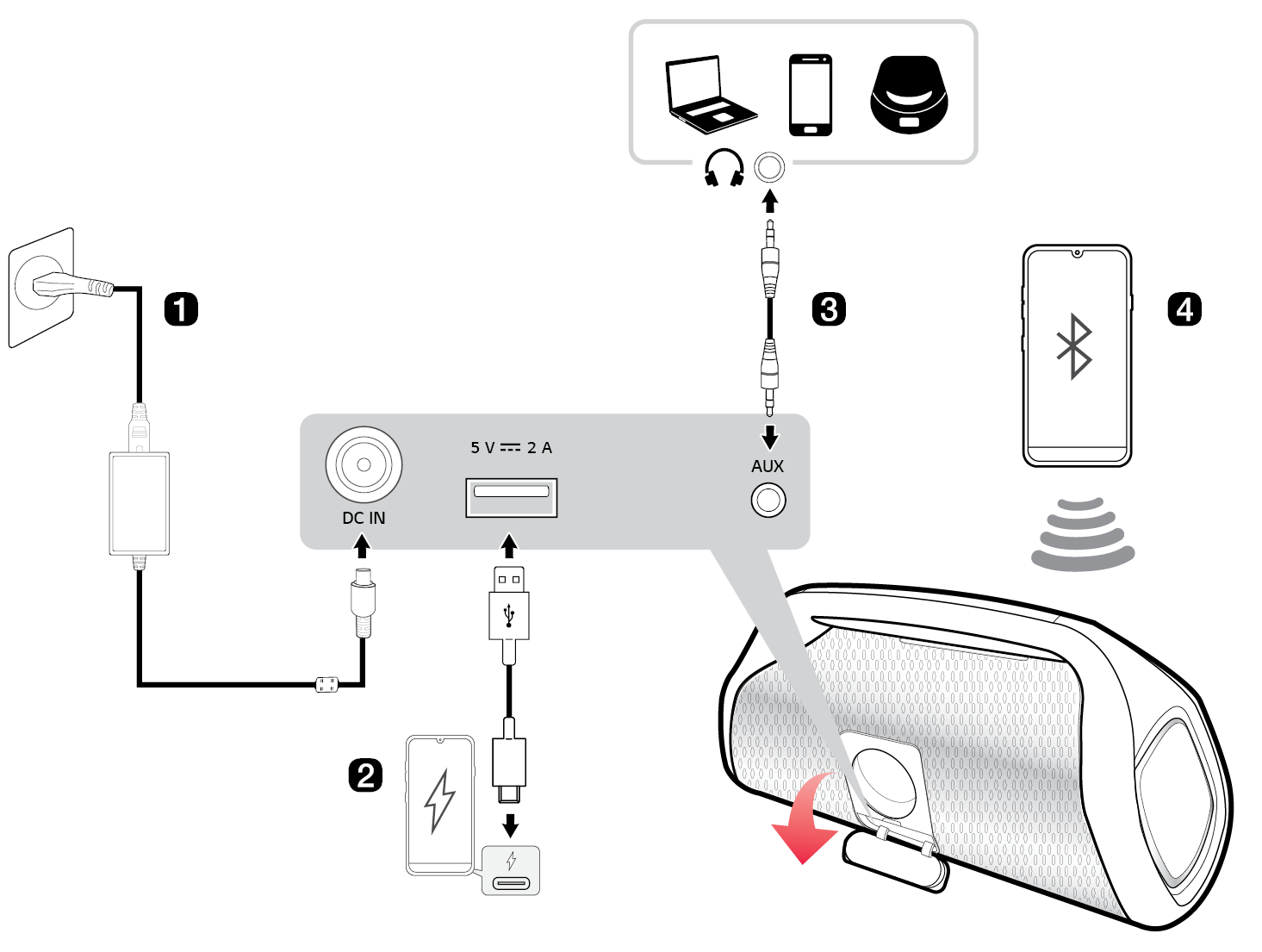

Connecting and Using the Speaker

1. a Charge the speaker before using it by opening the rear cover and connecting the speaker to the charging adapter.
2. b Charging a smartphone ([ See “Charging a smartphone” on page 25.)
3. A Press the Power button on the speaker to turn it on.

You can only charge your smartphone in Bluetooth mode.

1. B Open the back cover of the speaker and connect the smartphone to the DC OUT (5 V 0 2 A) terminal via the USB cable. The smartphone starts to be charged.
2. c Connecting to an External Device ([ See “Connecting via 3.5 mm Stereo Cable” on page 23.)
3. A Press the Power button on the speaker to turn it on.
4. B Open the back cover of the speaker and connect the external device to the AUX terminal via a 3.5 mm stereo cable.
5. C Turn the external device on and start playing.
6. d Connect the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 11.)
7. A Press the Power button on the speaker to turn it on. Bluetooth LED blinks.
8. B Press the Settings button on the smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
9. C Find "LG-XG9Q (XX)" on the device list on the smartphone and connect to it. Once the smartphone is connected via Bluetooth, the Bluetooth LED will turn on.
10. D On the smartphone, play a music of your choice.
11. e Connecting the LG XBOOM App ([ See “Installing app”, “Using the Wireless Party Link” on page 17, 19.)
12. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
13. B Run the LG XBOOM app and use more features. (EQ, Wireless Party Link, Lighting, Sleep Timer, Setting etc.)

Table of Contents

Portable Bluetooth Speaker Quick Guide

2 Connecting and Using the Speaker

Exploring the Product

5 Top

7 Back

Charge

8 Charging the Battery

9 Checking Battery Status

Connecting to Bluetooth

11 Connecting Smartphone to the Speaker via Bluetooth

14 Connecting Two Bluetooth Devices to the Speaker

15 Talking on the Phone Hands-free

16 Using Voice command

Connecting to the LG XBOOM App

17 Installing app

19 Using the Wireless Party Link

Connecting to an External Device

23 Connecting via 3.5 mm Stereo Cable

Additional Functions

24 Setting Sound Effects

25 Charging a smartphone

27 Resetting the Speaker

27 Resetting Bluetooth

28 Using Auto Power Management

29 Using Auto power - on.

29 Voice feedback function

Safety Precautions

30 Safety and Regulatory

Before Reporting Product Malfunction

33 Troubleshooting

Appendix

34 Specifications

35 Registered Trademarks and Licenses

36 Handling the Product

Exploring the Product
