Sound Bar Quick Guide

Using Easily in Order

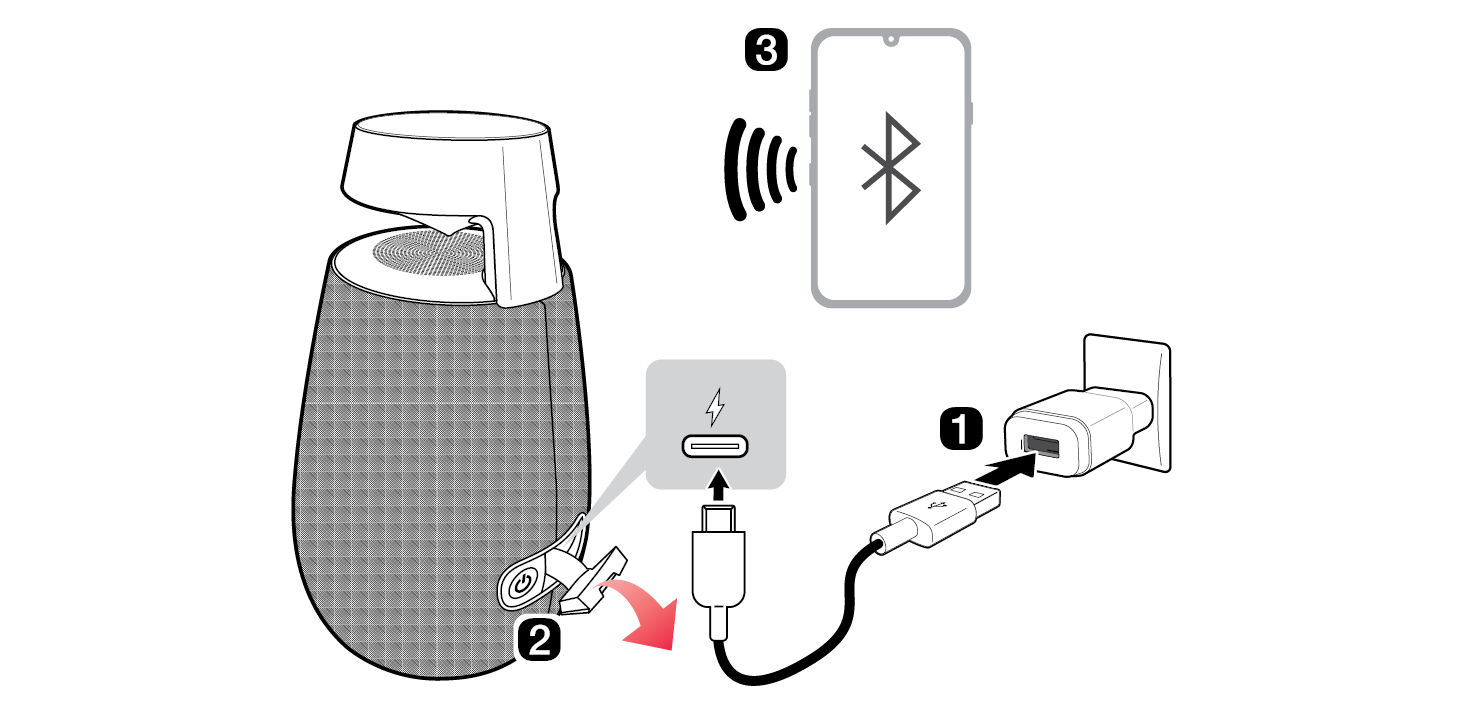

1. a Charge the speaker before using it by opening the rear cover and connecting the speaker to an AC adapter (not provided) by using the provided USB (Type C to A) cable.
2. b To use this speaker, turn it on by pressing the power button. The buttons on the top panel will light up for a few seconds.
3. c Connecting the speaker to a smartphone via Bluetooth ([ See “Connecting Smartphone to the Speaker via Bluetooth” on page 10.)
4. A Press the Power button to turn on the product. Bluetooth LED blinks blue.
5. B Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On)
6. C From the list of smartphone devices, find and tap on “LG-XO2T(XX).”
7. D Once the smartphone is connected to the product via Bluetooth, the Bluetooth LED will turn on blue. Play a desired track in the music app on your smartphone.
8. d Connecting the LG XBOOM App ([ See “Installing app” on page 15.)
9. A Find the LG XBOOM app on the Google Play or App Store and install it on your smartphone.
10. B Run the LG XBOOM app and use its functions. (EQ, Wireless Party Link, Lighting, Sleep Timer, Setting etc.)
11. e Power Saving ([ See “Power Saving Mode” on page 22.)

If there is no playback or button input for 15 minutes, the product turns off automatically. On the LG XBOOM app, you can enable or disable [Auto Power Management].

1. f Using the One Touch mode ([ See “Using the One Touch mode” on page 21.)
2. A Set your own One Touch mode in the LG XBOOM app. Follow the instructions to set the One Touch mode.
3. B Press the Lighting button for about 2 seconds to start the One Touch mode.

Table of Contents

Omnidirectional portable speaker Quick Guide

2 Using Easily in Order

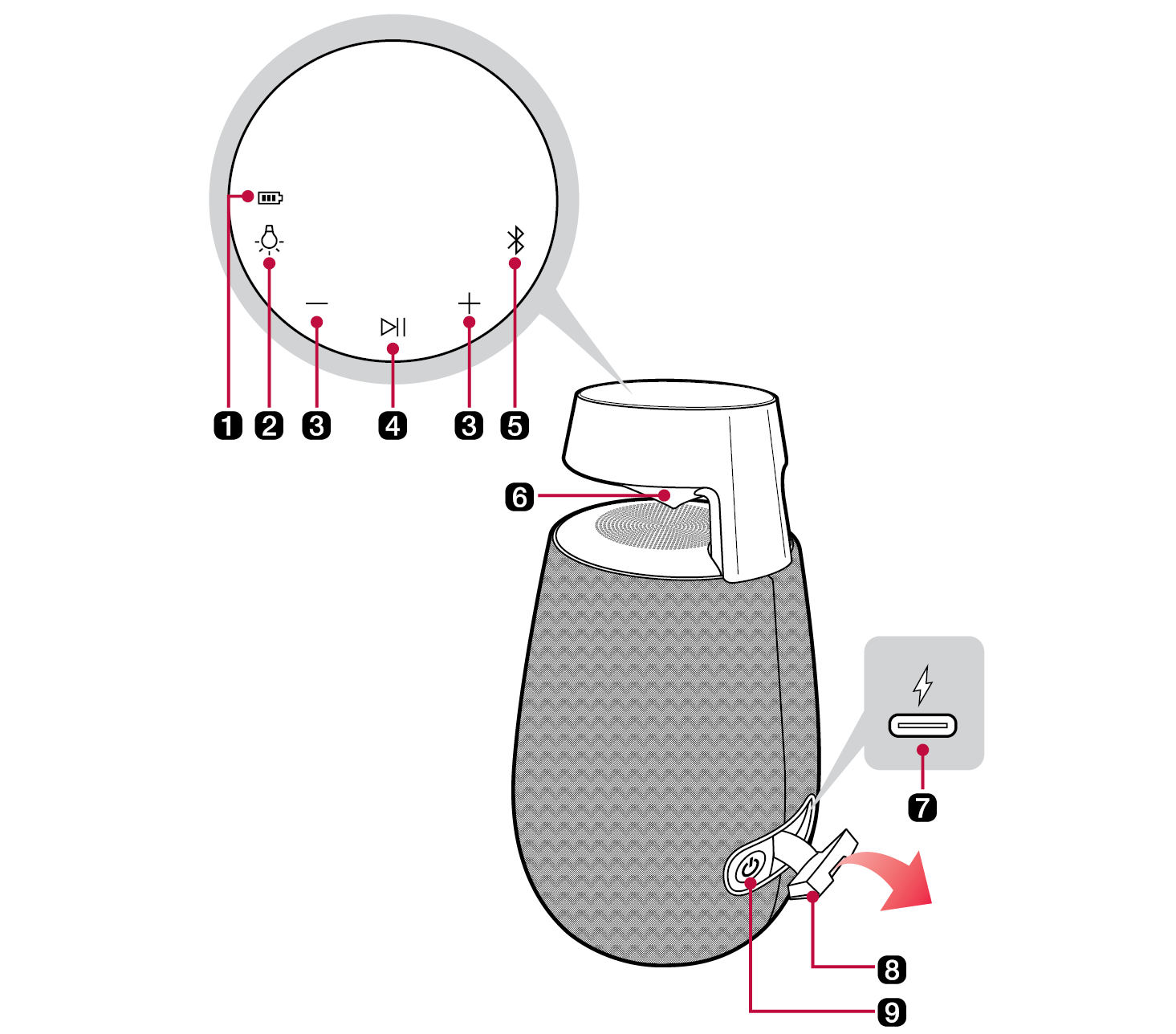

Exploring the Product

5 Top and Back

Charge

8 Charging the Battery

9 Checking Battery Status

Connecting to Bluetooth

10 Connecting Smartphone to the Speaker via Bluetooth

13 Connecting with two smartphones

Connecting to the LG XBOOM App

15 Installing app

17 Using the Wireless Party Link

21 Using the One Touch mode

Additional Functions

22 Resetting the Speaker

22 Initializing the Software

22 Power Saving Mode

23 Using Auto power - on.

23 Voice feedback function

Safety Precautions

24 Safety and Regulatory

27 Prevention of product misuse

Things to Check before Reporting Malfunction

31 Troubleshooting

Appendix

32 Product Specifications

33 Registered Trademarks and Licenses

34 Handling the Product

Exploring the Product
