Portable Bluetooth Speaker
Charge

Sound Bar Quick Guide

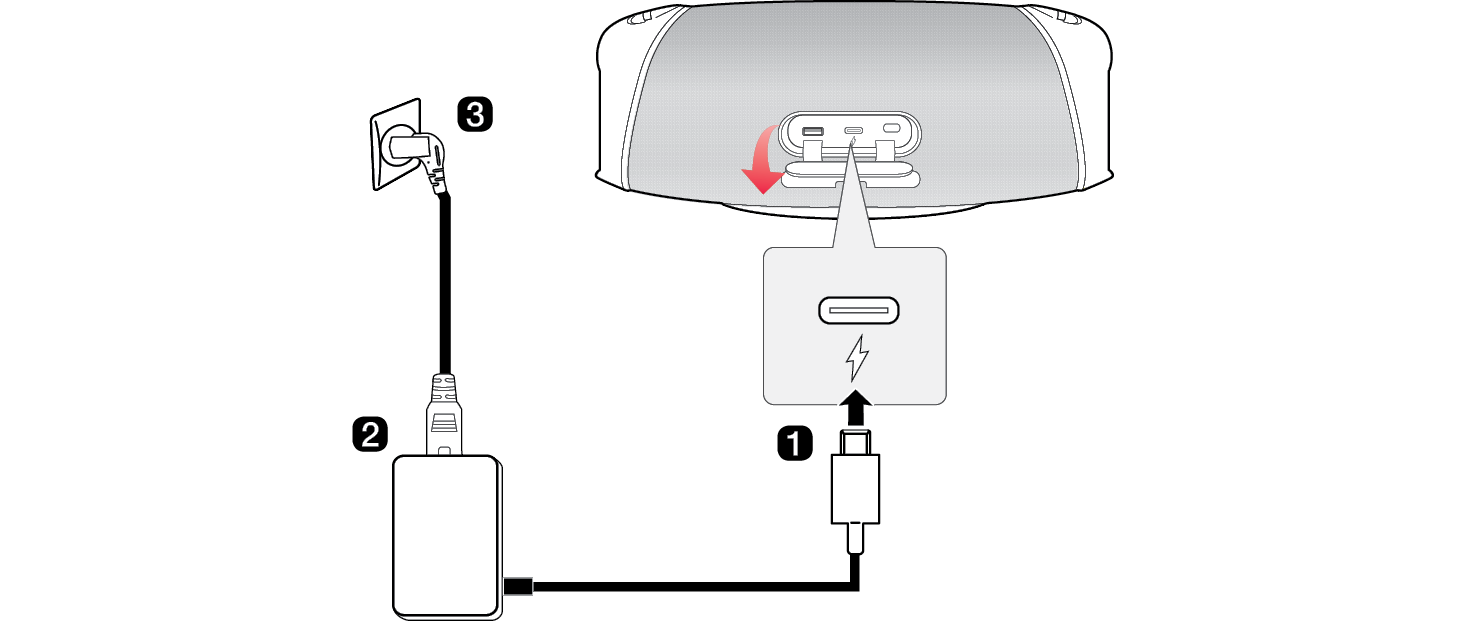

Charging the Battery

The speaker is a built-in battery. Make sure to charge the battery sufficiently before use.

  1. a Open the back cover and connect the USB cable to 141243.png(DC IN) port of the speaker.
  2. b Plug the power cable into the AC adapter.
  3. c Plug the power cable connected to the AC adapter into an outlet.




133308.png Note
  • It takes about 3 hours to fully charge the speaker. The charging time may differ depending on the battery status or the speaker operation status.
  • Once the battery is fully charged, you can use the speaker for about 15 hours.
  • Based on 50% volume, no lighting and Standard EQ. (Internal test result.) Actual usage time may vary.


> CAUTION
  • Make sure to use the provided AC adapter. Using a different AC adapter may result in malfunctioning, longer charging time or fire accident.
  • Use a USB PD adapter of 20 V, 3 A (60 W) or higher.
  • Some multi-port USB PD adapters may not have sufficient capacity for each port.
  • If charging does not occur, check the adapter specifications.
  • Use the adapter recommended by LG (refer to www.lg.com site).
