Sound Bar Quick Guide

Setting up surround sound

The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content.

For example, if you listen to music recorded in 2.0 channels with standard sound effects while the wireless rear speakers are connected, you can hear the following difference.

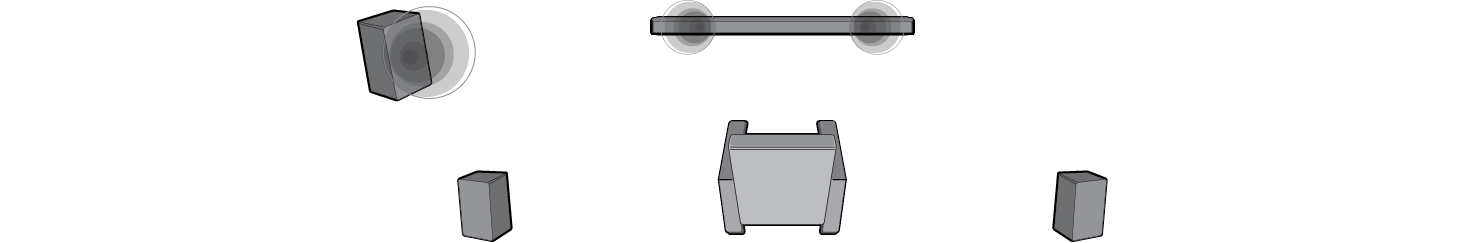

When the surround sound is off

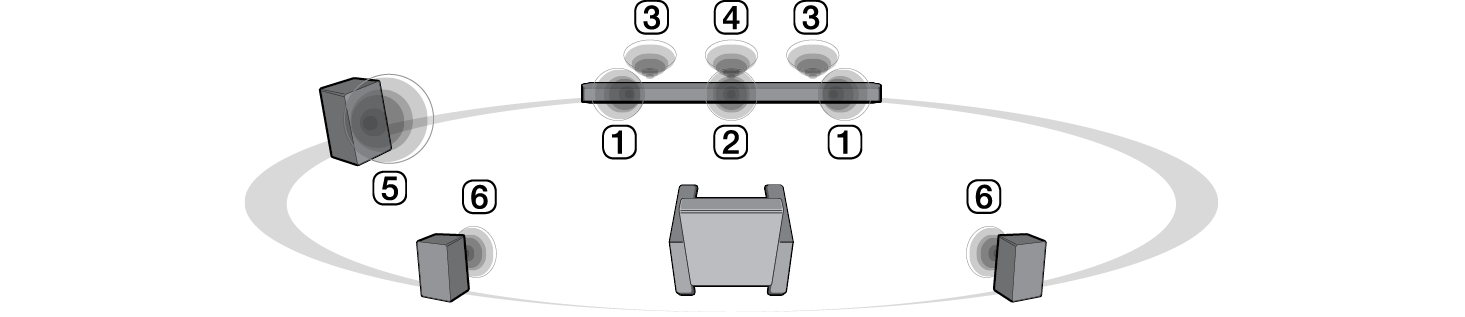

When the surround sound is on



120558.png Note
  • Speaker positions are as follows.
  1. A Front speakers
  2. B Centre speaker
  3. C Top speakers
  4. D Top centre speaker
  5. E Subwoofer
  6. F Rear speakers

Turning surround sound on/off

  1. a Press Settings90136.png button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”.

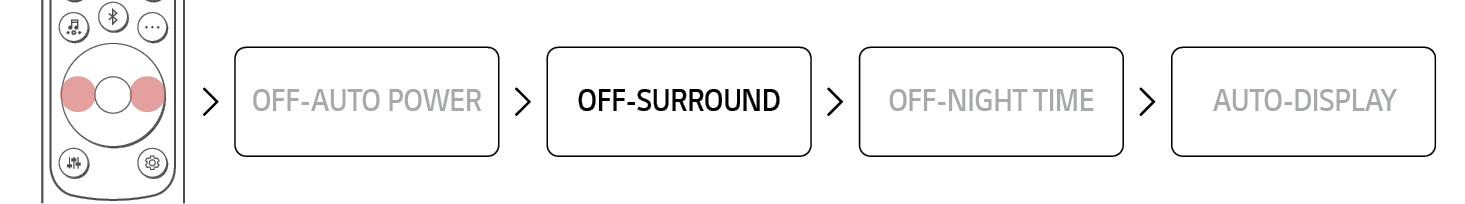

  1. b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the surround sound setting. You can see the status of the surround sound, “OFF-SURROUND” or “ON-SURROUND”.

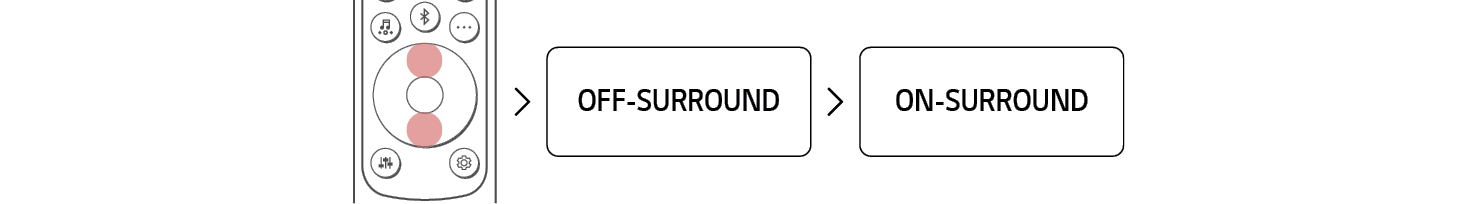

  1. c While the “OFF-SURROUND” or “ON-SURROUND” is scrolling in the status display, press Up/Down button to turn on or off the surround sound.



Speaker sound based on input channels

Sound Effects

Input

Output

Rear speakers not connected

Rear speakers connected

AI SOUND PRO

Sound customised with artificial intelligence

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels

STANDARD

You can enjoy optimised sound

2.0 channels



5.1 channels



7.1 channels or more

7.1.4 channels



CINEMA

Cinematic 3D sound

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels

CLEAR VOICE PRO

Improves the clarity of voices

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels

SPORTS

Realistic sound like in a stadium

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels

MUSIC

You can enjoy better sound optimised for music

2.0 channels



5.1 channels


7.1 channels or more

7.1.4 channels



GAME

Optimised sound for game

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels

BASS BLAST (BASS BLAST+)

Sound with reinforced bass

2.0 channels



5.1 channels

7.1 channels or more

7.1.4 channels
