Sound Bar Quick Guide

Back

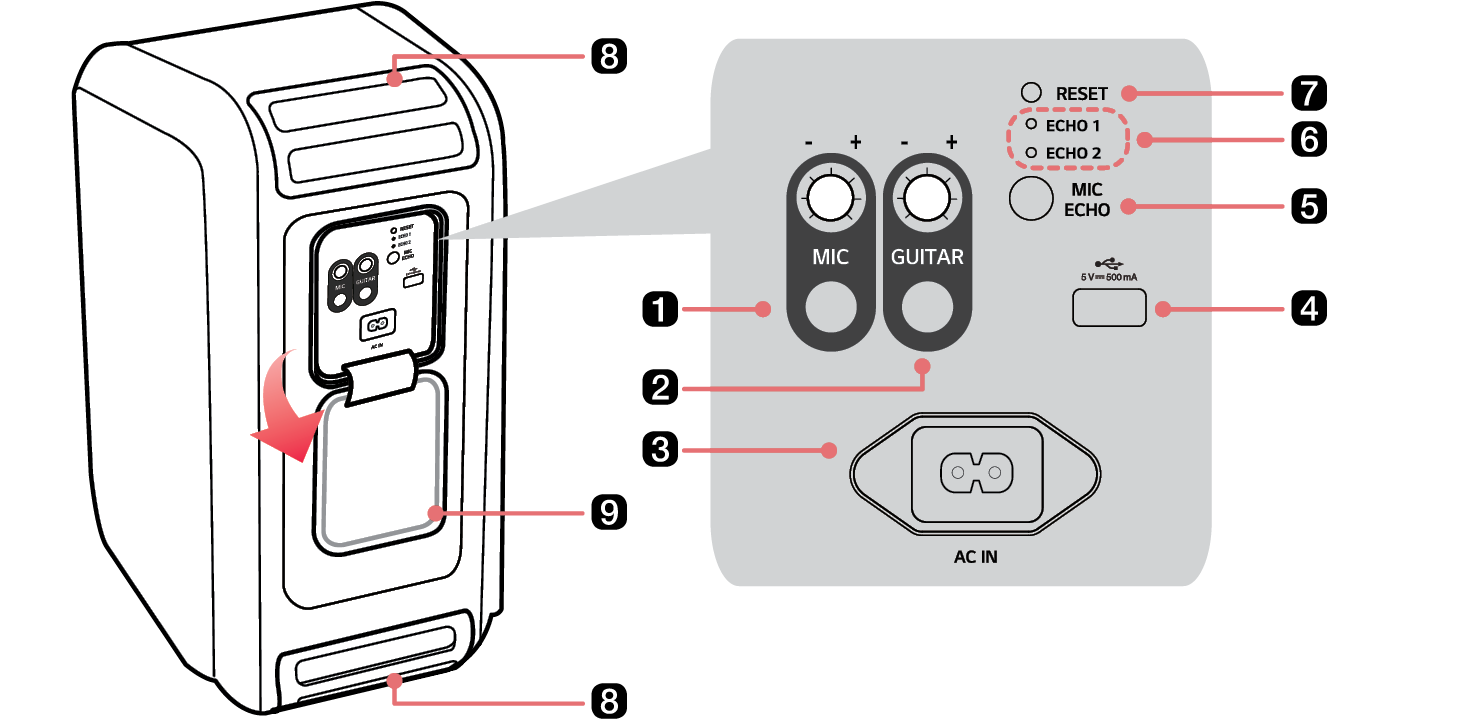

a	MIC Turns the knob to the right (+) or left (-) to adjust the Microphone sound volume. Connect a microphone to the MIC jack.
b	GUITAR Turns the knob to the right (+) or left (-) to adjust the Guitar sound volume. Connect a guitar to the GUITAR jack.
c	AC IN Plug in the power cord.
d	USB port Plug in a USB storage device to enjoy music with the product.
e	MIC ECHO Press the button to select the desired ECHO mode when the microphone is connected. ECHO mode: ECHO 1 / ECHO 2 / Off
f	ECHO LED Indicates the connection status of ECHO mode.
g	RESET When the product does not function properly, use a sharp object such as a pin to press the hole.
h	Handle Use it when carrying the product.
i	Back Cover Make sure to fully close the back cover after use. Ingress Protection: IPX4 Liquid: Protected against splashing water.

> CAUTION

Be careful not to drop the product when you carry it.
Disconnect the connected cable before carrying the product.
Do not step or sit on the product. Otherwise this product may fall down and cause personal injury.
Be careful that the product should not fall down. Otherwise it may result in malfunction and cause personal injury and/ or property damage.
Be careful not to expose the product to sunlight for a long time to prevent discolouration.
Be careful not to drop the speaker. Mechanical shock may cause deterioration of water-resistant performance.

Note

Using the back cover open may cause tremors, turn the back cover back as far as possible and fix it to the product before use.
